Engine Coolant Temperature Sensor Replacement (Radiator)

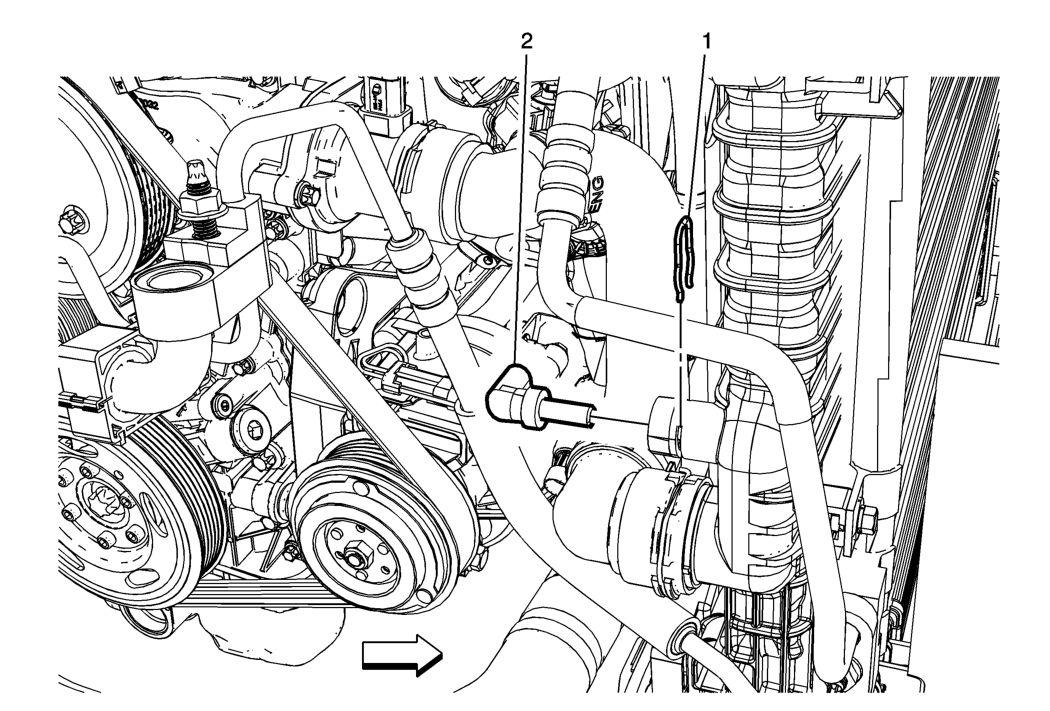

Fig 1: Engine Coolant Temperature Sensor (Radiator)
GM2790526Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Engine Coolant Temperature Sensor Retainer
2 Engine Coolant Temperature Sensor
Procedure
Disconnect the engine coolant temperature sensor electrical connector.
