Outside Rearview Mirror Remote Control Switch Replacement (Chevrolet)

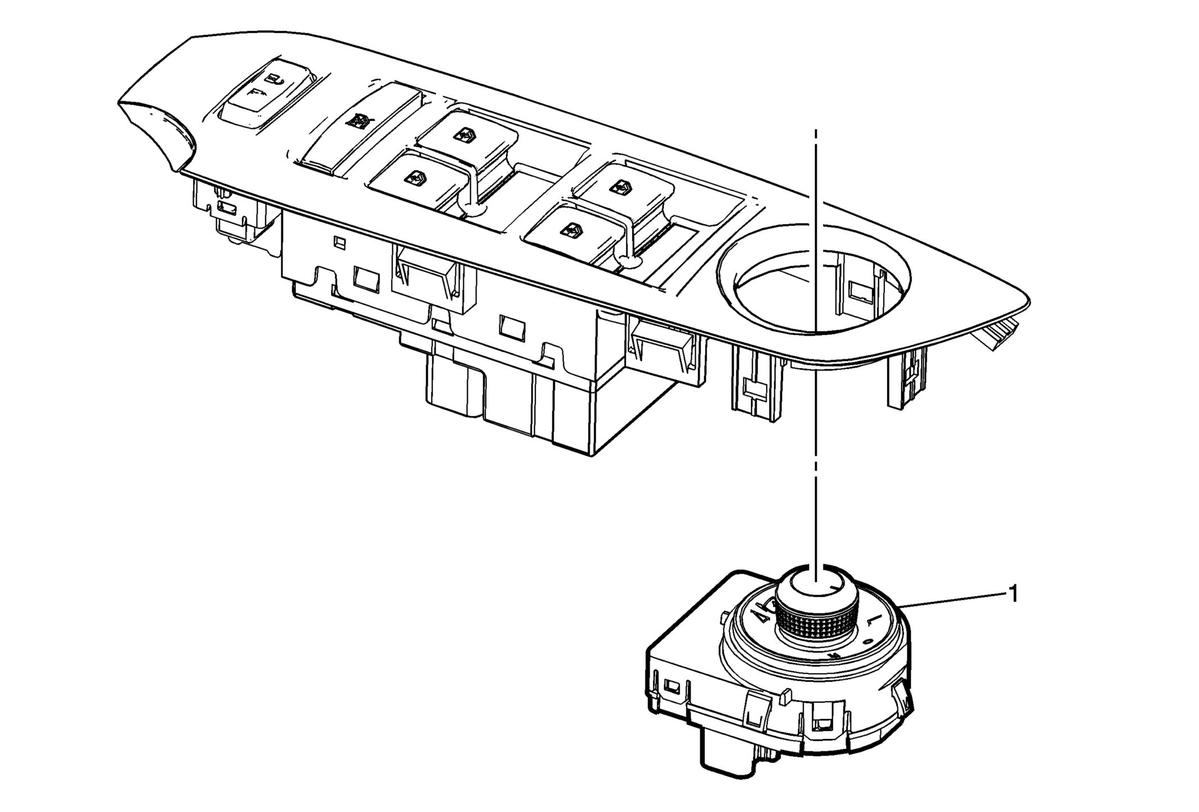

Fig 1: Outside Rearview Mirror Remote Control Switch (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door armrest switch mount plate - driver side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Chevrolet) .
1	Outside Remote Control Rearview Mirror Switch Assembly Procedure Release tabs on switch to remove from the front side door accessory switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door armrest switch mount plate - driver side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Chevrolet) .

Outside Remote Control Rearview Mirror Switch Assembly

Procedure

Release tabs on switch to remove from the front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
