Interior HVAC Module - Rear

Interior HVAC Module - Rear

Items
1. M8B Blower Motor - Auxiliary
2. M6B Air Temperature Door Actuator - Auxiliary
3. M37B Mode Door Actuator - Auxiliary
4. K8A Blower Motor Control Module - Auxiliary

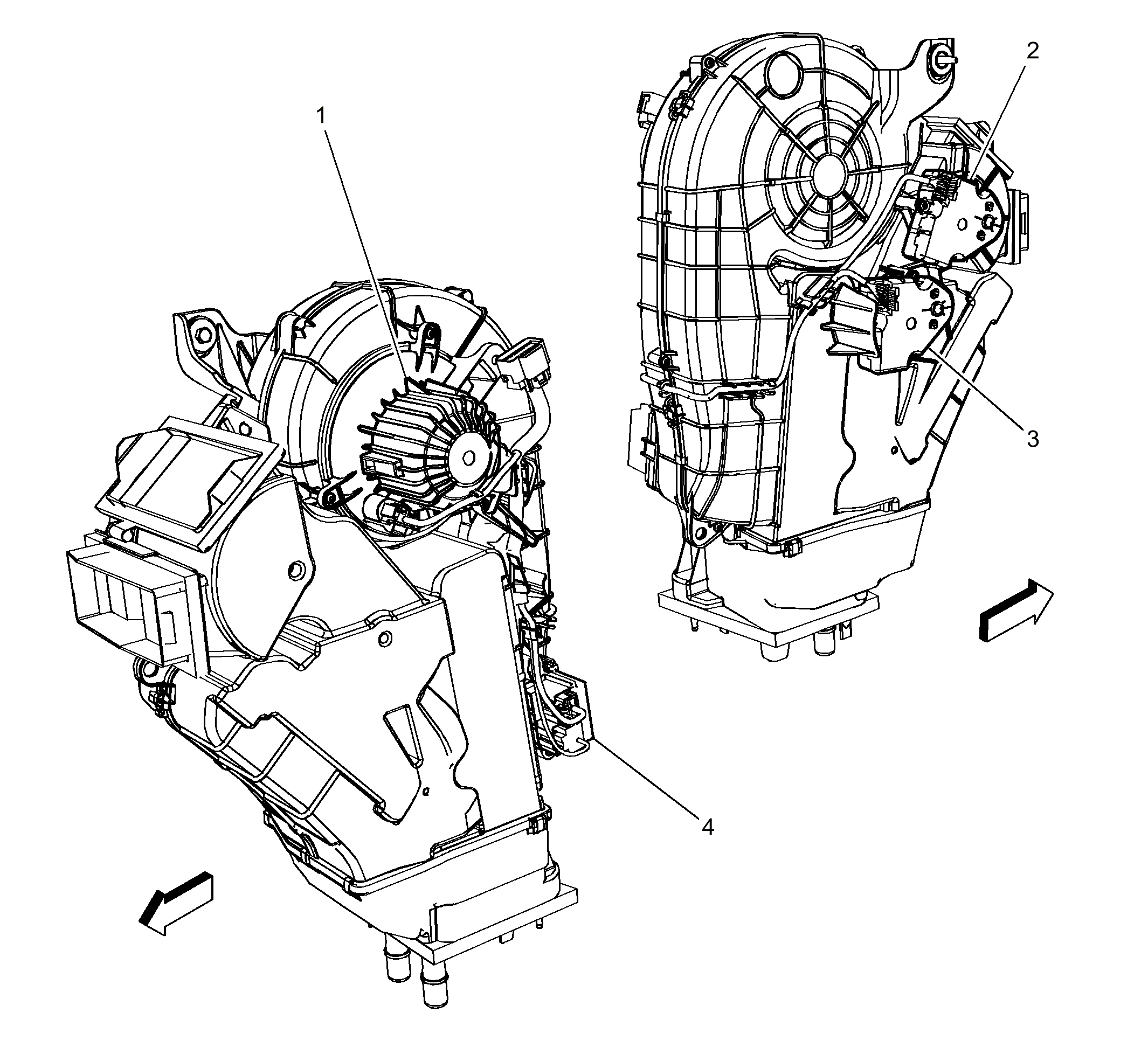

Fig 1: Interior HVAC Module - Rear
GM1863168Courtesy of GENERAL MOTORS COMPANY
