Repair and Diagnosis (Single Page)
>>
Electrical
>>
Component Locations
>>
Component Locator - Electrical Center Identification Views (2 Of 2)
>>
Electrical Center Identification Views
>>
X51A Fuse Block - Instrument Panel Top View (W49 with T79)
X51A Fuse Block - Instrument Panel Top View (W49 with T79)

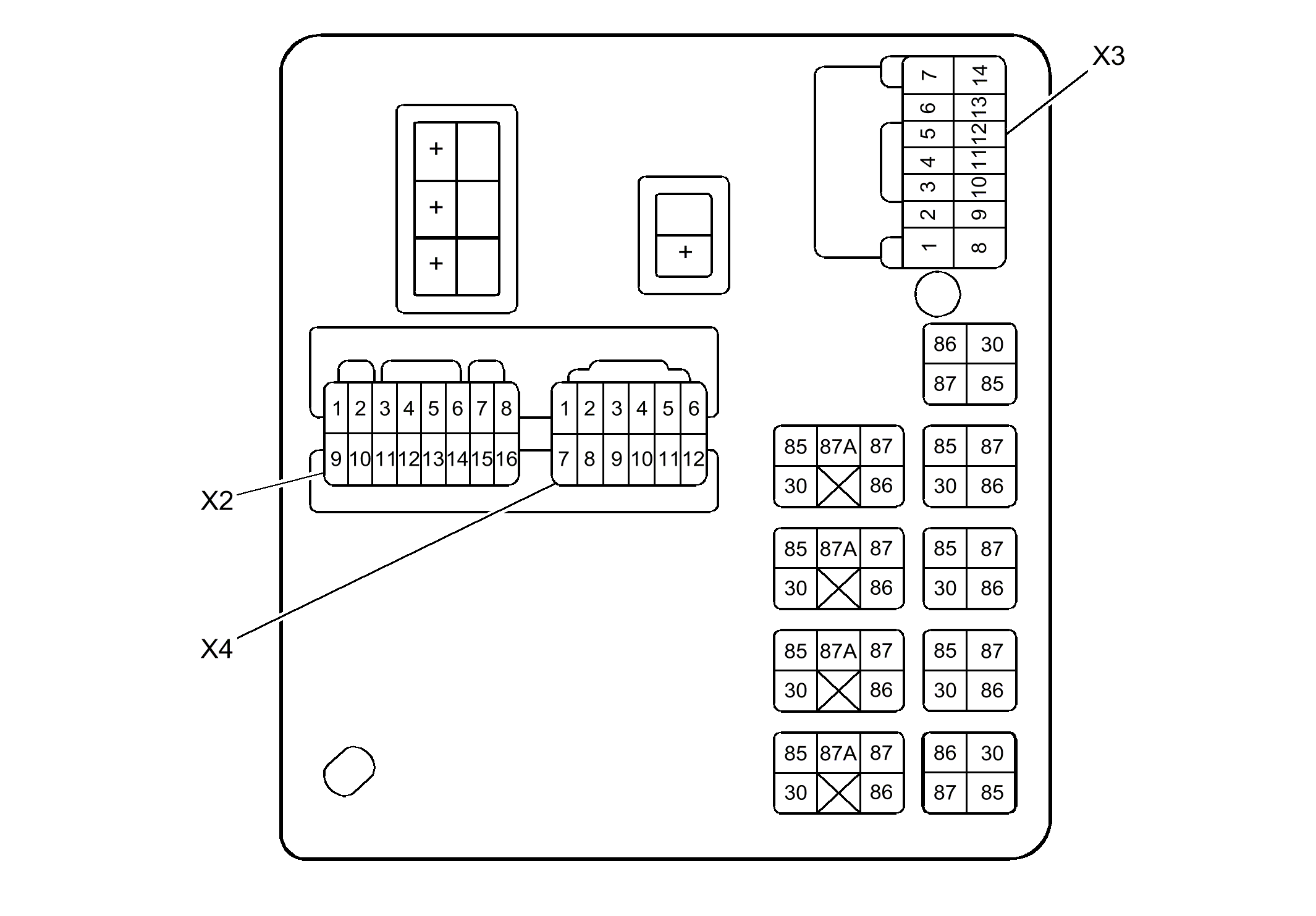

Fig 1: X51A Fuse Block - Instrument Panel Top View (W49 with T79)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
