B261D Seat Back Unlocked Switch - Driver
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

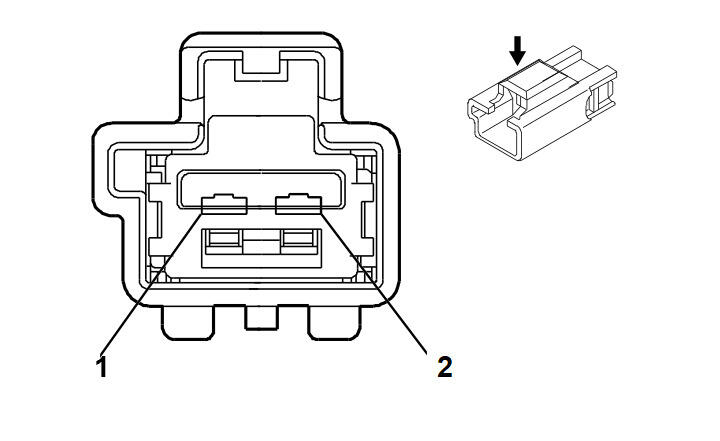

Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 7282-6445-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
4605 |
Driver Seat Status Switch Voltage Reference |
I |
- |
| 2 |
0.5 |
YE |
4606 |
Driver Seat Back Released Switch Signal |
I |
- |
