Door Lock and Side Window Switch Replacement - Passenger Side

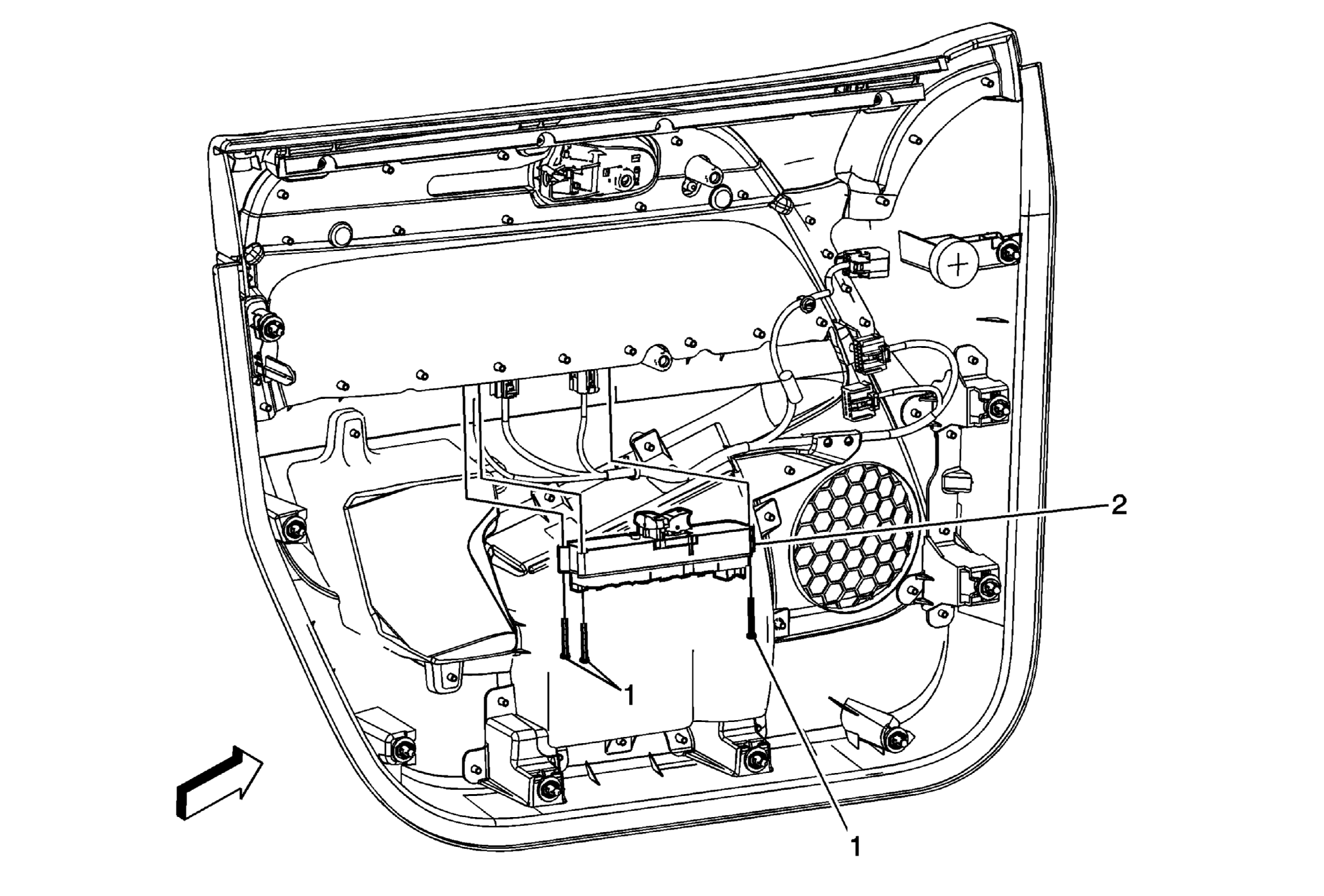

Fig 1: Door Lock and Side Window Switch - Passenger Side
GM1923793Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the passenger side door trim panel. Refer to Front Side Door Trim Panel Replacement - Right Side (Enclave)Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
1 Front Side Door Lock and Side Window Switch Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Front Side Door Lock and Side Window Switch Assembly

Procedure

  1. Disconnect the electrical connectors.
  2. Refer to Control Module References for programming and set-up information.
