K43 Power Steering Control Module X3
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

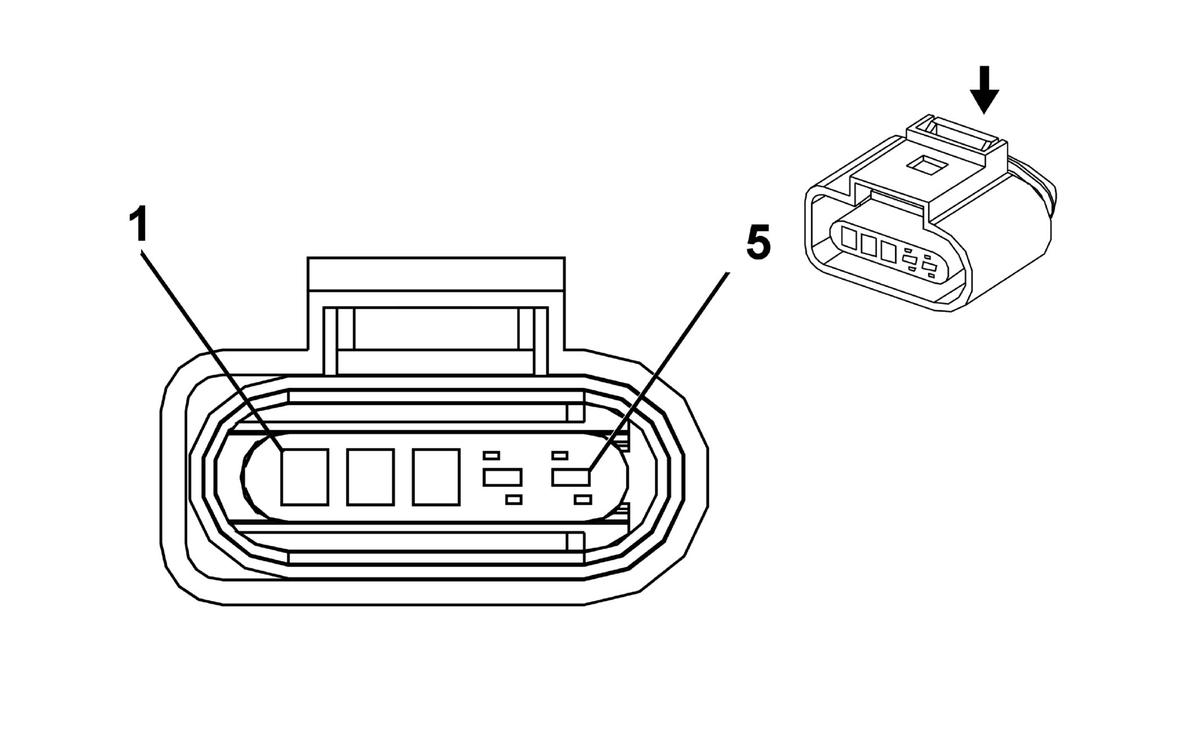

Connector Part Information
- Harness Type: Power Steering Shaft Torque Sensor
- OEM Connector: Not Available
- Service Connector: Service by Component - See Part Catalog
- Description: 5-Way F Micro II Timer Series, Sealed (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1-3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
BN |
6631 |
Torque Input Sensor High Reference |
I |
- |
| 5 |
0.5 |
L-GN |
6632 |
Torque Input Sensor Low Reference |
I |
- |
