Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Drain the transfer case fluid. Refer to Transfer Case Fluid Replacement .
  3. Drain the transmission fluid. Refer to Transmission Fluid Drain and Fill .
  4. Remove the propeller shaft. Refer to Propeller Shaft Replacement .
  5. Remove the right wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .
  6. Remove the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement .
  7. Support the transaxle with a jackstand.
  8. Remove the engine rear mount bracket. Refer to Engine Rear Mount Bracket Replacement (Front Wheel Drive)Engine Rear Mount Bracket Replacement (All Wheel Drive) .

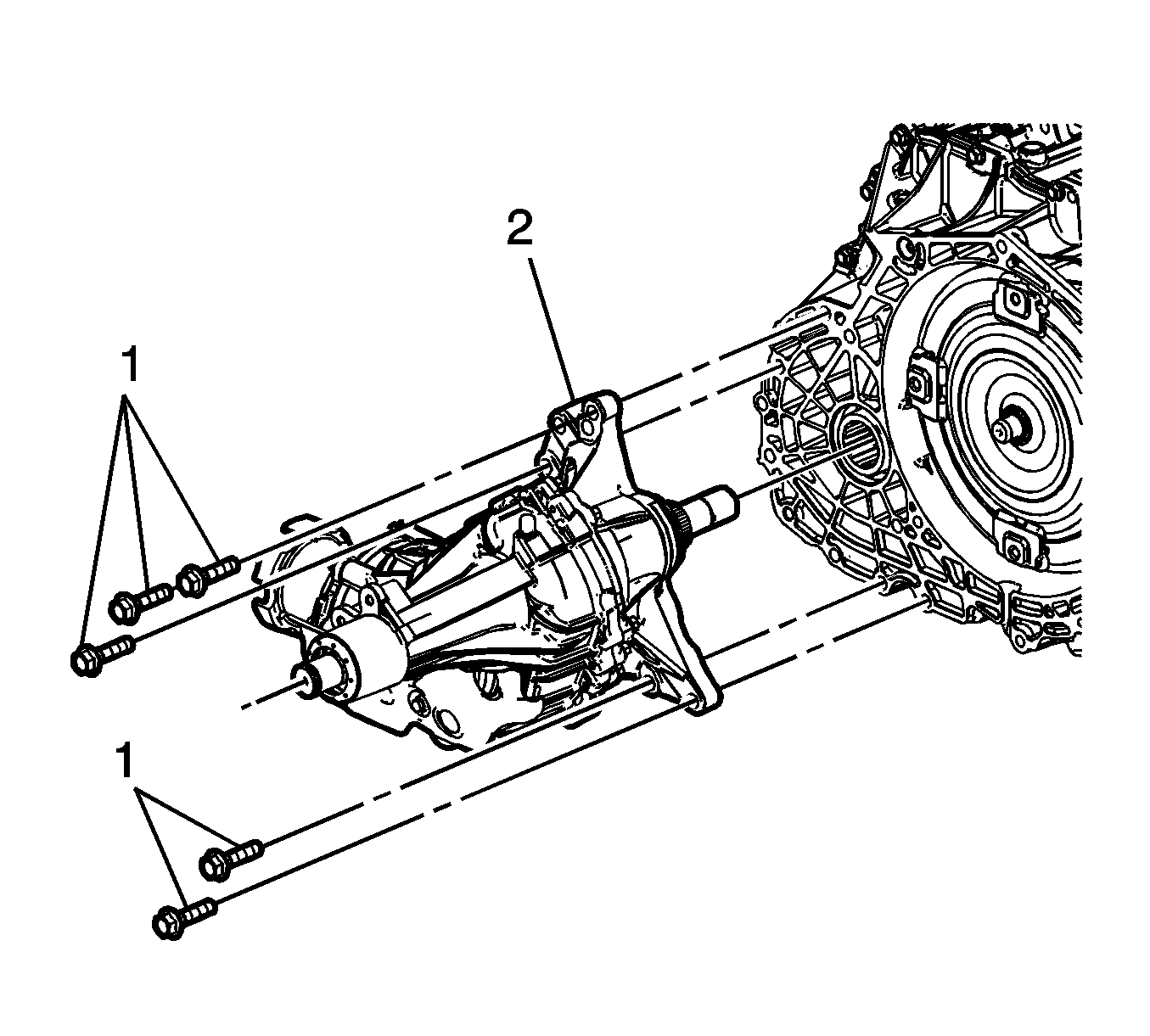

    9. Fig 1: Transfer Case & Bolts
    GM2039429Courtesy of GENERAL MOTORS COMPANY
  9. Remove the transfer case bolts (1).
  10. Remove the transfer case (2).
