Machine Set-up

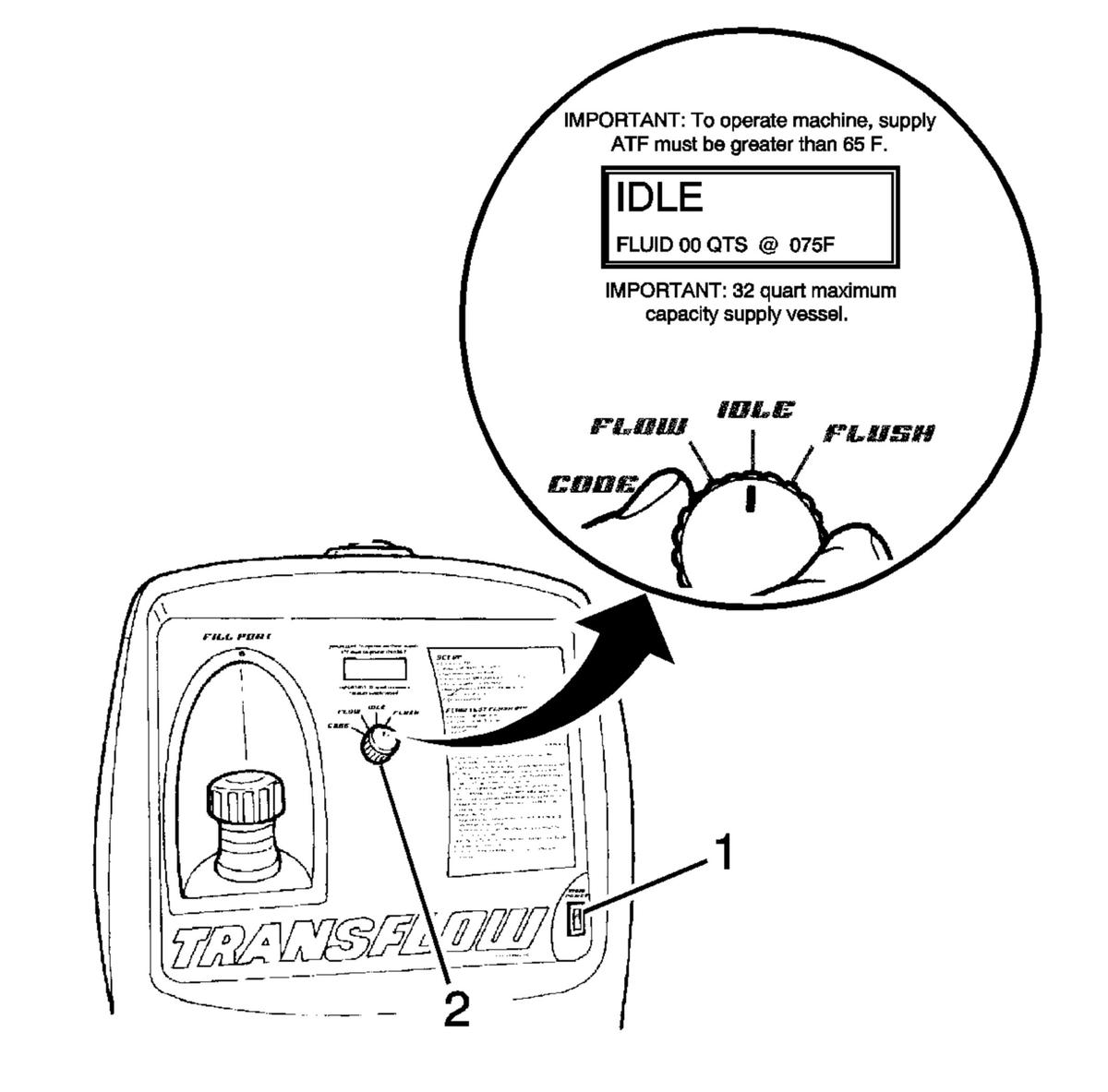

Fig 1: Main Power Switch & Main Function Switch

Courtesy of GENERAL MOTORS COMPANY

Verify that the main power switch (1) is in the OFF position.
Place the main function switch (2) in the IDLE position.

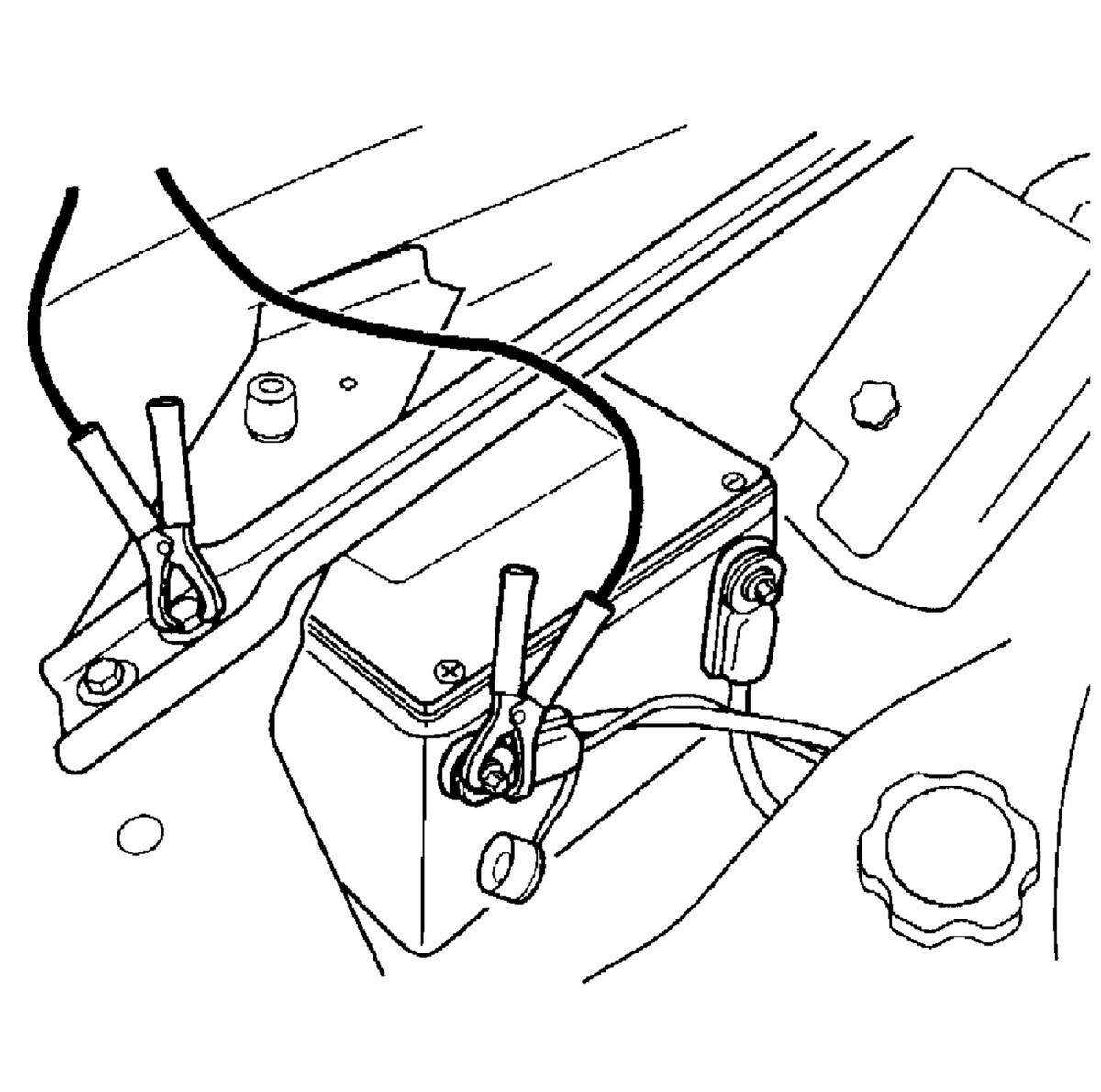

Fig 2: Connecting To 12V DC Power Source

Courtesy of GENERAL MOTORS COMPANY

Connect DT-45096 flush and flow test tool to the vehicle 12V DC power source by connecting the red battery clip to the positive, +, battery post on the vehicle and connect the negative lead to a known good chassis ground.
Turn the main power switch to the ON position.

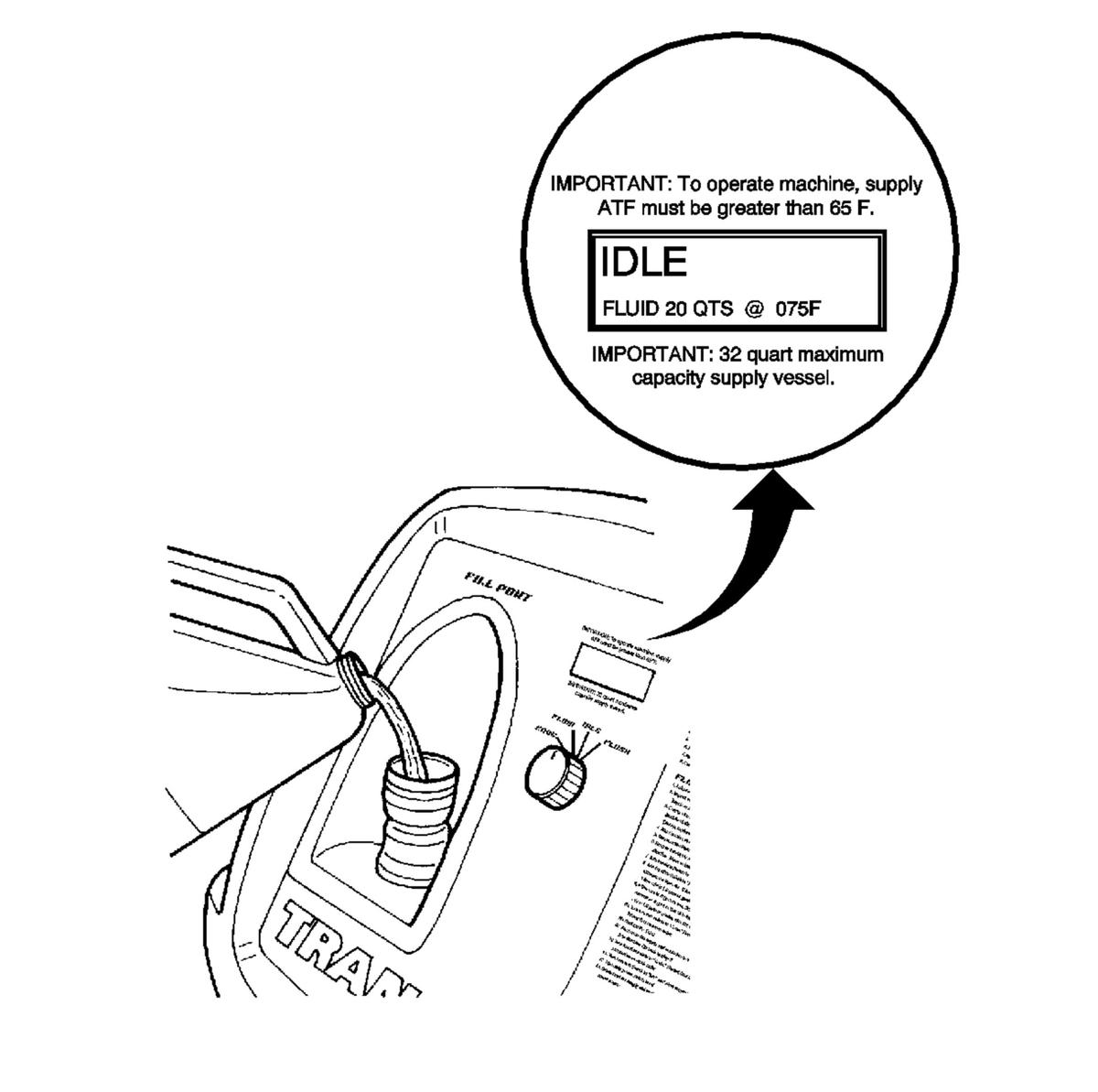

Fig 3: Filling Supply Tank With Transmission Fluid

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Do not overfill the supply vessel. Damage to the unit may result. To verify the fluid level, view the LCD screen display while filling the unit, to ensure the fluid level does not exceed 30 L (32 qt).

Fill the supply tank with the appropriate GM automatic transmission fluid through the fill port.
Reinstall and tighten the fill cap.

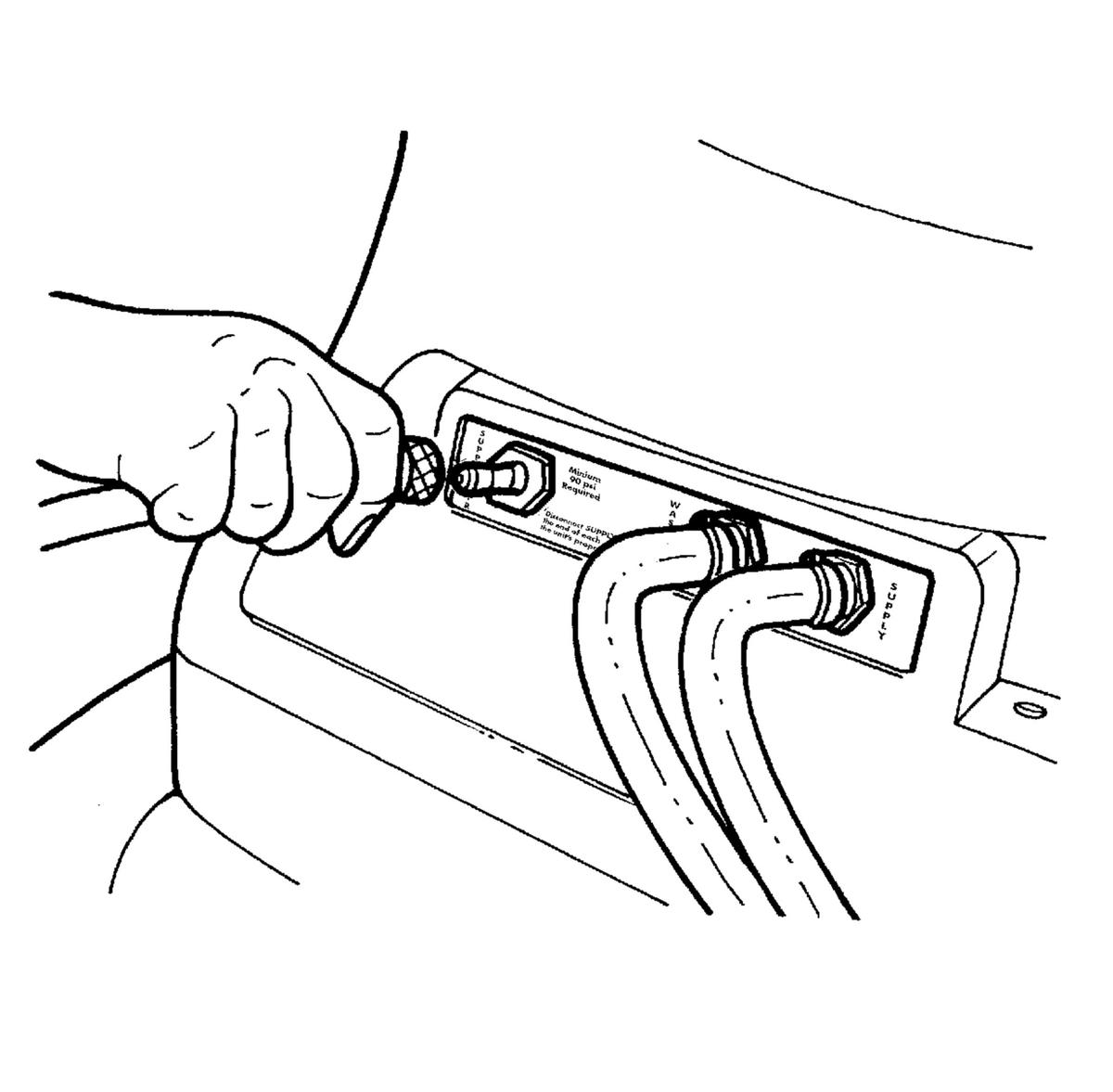

Fig 4: Applying Shop Air Supply Hose To Quick-Disconnect

Courtesy of GENERAL MOTORS COMPANY

Connect a shop air supply hose to the quick-disconnect on the rear panel marked SUPPLY AIR.
