Removal Procedure

  1. Remove Front Lower Control Arm - Lower Control Arm Replacement
  2. Secure the front lower control arm in a vise.

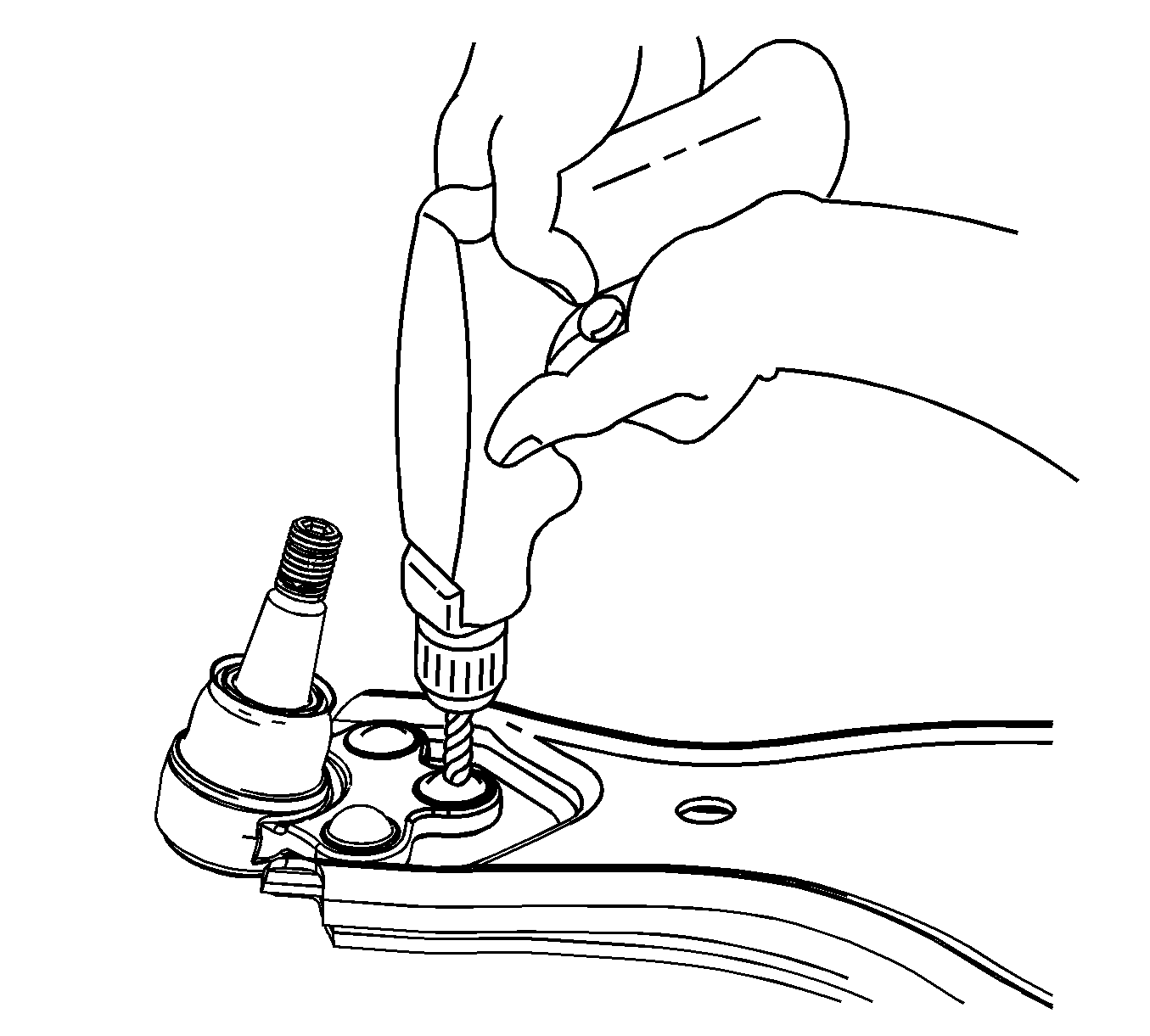

    3. Fig 1: Drilling Off Head Of Rivet
    GM1853593Courtesy of GENERAL MOTORS COMPANY
  3. Drill through or grind off the head of the rivets holding the front lower control arm ball stud in the front lower control arm.

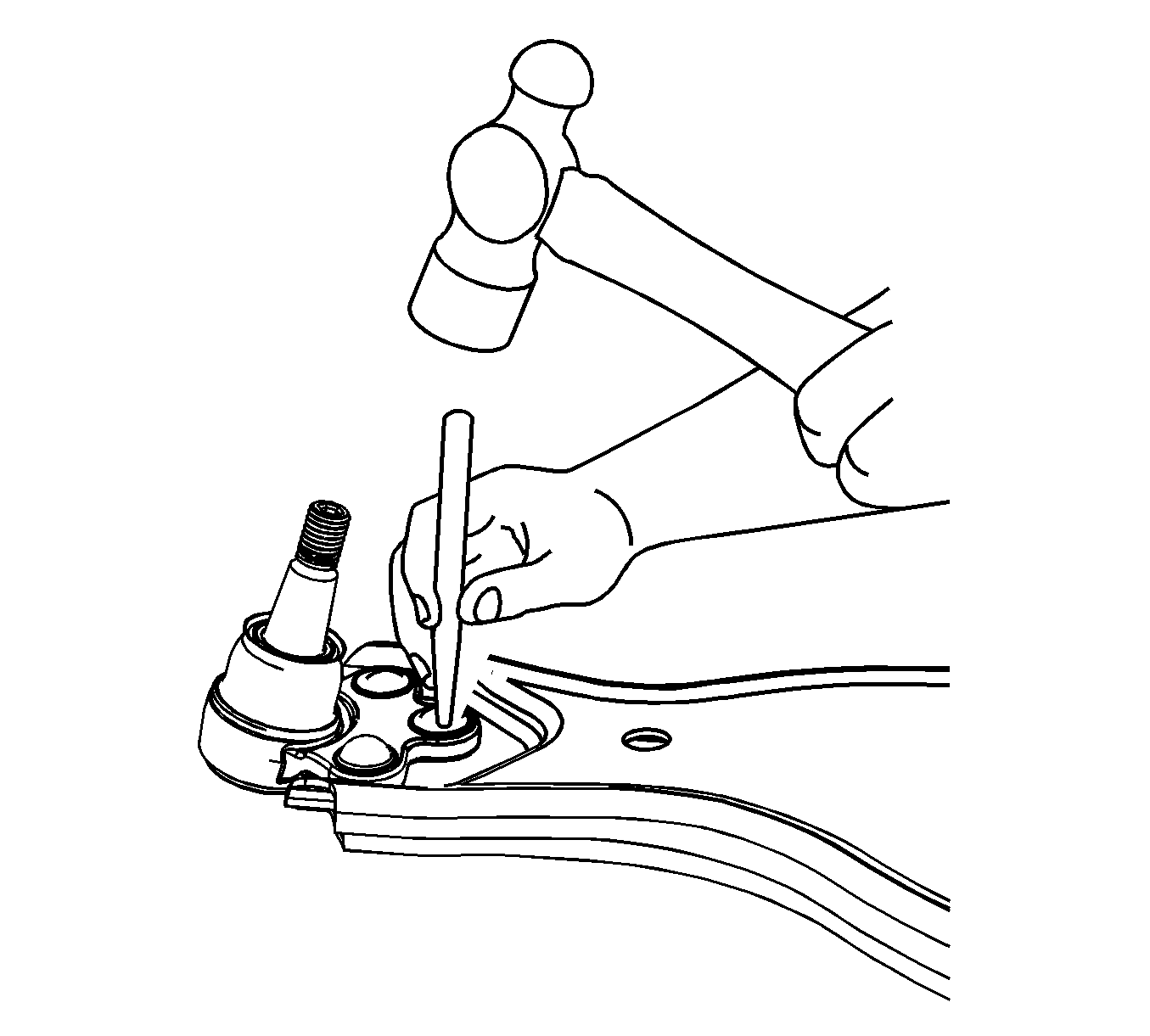

    4. Fig 2: Removing Rivets With A Punch And A Hammer
    GM1853591Courtesy of GENERAL MOTORS COMPANY
  4. Use a suitable punch and a hammer to loosen the rivets from the front lower control arm.

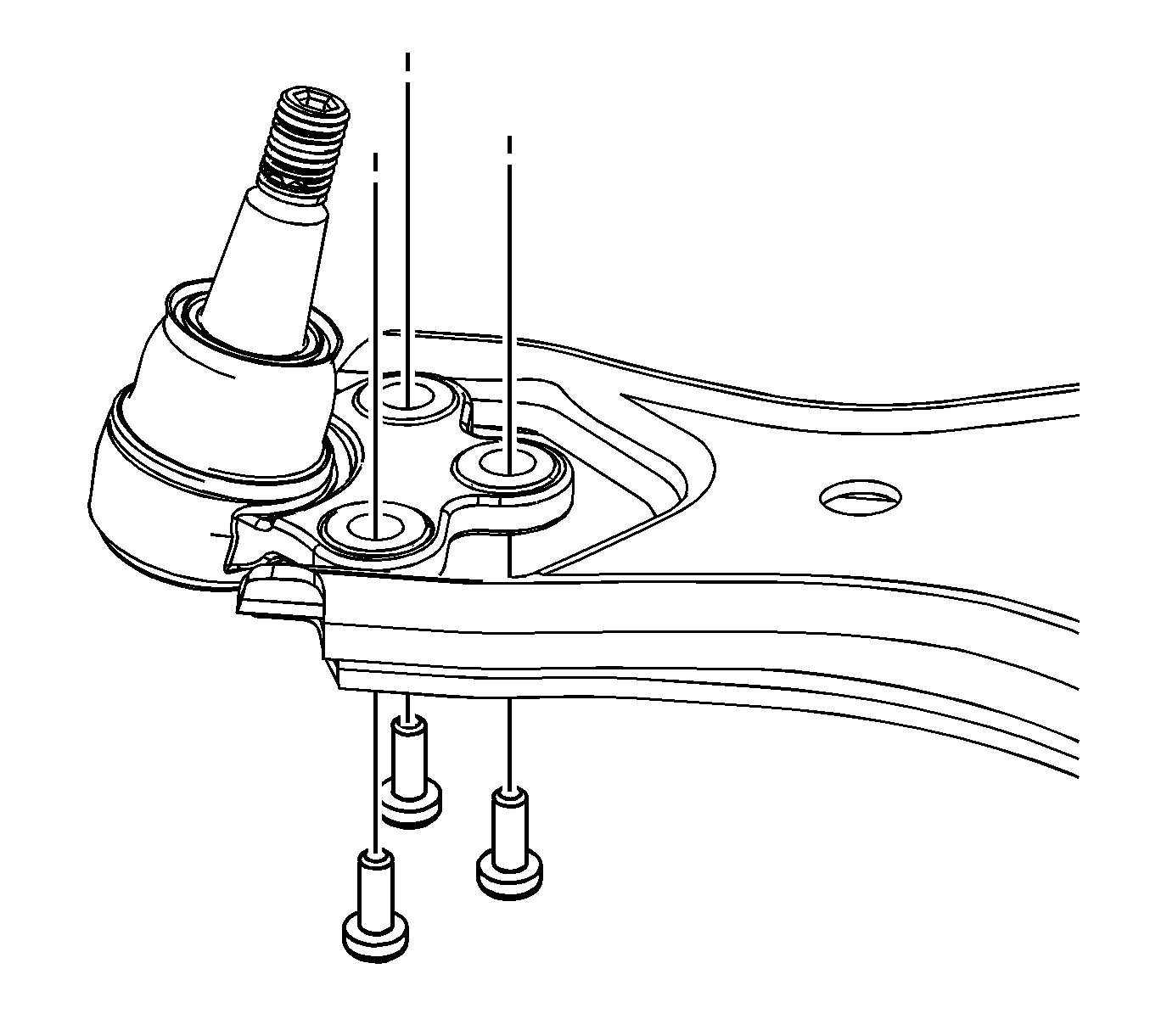

    5. Fig 3: Removing Rivets
    GM1853594Courtesy of GENERAL MOTORS COMPANY
  5. Remove the rivets from the front lower control arm.
    6. Fig 4: Removing/Installing Ball Joint At Lower Control Arm
    GM1853595Courtesy of GENERAL MOTORS COMPANY
  6. Use a 31/64 in drill bit to enlarge each rivet hole. This step is necessary for the NEW front lower control arm ball stud bolts to fit.
  7. Remove the front lower control arm ball stud from the front lower control arm.
