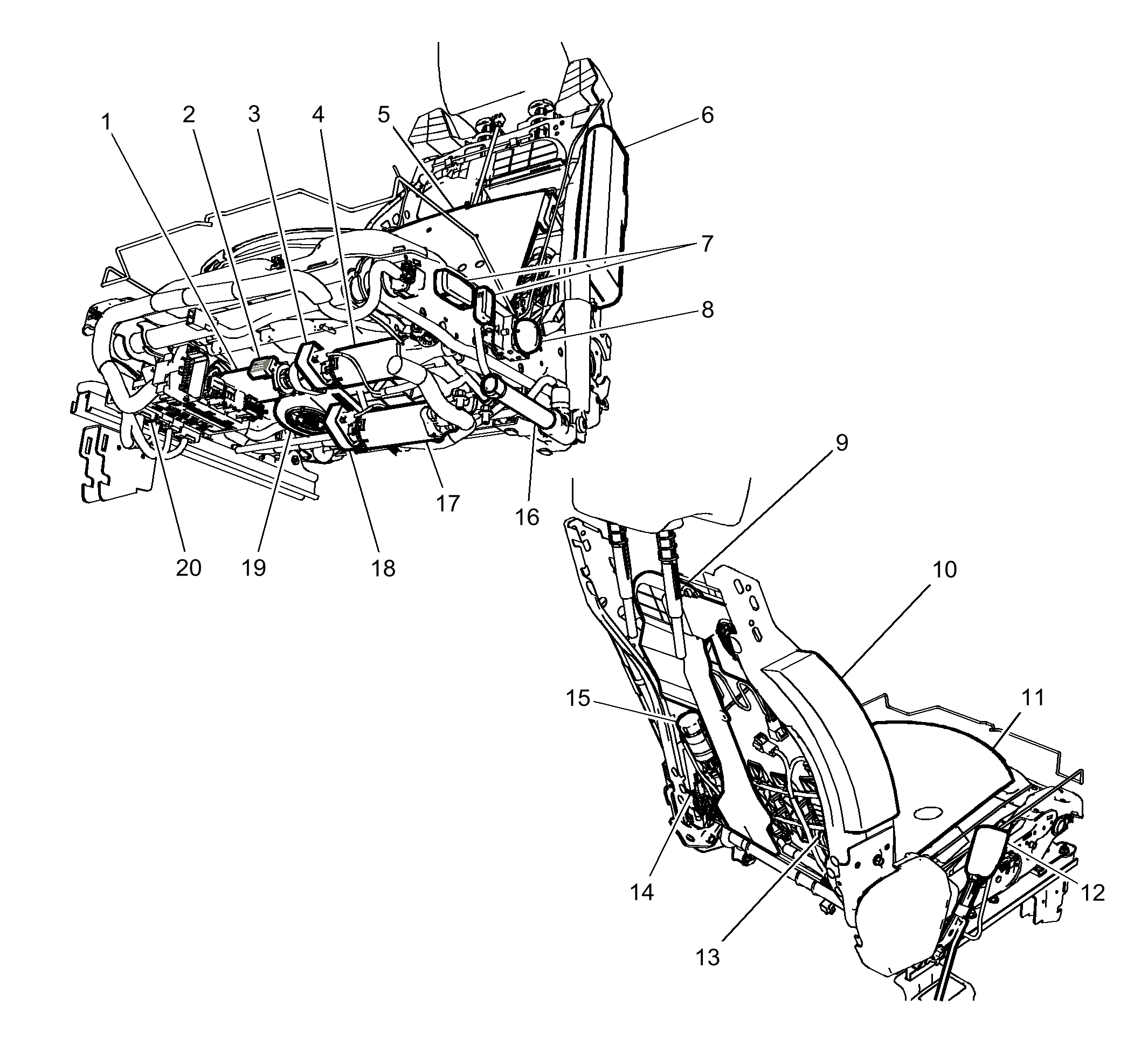

Driver Seat Components
Driver Seat Components
| Items |
|---|
| 1. M50D Seat Front Vertical Motor - Driver (AG1 or AG3 or AH5) M50D Seat Front Vertical Motor - Driver |
| 2. B89D Seat Front Vertical Position Sensor - Driver (A45) B89D Seat Front Vertical Position Sensor - Driver |
| 3. B92D Seat Rear Vertical Position Sensor - Driver (A45) B92D Seat Rear Vertical Position Sensor - Driver |
| 4. M55D Seat Rear Vertical Motor - Driver (AG1 or AG3 or AH5) M55D Seat Rear Vertical Motor - Driver |
| 5. E14A Seat Heating Element - Driver Back (KA1 or KB6 or SPO Accessory) E14A Seat Heating Element - Driver Back (KA1)E14A Seat Heating Element - Driver Back (KB6) |
| 6. F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver |
| 7. S64D Seat Adjuster Switch - Driver (AG1 or AG3 or AH5) S64D Seat Adjuster Switch - Driver |
| 8. S65D Seat Lumbar Support Switch - Driver (AG3 or AH5) S65D Seat Lumbar Support Switch - Driver |
| 9. K53D Seat Blower Assembly - Driver Back (KB6) |
| 10. F106DA Seat Side Air Bag - Driver Inboard (AYQ) F106DA Seat Side Air Bag - Driver Inboard |
| 11. E14B Seat Heating Element - Driver Cushion (KA1 or KB6 or SPO Accessory) E14B Seat Heating Element - Driver Cushion (KA1)E14B Seat Heating Element - Driver Cushion (KB6) |
| 12. B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver |
| 13. B93D Seat Recline Position Sensor - Driver (A45) B93D Seat Recline Position Sensor - Driver |
| 14. M56D Seat Recline Motor - Driver (AG3 or AH5) M56D Seat Recline Motor - Driver |
| 15. M52D Seat Lumbar Support Horizontal Motor - Driver (AG3 or AH5) M52D Seat Lumbar Support Horizontal Motor - Driver |
| 16. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver |
| 17. M51D Seat Horizontal Motor - Driver (AG1 or AG3 or AH5) M51D Seat Horizontal Motor - Driver |
| 18. B90D Seat Horizontal Position Sensor - Driver (A45) B90D Seat Horizontal Position Sensor - Driver |
| 19. K55D Seat Blower Assembly - Driver Cushion (KB6) |
| 20. K40 Seat Memory Control Module (A45) K40 Seat Memory Control Module X1K40 Seat Memory Control Module X2K40 Seat Memory Control Module X3K40 Seat Memory Control Module X4 |
