K65 Tire Pressure Indicator Module
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

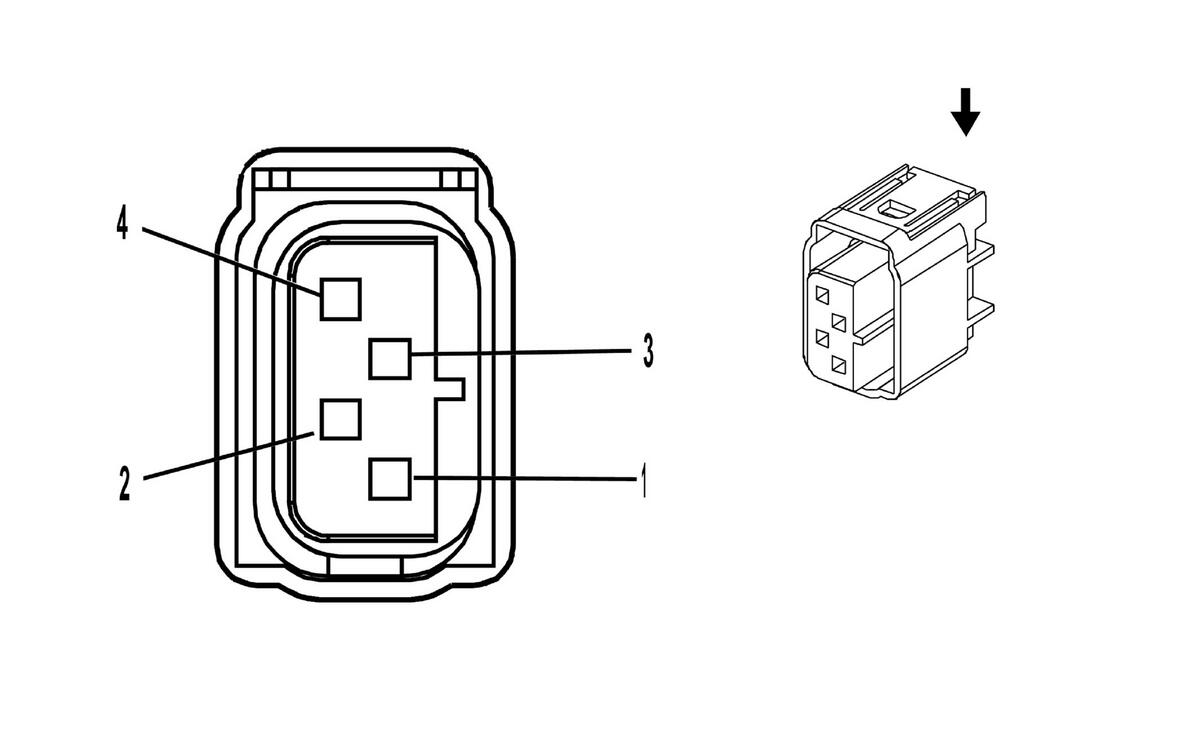

Connector Part Information
- Harness Type: Body
- OEM Connector: 1-967640-1
- Service Connector: 13585332
- Description: 4-Way F 0.64 Micro-Quadlock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
2350 |
Ground |
I |
- |
| 2 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 3 |
0.5 |
GN/BU |
6133 |
Local Interconnect Network Serial Data Bus 2 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
