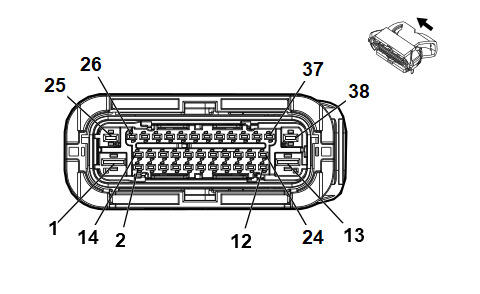

K38 Chassis Control Module X1

WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: 33110415
Service Connector: 19353395
Description: 38-Way F 1.5 CTS, 2.8 MCP, 4.8 MCP Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13582180	J-35616-14 (GN)	J-38125-560	1241374-1	Lear 17	E	2
II	19119772	J-35616-35 (VT)	J-38125-557	1241388-1	Lear 17	E	C
III	19301757	J-35616-40 (BU)	J-38125-556	1241408-1	Lear 28	C	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 9	-	-	-	Not Occupied	-	-
10	0.5	WH	2368	Cooling Fan Control Signal	I	-
11	0.5	BN/GN	4305	Exhaust Flapper Valve Control 1	I	-
12	0.5	GN/VT	4316	Exhaust Flapper Valve Control 2	I	-
13	1.5	BK	1850	Ground	III	-
14 - 16	-	-	-	Not Occupied	-	-
17	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
18	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
19	-	-	-	Not Occupied	-	-
20	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
21	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
22	-	-	-	Not Occupied	-	-
23	0.5	BU/WH	4306	Exhaust Flapper Valve 1 Feedback Signal	I	-
24	0.5	VT/YE	4317	Exhaust Flapper Valve 2 Feedback Signal	I	-
25 - 29	-	-	-	Not Occupied	-	-
30	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
31	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
32	-	-	-	Not Occupied	-	-
33	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
34	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
35	-	-	-	Not Occupied	-	-
36	0.5	VT/WH	2839	Run/Crank Ignition 1 Voltage	I	-
37	0.5	VT/YE	5985	Accessory Wakeup Serial Data	I	-
38	0.75	RD/VT	2640	Battery Positive Voltage	II	-
