K33A HVAC Control Module - Auxiliary
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

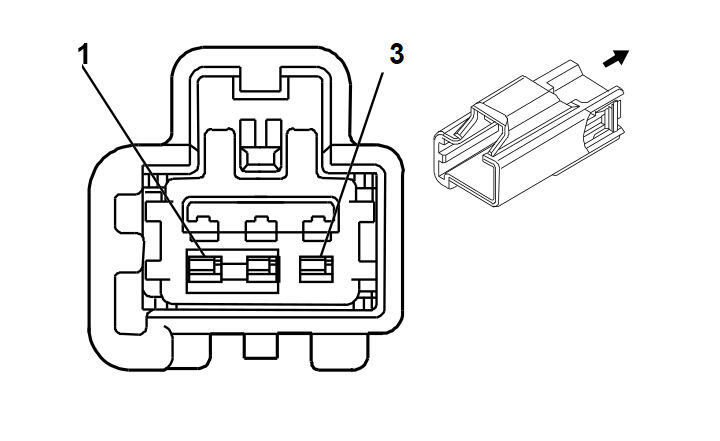

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7282-3440-40
- Service Connector: 19167751
- Description: 3-Way M 1.5 YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1550 |
Ground |
I |
- |
| 2 |
0.35 |
GN/BK |
4117 |
Local Interconnect Network Serial Data Bus 17 |
I |
- |
| 3 |
0.35 |
RD/YE |
5840 |
Battery Positive Voltage |
I |
- |
