K9 Body Control Module X5
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

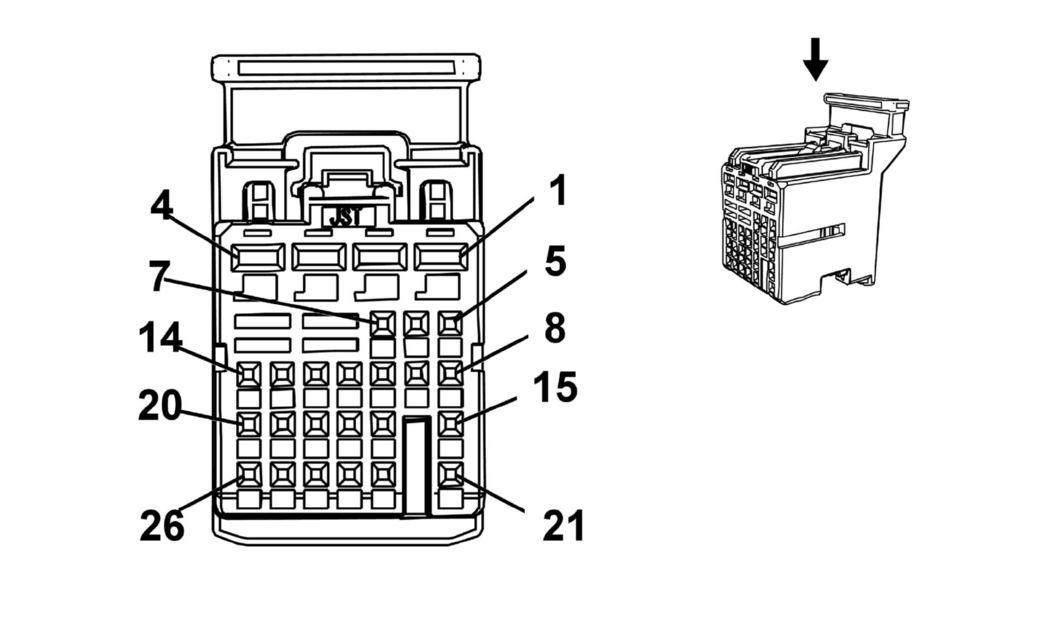

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: HIT2PB-26-E-N
- Service Connector: 19151264
- Description: 26-Way F 0.64, 2.8 Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575789 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
C |
A |
| II |
13575789 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| III |
13575870 |
J-35616-64B (LT BU) |
J-38125-12A |
SNAC3-A021T-M0.64 |
Delphi 20 |
J |
J |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BU/WH |
1334 |
Left Rear Turn Signal Lamp Control |
II |
- |
| 2 |
0.75 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
II |
- |
| 3 |
1.5 |
RD/VT |
5340 |
Battery Positive Voltage |
I |
- |
| 4 |
1.5 |
RD/WH |
3440 |
Battery Positive Voltage |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
BK/VT |
5077 |
Current Sensor Low Reference |
III |
- |
| 7 |
0.5 |
WH/YE |
7541 |
Right Rear Stop Lamp Control |
III |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
GY/GN |
4083 |
RAP Relay 2 Coil Control |
III |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
GY/YE |
6188 |
Lift Glass/Rear Compartment Lid Motor Release Control |
III |
- |
| 12 |
0.35 |
WH/BU |
6311 |
Cruise/ETC/TCC Brake Signal |
III |
- |
| 13 |
0.35 |
BN/YE |
1970 |
Headlamp Low Beam Relay Control |
III |
- |
| 14 |
0.35 |
BN/VT |
5486 |
Run Relay Coil Control |
III |
- |
| 15 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
BN/VT |
1969 |
Headlamp High Beam Relay Control |
III |
- |
| 19 |
0.35 |
BN/WH |
28 |
Horn Relay Control |
III |
- |
| 20 - 22 |
- |
- |
- |
Not Occupied |
- |
- |
| 23 |
0.35 |
BK/VT |
5968 |
Driver Door Lock Status Indicator Signal Ground |
III |
- |
| 24 |
0.35 |
WH/VT |
860 |
Front Windshield Wiper Switch High Signal |
III |
- |
| 25 |
- |
- |
- |
Not Occupied |
- |
- |
| 26 |
0.35 |
YE/BU |
2282 |
Headlamp Washer Relay Control |
III |
- |
