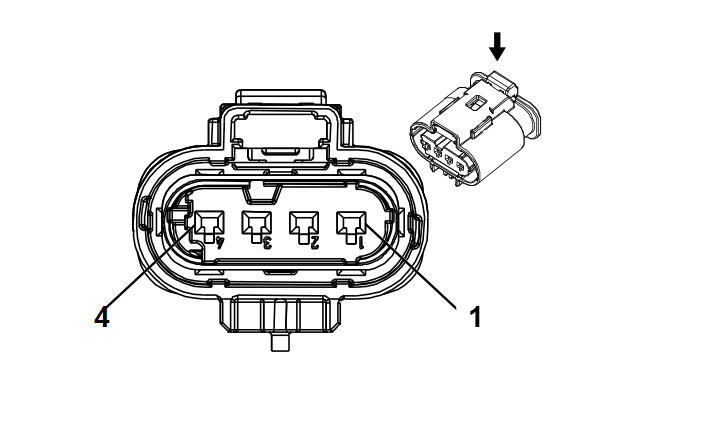

B227 Gear Position Sensor (MEK/MEL/MEP)
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Transmission
- OEM Connector: 10010347
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 Multilock Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/RD |
3622 |
Oil Pressure Sensor 2 5V Reference |
I |
- |
| 2 |
0.5 |
WH |
232 |
Gear Sensor Signal 2 |
I |
- |
| 3 |
0.5 |
YE |
1457 |
Gear Sensor Signal 1 |
I |
- |
| 4 |
0.5 |
BK/YE |
1704 |
Sensor Low Reference |
I |
- |
