S48E Multifunction Switch - Center Console
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

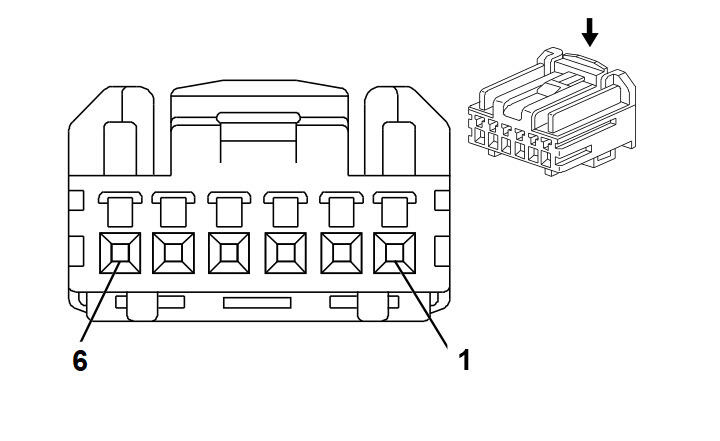

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: HCMPB-06-K
- Service Connector: 19115655
- Description: 6-Way F 0.64 HCM Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
2093 |
Fuel Saver Mode (ECO) Switch 5V Reference |
II |
- |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
II |
- |
| 3 |
0.35 |
WH/VT |
2092 |
Fuel Saver Mode (ECO) Switch Signal |
II |
- |
| 4 |
0.13 |
BU/VT |
1788 |
Traction Control Switch Signal 1 |
I |
- |
| 5 |
0.35 |
BK/VT |
3109 |
Economy Mode Switch Low Reference |
II |
- |
| 6 |
0.35 |
BK |
1450 |
Ground |
II |
- |
