B115 Vehicle Speed Sensor (MEK/MEL/MEP)
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

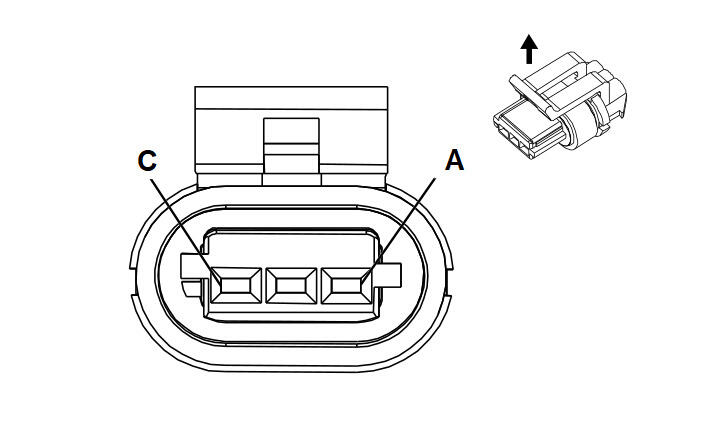

Connector Part Information
- Harness Type: Transmission
- OEM Connector: 33152360
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 150 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
VT/BU |
5294 |
Powertrain Main Relay Fused Supply 5 |
I |
- |
| B |
0.5 |
GN |
3098 |
Output Speed (Digital) Signal |
I |
- |
| C |
0.5 |
BK |
850 |
Ground |
I |
- |
