Water Outlet Replacement

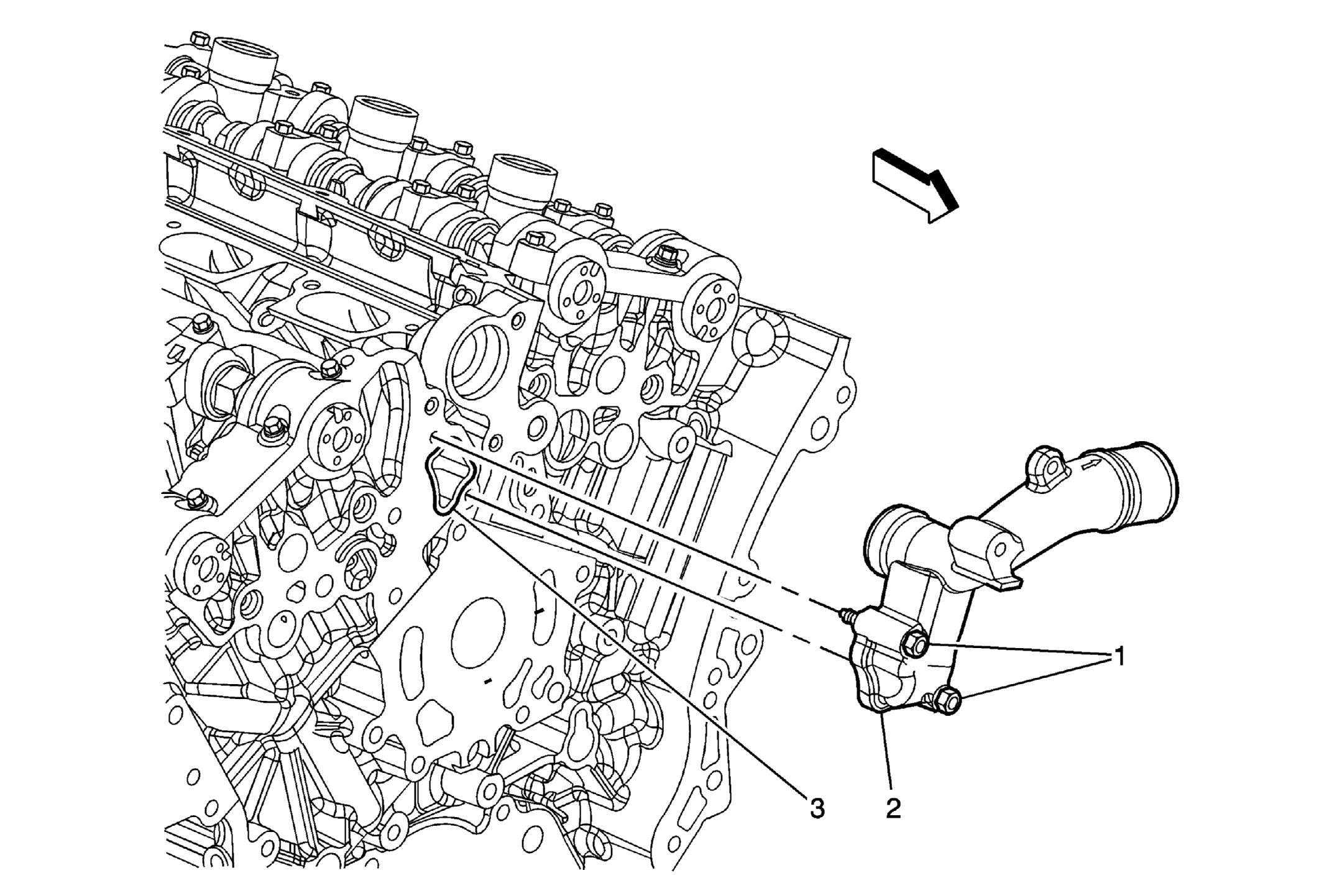

Fig 1: Water Outlet
GM1862355Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement .
  2. Remove the right engine mount strut bracket.Refer to Engine Mount Strut Bracket Replacement - Right Side .
1 Water Outlet Housing Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Remove the water outlet housing bolts.
Tighten
10 N.m (89 lb in)
2 Water Outlet Housing
3 Seal

Procedure

  1. Remove the water outlet housing seal. Discard the seal.
  2. Install a new water outlet housing seal.
