Display Clock Replacement (Enclave)

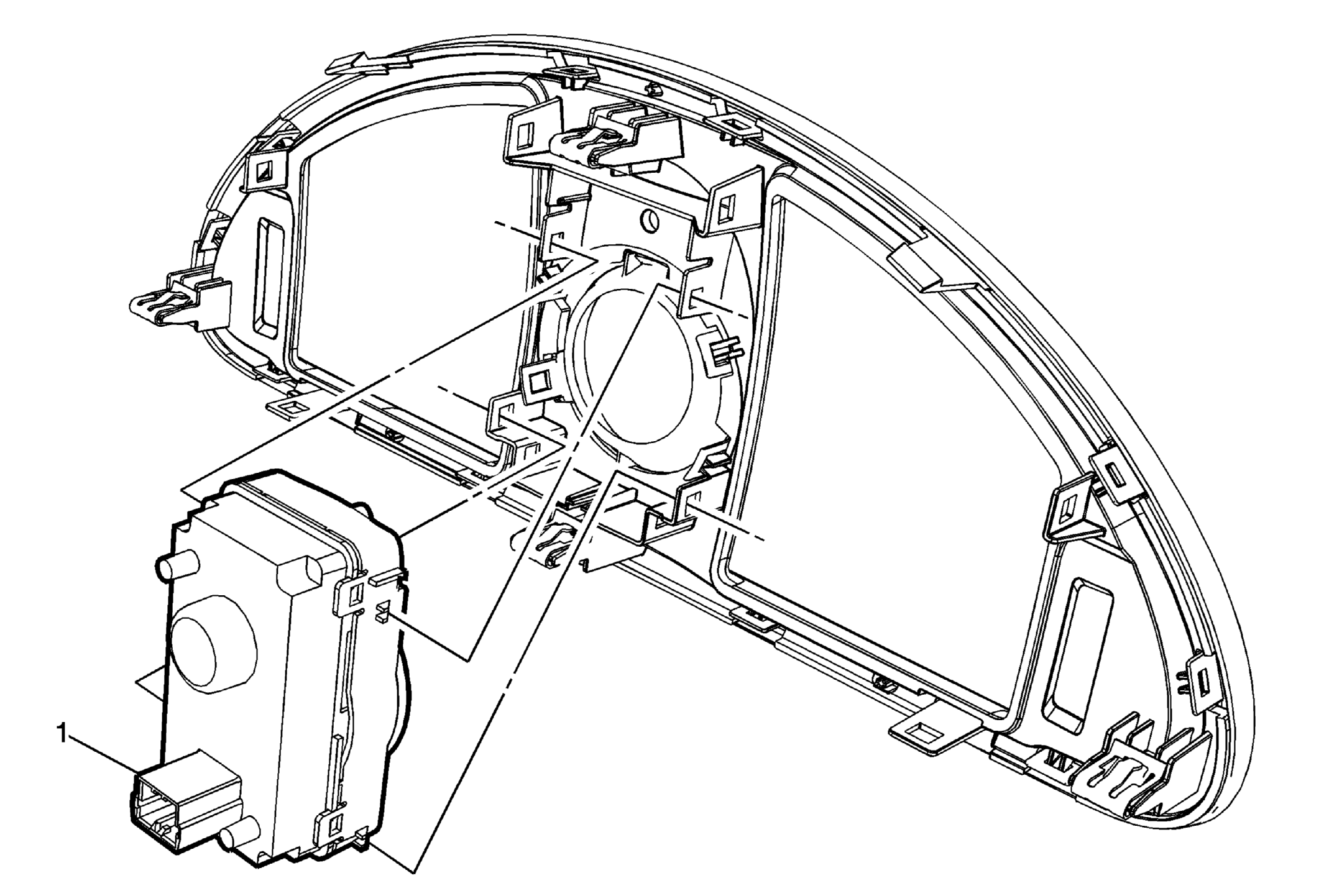

Fig 1: Display Clock (Enclave)
GM2889646Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement (Enclave) .
1 Clock Assembly
Procedure
Unsnap the clock assembly from the trim plate.
