Steering Wheel Horn Switch Replacement

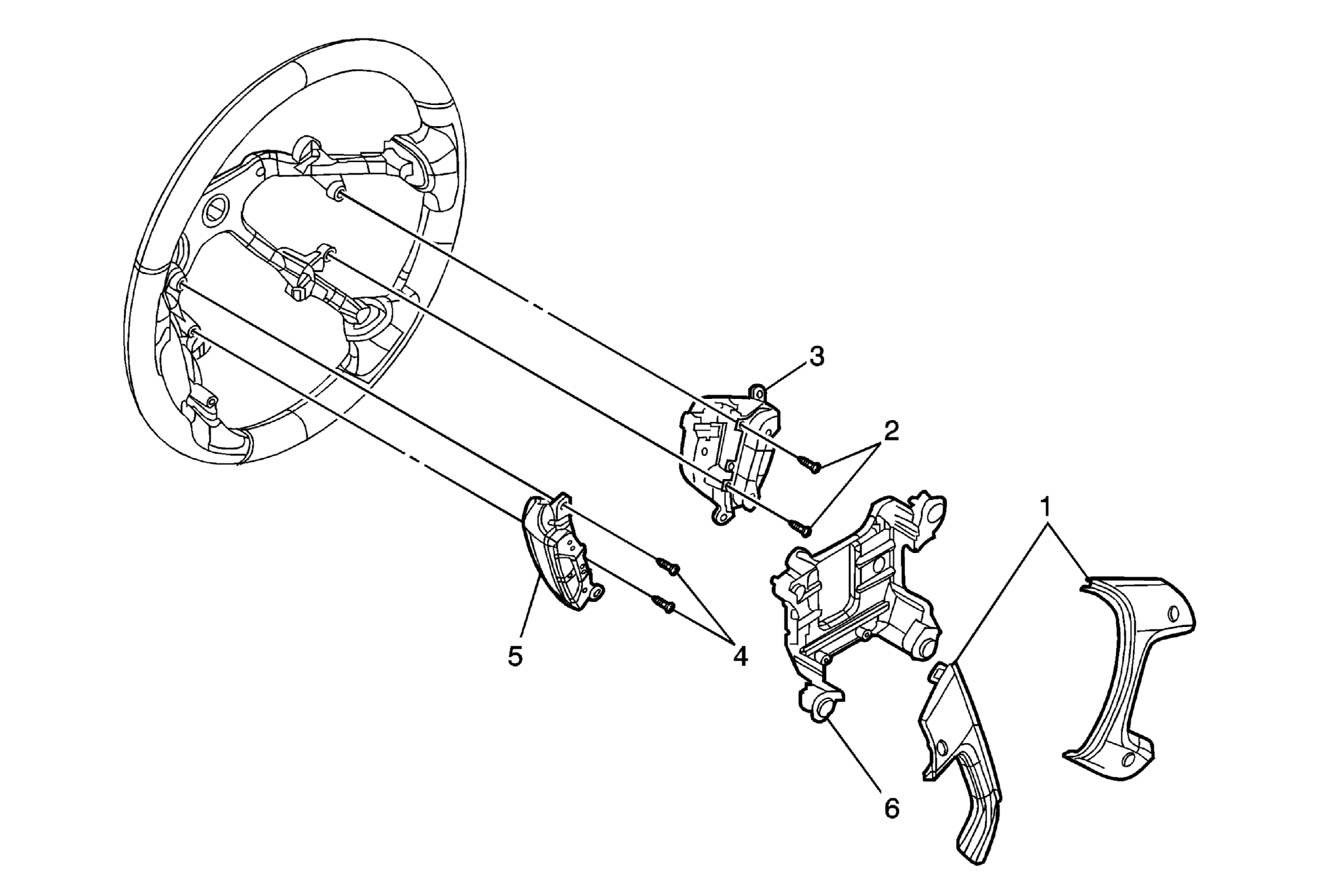

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement . |
|
| 1 | Steering Wheel Spoke Cover (Qty: 2) TIP: Use gentle pressure to disengage the steering wheel spoke covers from the steering wheel. |
| 2 | Radio Control Switch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Radio Control Switch Procedure Disconnect any electrical connectors as needed. |
| 4 | Cruise Control Switch Bolt (Qty: 2) Tighten 2.5 N.m (22 lb in) |
| 5 | Cruise Control Switch Procedure Disconnect any electrical connectors as needed. |
| 6 | Horn Switch Procedure Disconnect any electrical connectors as needed. TIP: Use gentle pressure to disengage the horn switch from the steering wheel. |
