Second Row Seat Area Floor

Second Row Seat Area Floor

Items
1. B18 Battery Current Sensor B18 Battery Current Sensor
2. X55B Fuse Holder - Telematics (UE1) X55B Fuse Holder - Telematics
3. X55AF Fuse Holder - Engine Control Module X55AF Fuse Holder - Engine Control Module

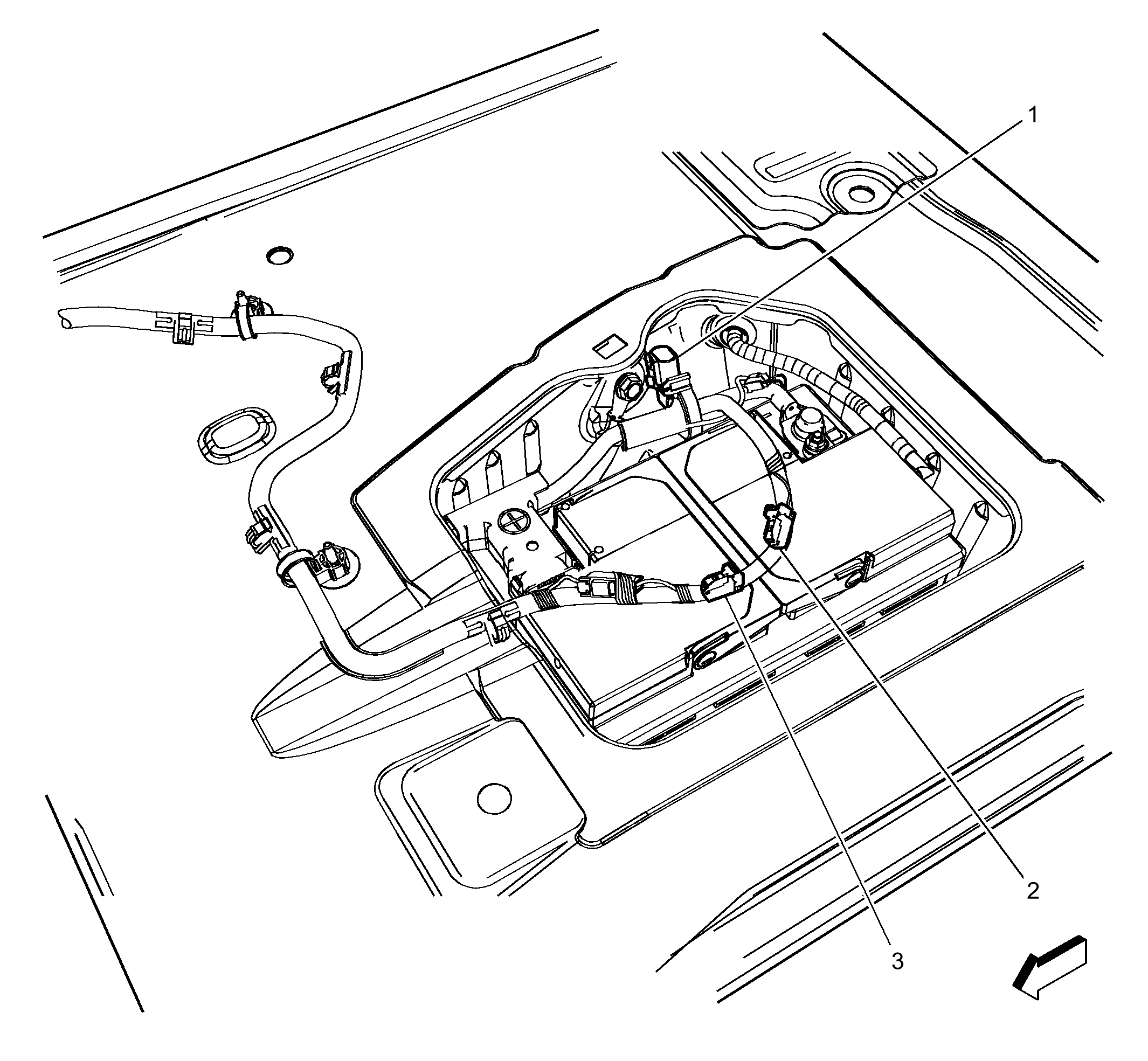

Fig 1: Second Row Seat Area Floor
GM3220726Courtesy of GENERAL MOTORS COMPANY
