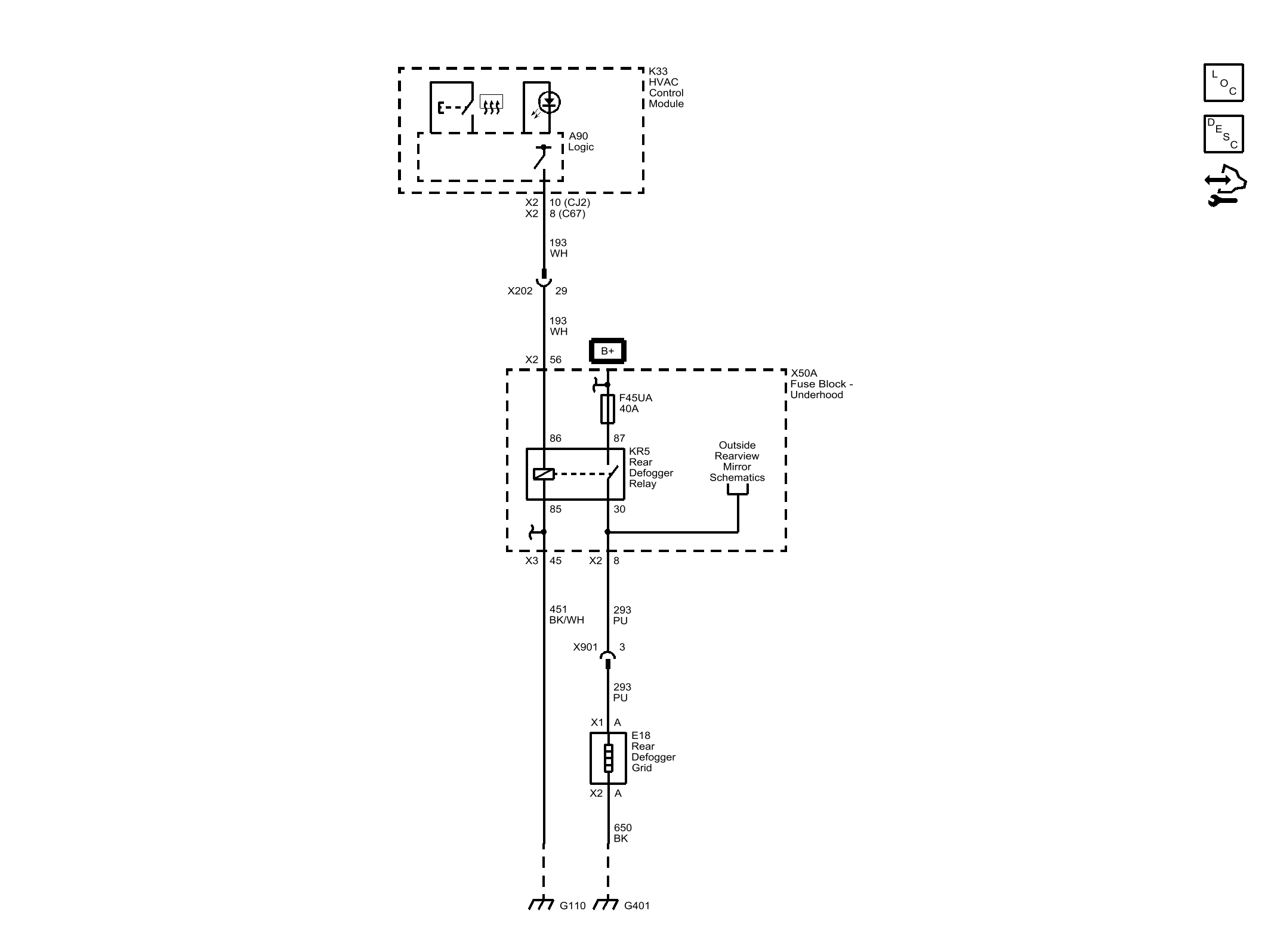

Home >> Chevrolet >> 2017 >> Traverse LS Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger
