Pressure Relief Valve Replacement

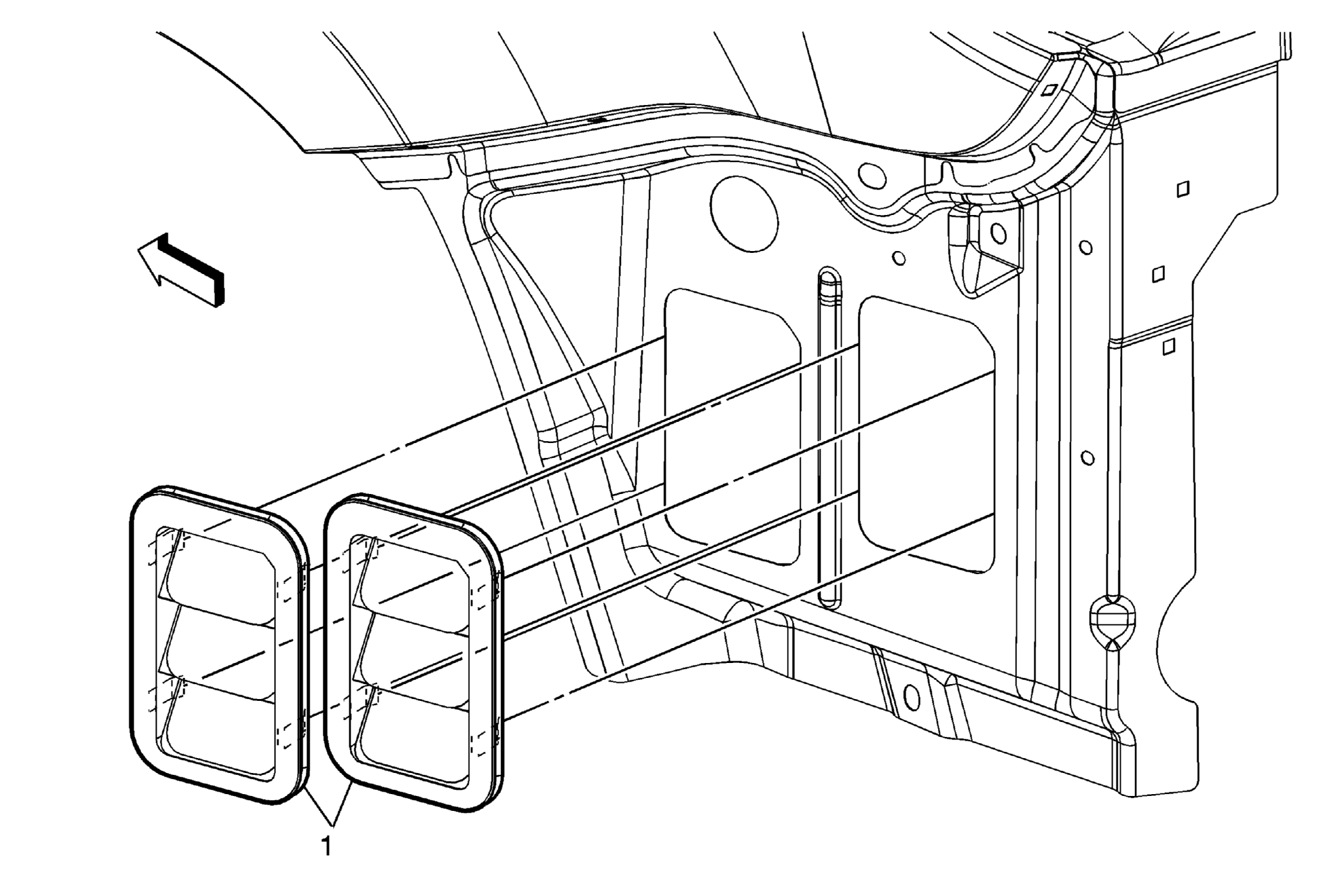

Fig 1: Pressure Relief Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear fascia. Refer to Rear Bumper Fascia Replacement (Acadia)Rear Bumper Fascia Replacement (Enclave)Rear Bumper Fascia Replacement (Traverse) .
1	Pressure Relief Valve Assembly TIP: Release the tabs attaching the valve (1) to the inner rear quarter panel to remove
