Roof Console Replacement

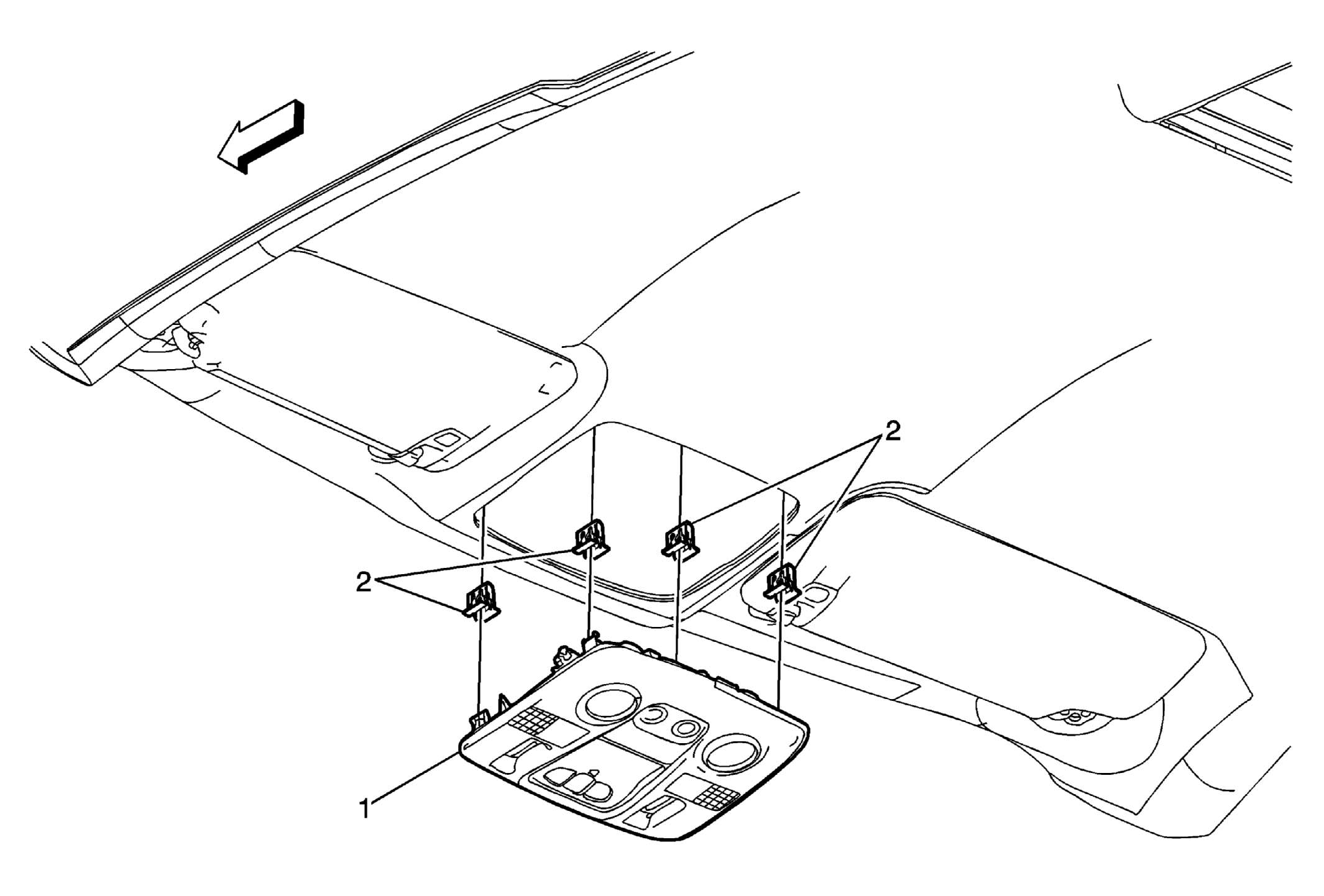

Fig 1: Roof Console
GM1859742Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Roof Console Assembly

Procedure

  1. Use a flat-bladed tool on the bezel to release the tabs and gently pull down to remove the roof console.
  2. Disconnect the electrical connectors.
  3. If replacing the roof console assembly, transfer all necessary components.
  4. Uplevel console shown, all others similar and are removed in the same manner.
2 Roof Console Retainer (Qty: 6)
