Liftgate Lock Striker Replacement

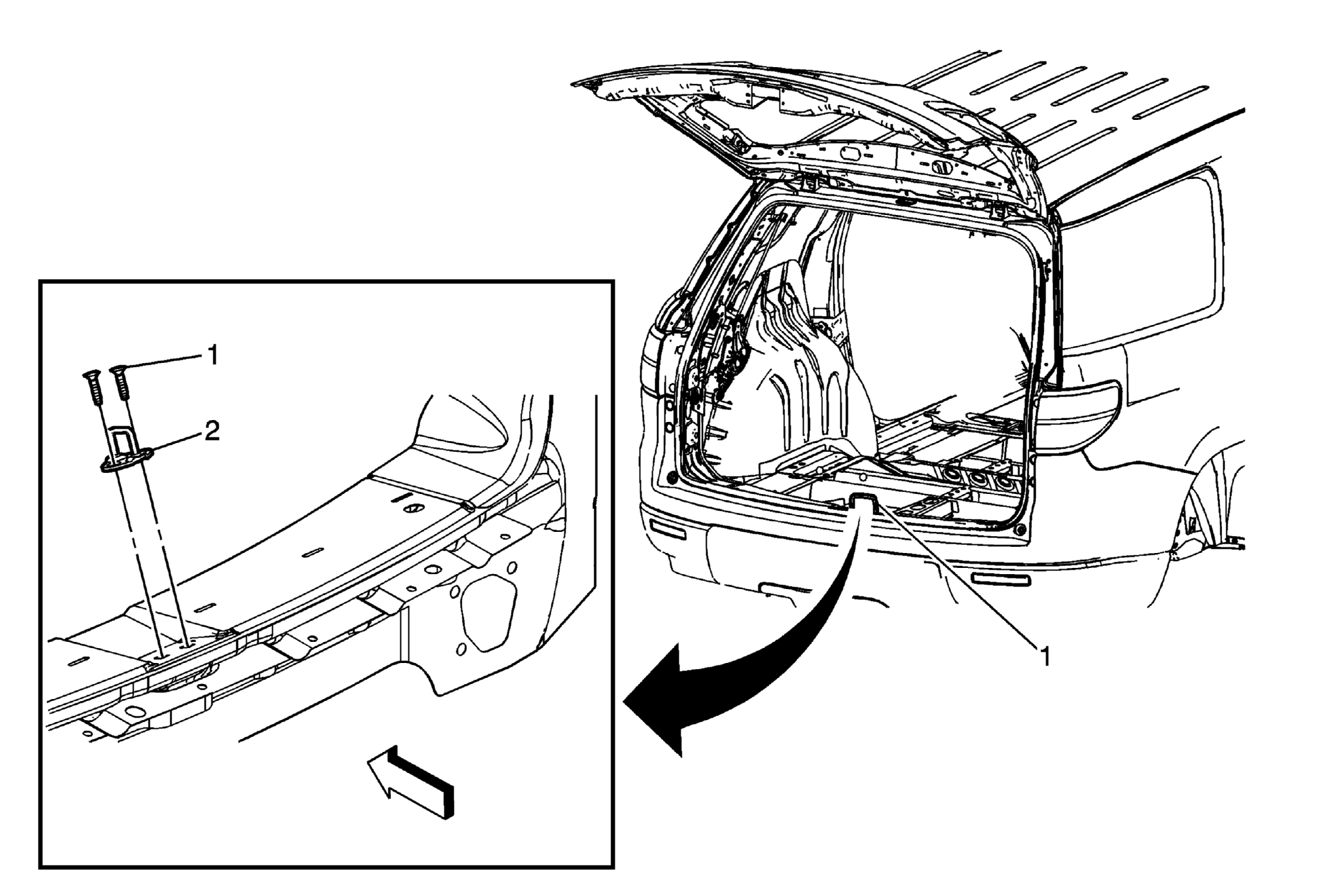

Fig 1: Liftgate Lock Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Liftgate Door Sill Plate. Refer to Liftgate Door Sill Plate Replacement (Enclave)Liftgate Door Sill Plate Replacement (Traverse)Liftgate Door Sill Plate Replacement (Acadia)
1	Liftgate Lock Striker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Liftgate Lock Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
