Liftgate Latch Replacement

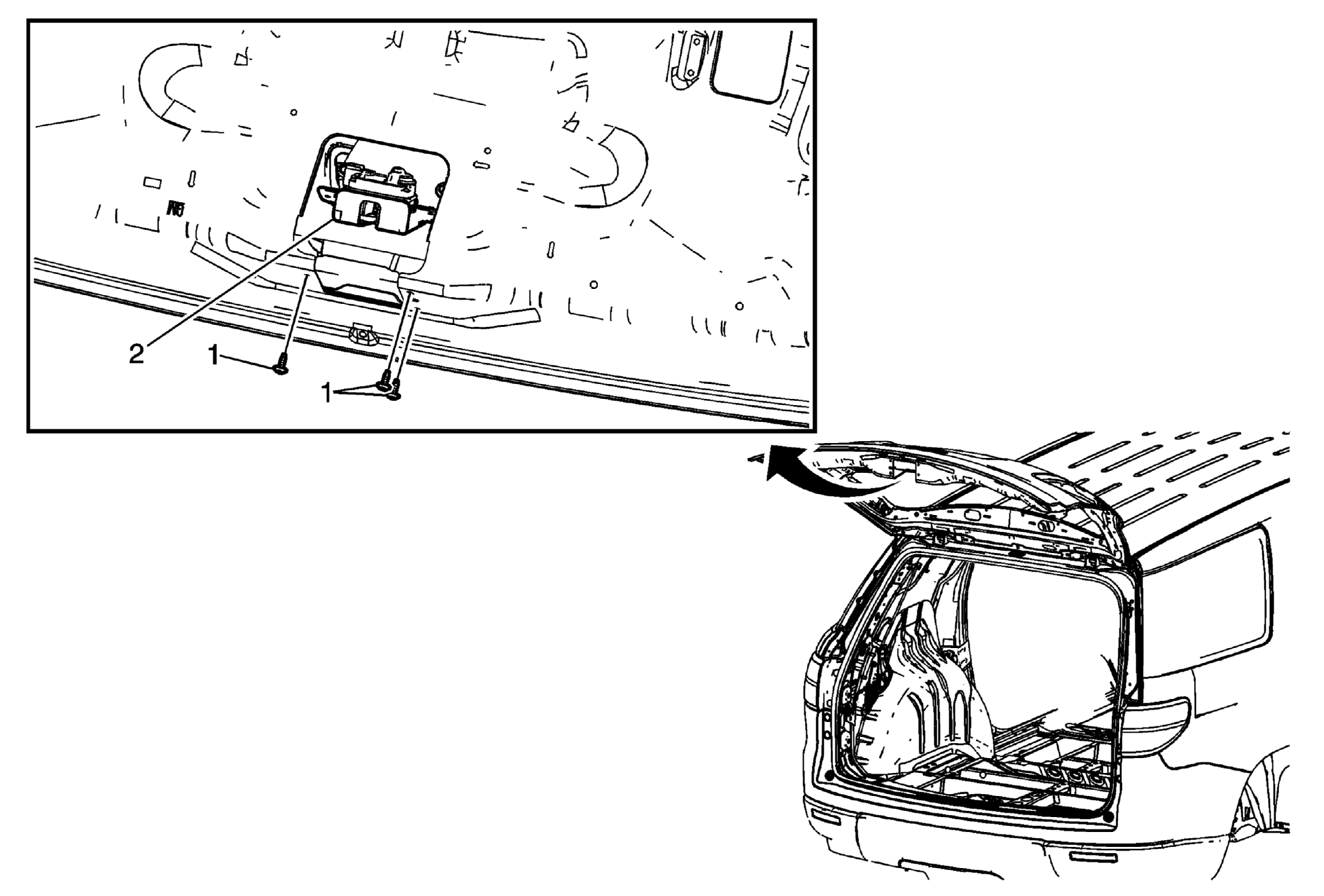

Fig 1: Liftgate Latch

GM1853203

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse)Liftgate Trim Panel Replacement (Enclave)Liftgate Trim Panel Replacement (Acadia) .

1

Liftgate Latch Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Liftgate Latch Assembly

Procedure

Disconnect the electrical connector.
Remove the plastic tether before installing the liftgate latch.
Calibrate the liftgate. Refer to Liftgate Calibration .
Adjust the liftgate if needed. Refer to Liftgate Adjustment (Acadia)Liftgate Adjustment (Enclave)Liftgate Adjustment (Traverse) .
