Front Side Door Latch Replacement

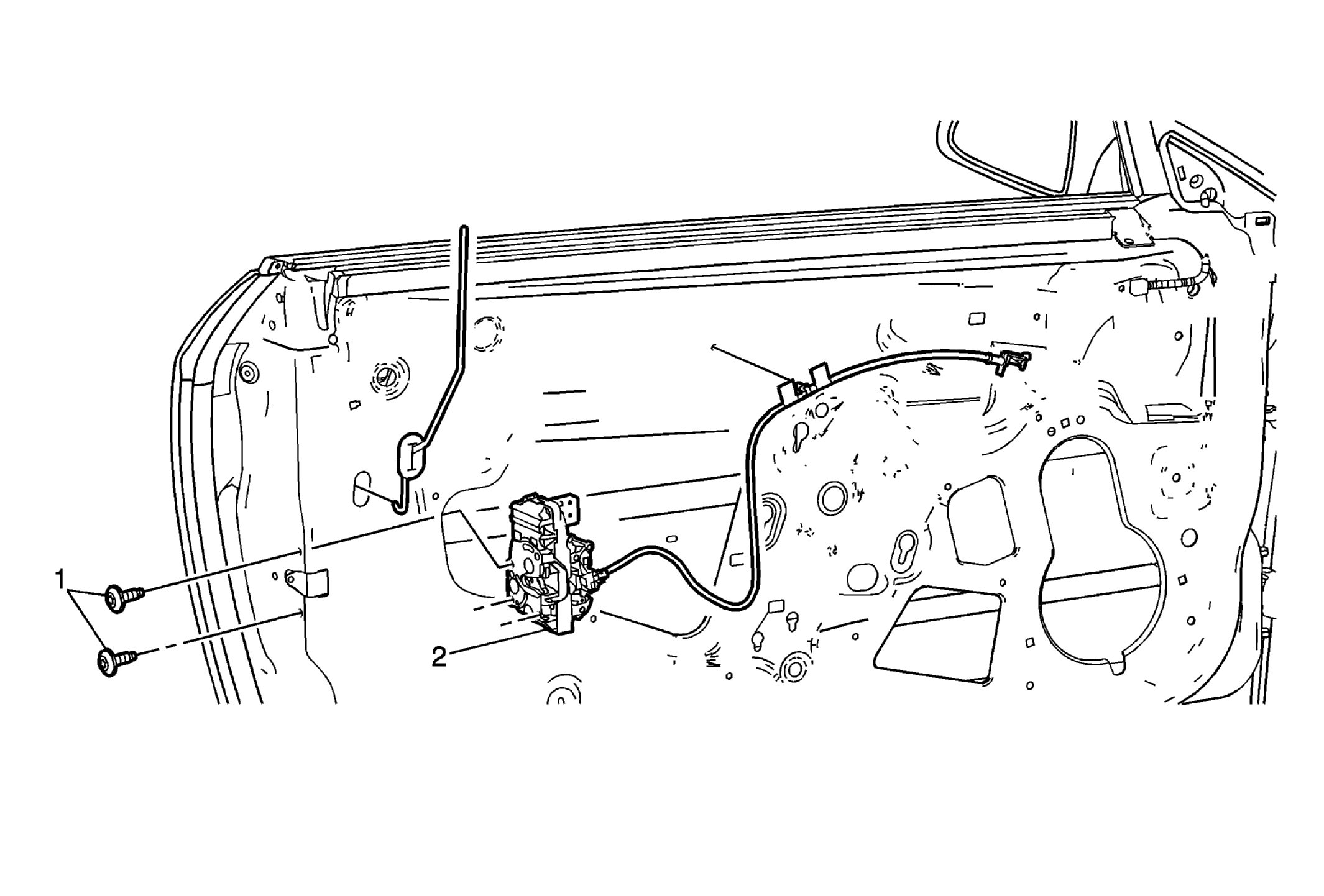

Fig 1: Front Side Door Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) , or Front Side Door Trim Panel Replacement - Right Side (Enclave)Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Latch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Release the door latch cable retainers from the door. Disconnect the door latch electrical connector. Tighten 10 N.m (89 lb in)
2	Front Side Door Latch Assembly Procedure Transfer the latch rod.

Callout

Component Name

Preliminary Procedures

Front Side Door Latch Screw (Qty: 2)

CAUTION:

Procedure

Tighten
10 N.m (89 lb in)

Front Side Door Latch Assembly
Procedure
Transfer the latch rod.
