Door Lock Cylinder Replacement

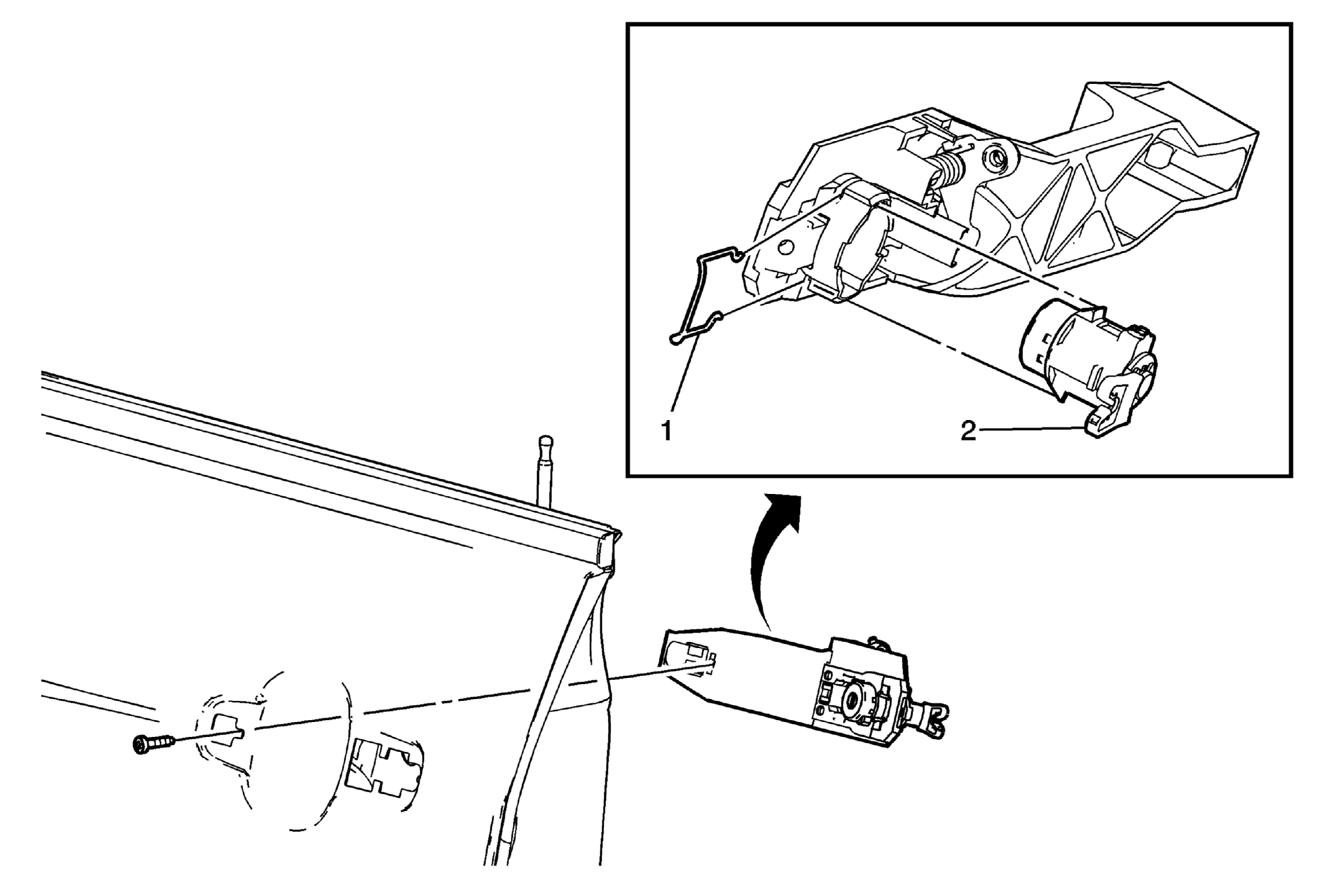

Fig 1: Door Lock Cylinder

GM1564391

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) , or Front Side Door Trim Panel Replacement - Right Side (Enclave)Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the outside door handle. Refer to Front Side Door Outside Handle Replacement .
Remove the front side door outside handle housing. Refer to Front Side Door Outside Handle Housing Replacement .

1

Lock Cylinder Clip
TIP: Use a flat-bladed tool to remove the clip.

2

Front Door Lock Cylinder
TIP: Pull the lock cylinder from the housing to remove.
