Windshield Washer Nozzle Replacement (Traverse)

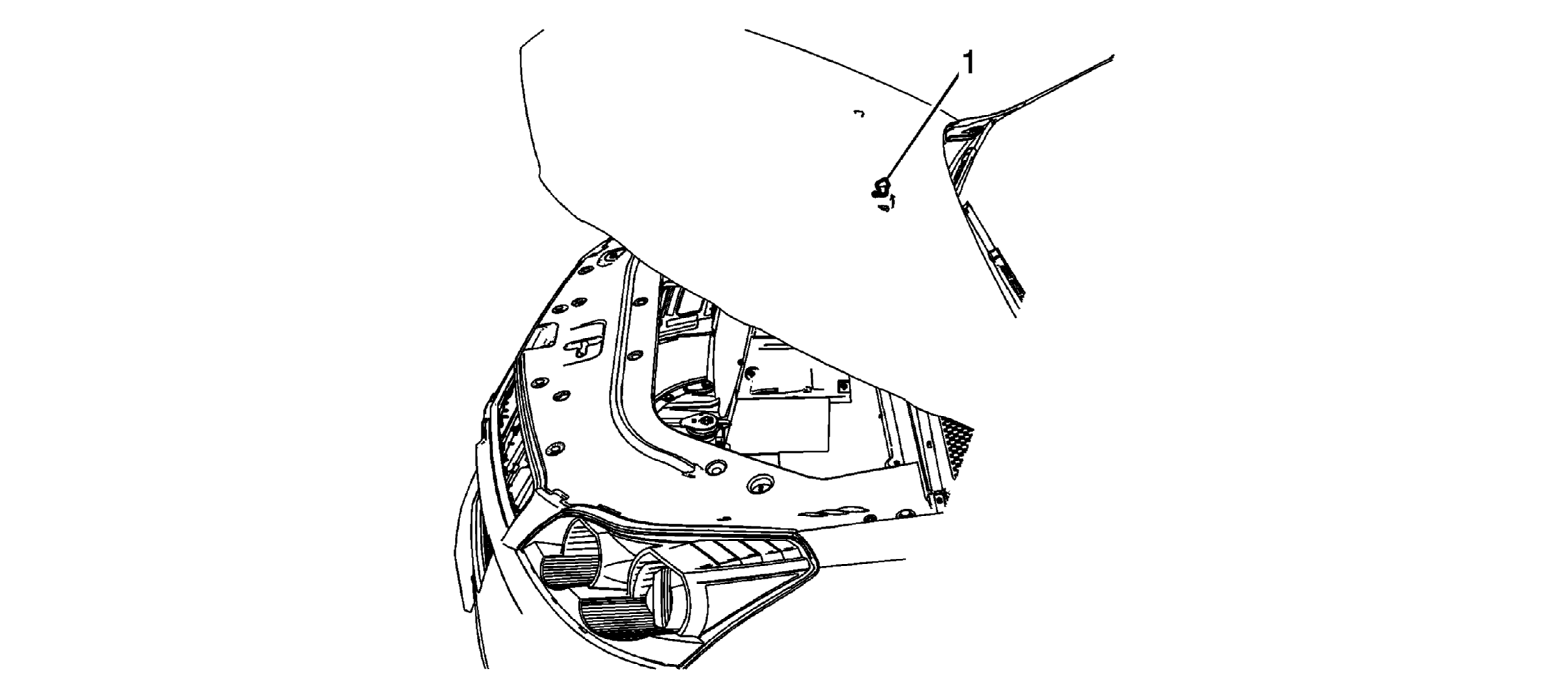

Fig 1: Windshield Washer Nozzle (Traverse)
GM2076860Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the hood insulator. Refer to Hood Insulator Replacement (Traverse) .
  2. Disconnect the windshield washer hose from both washer nozzles.
1 Windshield Washer Nozzle (Qty: 2)

Procedure

  1. If equipped with heated washer nozzles, disconnect the electrical connectors.
  2. Pinch the retainers on the underside of the washer nozzles.
  3. Push the nozzles outward from the hood in order to remove.
