Wiper Blade Element Check

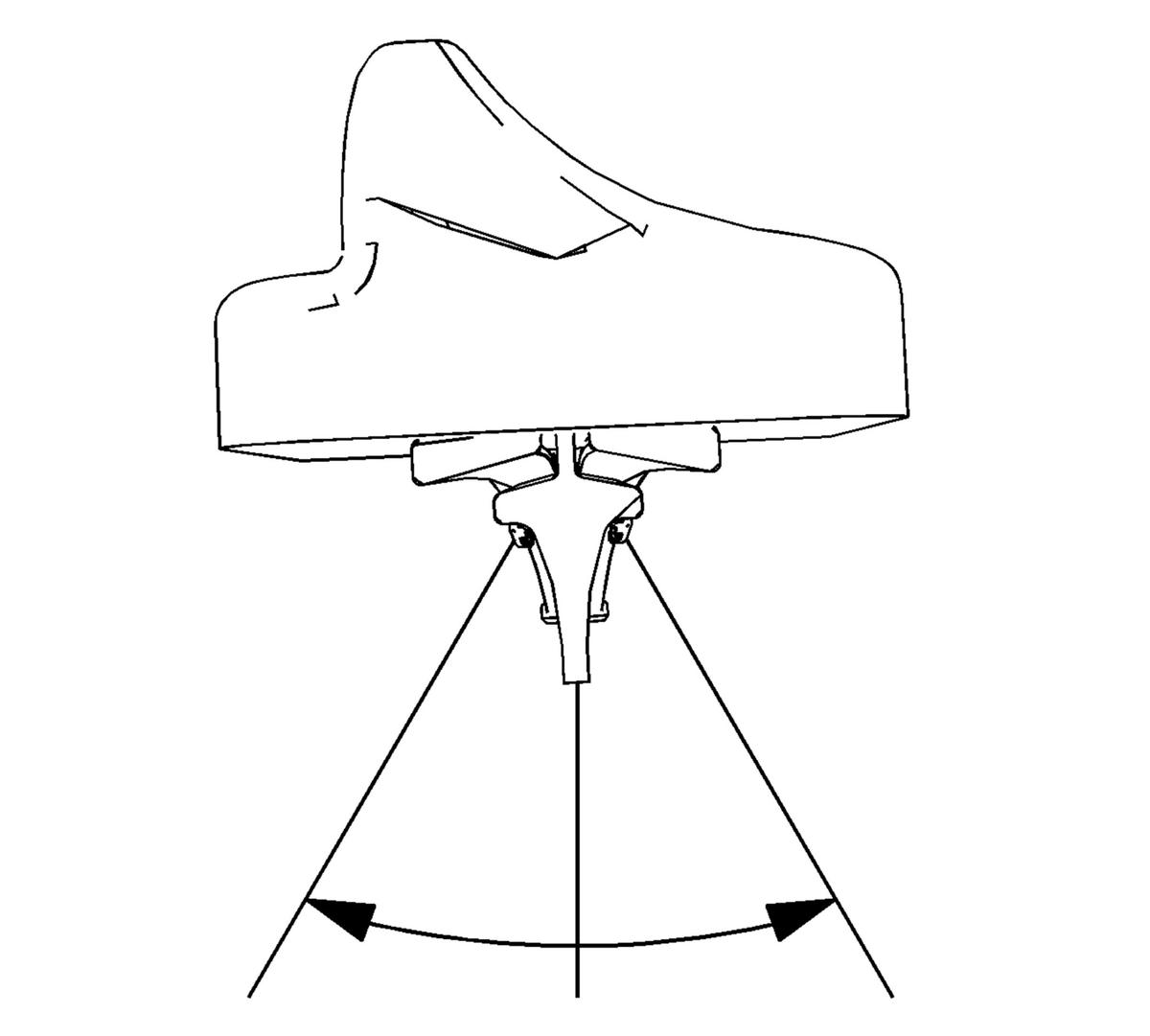

    Fig 1: Wiper Blade Element
    GM1582942Courtesy of GENERAL MOTORS COMPANY
  1. Remove the wiper blades from the wiper arms. Refer to Windshield Wiper Blade Replacement (Acadia) Windshield Wiper Blade Replacement (Enclave) Windshield Wiper Blade Replacement (Traverse) .
  2. Look down the length of the blade element.
  3. Replace the wiper blade element if the rubber element which contacts the glass is not on the centerline of the blade +/-15 degrees.
  4. Install the wiper blades on the wiper arms. Refer to Windshield Wiper Blade Replacement (Acadia) Windshield Wiper Blade Replacement (Enclave) Windshield Wiper Blade Replacement (Traverse) .
