Tire Pressure Indicator Sensor Replacement

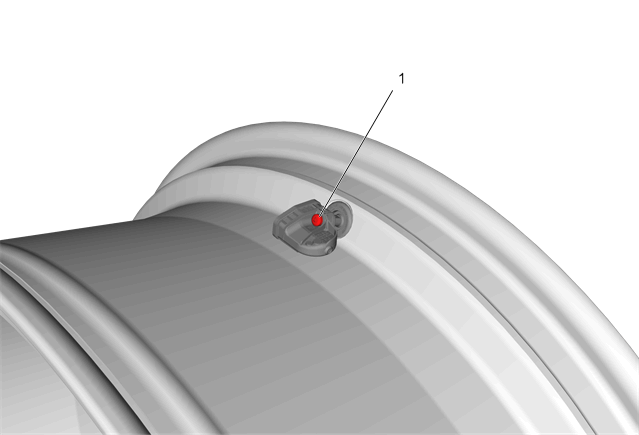

Fig 1: Tire Pressure Indicator Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lifting and Jacking the Vehicle . Tire and Wheel Removal and Installation . Tire Dismounting and Mounting .
1	Tire Pressure Indicator Sensor Bolt Procedures After removing the tire pressure indicator sensor bolt. Use a valve stem tool to remove and install the rubber valve stem. Perform the Tire Pressure Sensor Learn Procedure. Tire Pressure Indicator Sensor Learn CAUTION: Refer to Fastener Caution . NOTE: The words "This side up" are embossed on the sensor body to help with orientation. Tighten 1.4 N.m (12 lb in)

Callout

Component Name

Preliminary Procedures

Tire Pressure Indicator Sensor Bolt

Procedures

After removing the tire pressure indicator sensor bolt. Use a valve stem tool to remove and install the rubber valve stem.
Perform the Tire Pressure Sensor Learn Procedure. Tire Pressure Indicator Sensor Learn

CAUTION:

NOTE:

The words "This side up" are embossed on the sensor body to help with orientation.

Tighten
1.4 N.m (12 lb in)
