Steering Wheel Secondary/Configurable Control Wiring Schematics: UK3

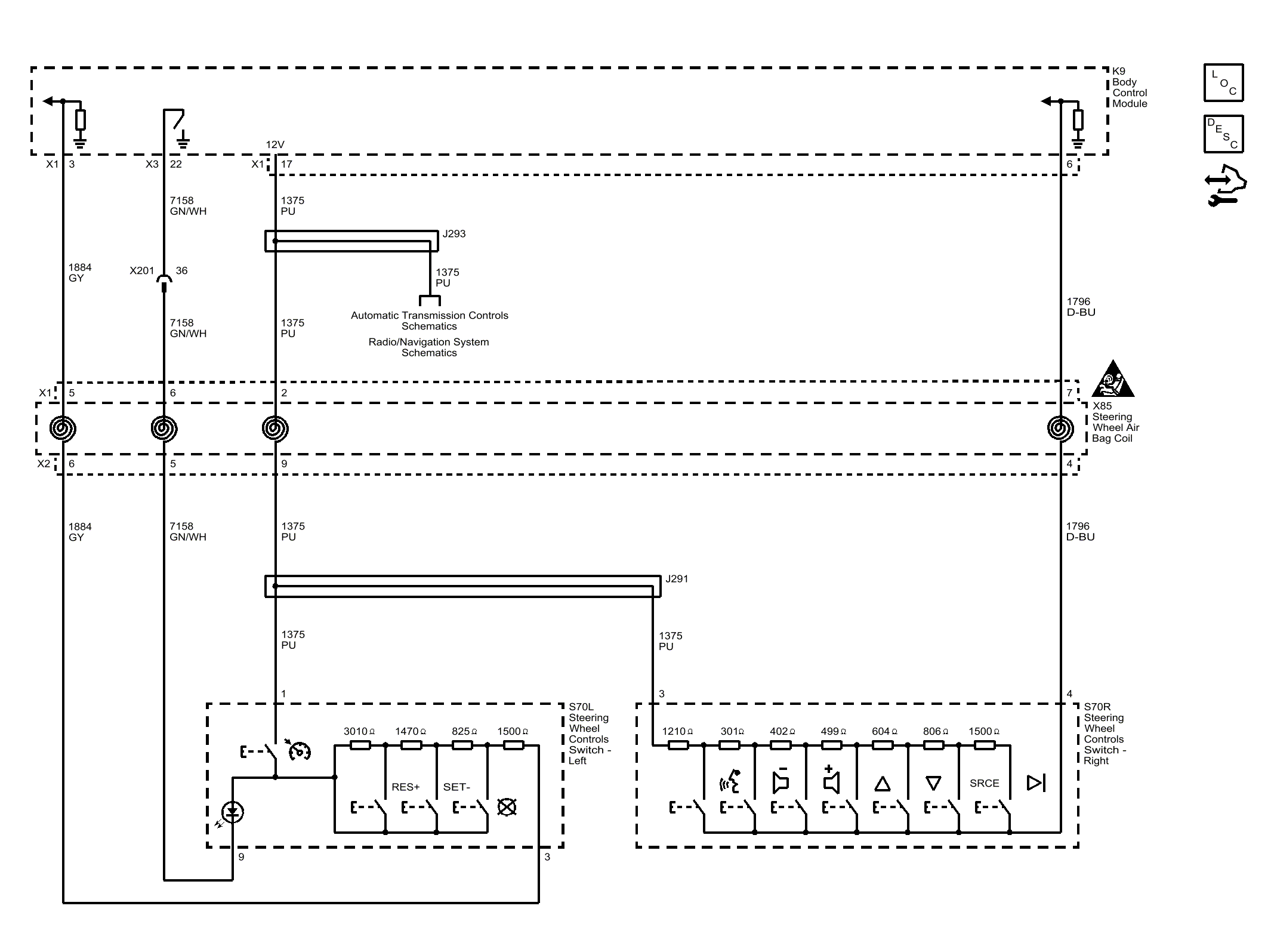

Fig 1: UK3

GM4405836

Courtesy of GENERAL MOTORS COMPANY
