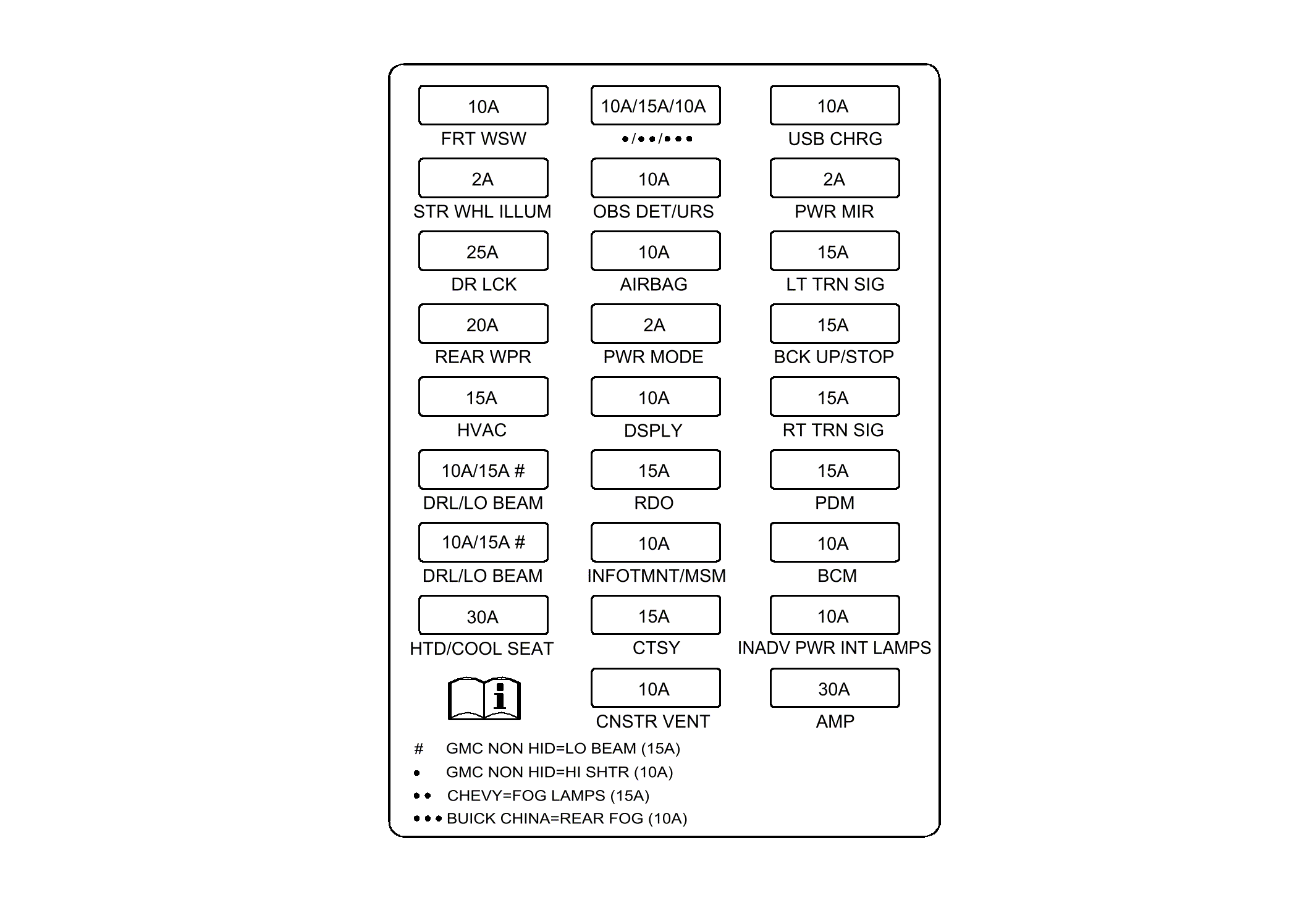

X51A Fuse Block - Instrument Panel Bottom Label
FUSE BLOCK - I/P BOTTOM FUSE IDENTIFICATION LEGEND
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | USB CHRG Fuse | F1DA | 10A | KR135A Accessory Power Relay 1, X92RA USB Receptacle - Rear Compartment |
| 2 | PWR/MIR | F2DA | 2A | S52 Outside Rearview Mirror Switch (DL6 or DS3) |
| 3 | LT/TRN/SIG | F3DA | 15A | K9 Body Control Module |
| 4 | BCK/UP/STOP | F4DA | 15A | K9 Body Control Module, S71 Steering Column Tilt and Telescope Switch(N38) |
| 5 | RT/TRN/SIG | F5DA | 15A | K9 Body Control Module |
| 6 | PDM | F6DA | 15A | K95A Liftgate Unlatch Relay (TB4) |
| 7 | BCM | F7DA | 10A | K9 Body Control Module |
| 8 | INADV/PWR/LED | F8DA | 10A | K9 Body Control Module |
| 9 | AMP | F9DA | 30A | T3 Audio Amplifier (UQA or UQS) |
| 10 | RR FOG | F10DA | 10A | KR57 Rear Fog Lamp Relay (W49 with T79) |
| 11 | MSM | F11DA | 10A | S25 Garage Door Opener (UG1), K40 Seat Memory Control Module (AG3), and K41 Front and Rear Parking Assist Control Module (UD7) |
| 12 | AIRBAG | F12DA | 10A | B60 Passenger Presence Sensor, K36 Inflatable Restraint Sensing and Diagnostic Module |
| 13 | PWR MODE | F13DA | 2A | S39 Ignition Switch, K64 Content Theft Deterrent Control Module |
| 14 | DSPLY | F14DA | 10A | P6 Clock (W49), X84 Data Link Connector, P16 Instrument Cluster, K39 Liftgate Control Module (TB5), K77 Remote Control Door Lock Receiver |
| 15 | RDO | F15DA | 15A | A11 Radio |
| 16 | INFOTMNT | F16DA | 10A | A12 Digital Radio Receiver Control Module (U2K or UBS), P23 Video Display (U42), A21 Radio/HVAC Controls - Auxiliary (ULD) |
| 17 | CTSY | F17DA | 15A | K9 Body Control Module |
| 18 | CNSTR/VENT | F18DA | 10A | Q13 Evaporative Emission Vent Solenoid Valve |
| 19 | FRT/WSW | F19DA | 10A | G24 Windshield Washer Pump |
| 20 | STR/WHL/ILLUM | F20DA | 2A | S70L Steering Wheel Controls Switch - Left, S70R Steering Wheel Controls Switch - Right (UK3) |
| 21 | DR/LCK | F21DA | 25A | KR97 Door Lock Relay, KR92D Driver Door Unlatch Relay, KR90 Door Unlock Relay |
| 22 | REAR WPR | F22DA | 20A | M45 Rear Wiper Motor, KR6 Rear Window Washer Pump Relay |
| 23 | HVAC | F23DA | 15A | K9 Body Control Module, P29 Head-Up Display (UV6), K33 HVAC Control Module |
| 24 | DRL | F24DA | 15A/10A | KR42 Daytime Running Lamps Relay |
| 25 | DRL 2 | F25DA | 10A | KR42L Daytime Running Lamp Relay - Left (Z88 with TVD) |
| 26 | HTD/COOL SEAT | F26DA | 30A | K29D Seat Heating Control Module - Driver (KA1 without A45) or K53D Seat Blower Assembly - Driver Back, K55D Seat Blower Assembly - Driver Cushion, K53P Seat Blower Assembly - Passenger Back, and K55P Seat Blower Assembly - Passenger Cushion (KB6) |
