Park Assist - Power, Ground, and Serial Data (UD5/UD7/UKG)

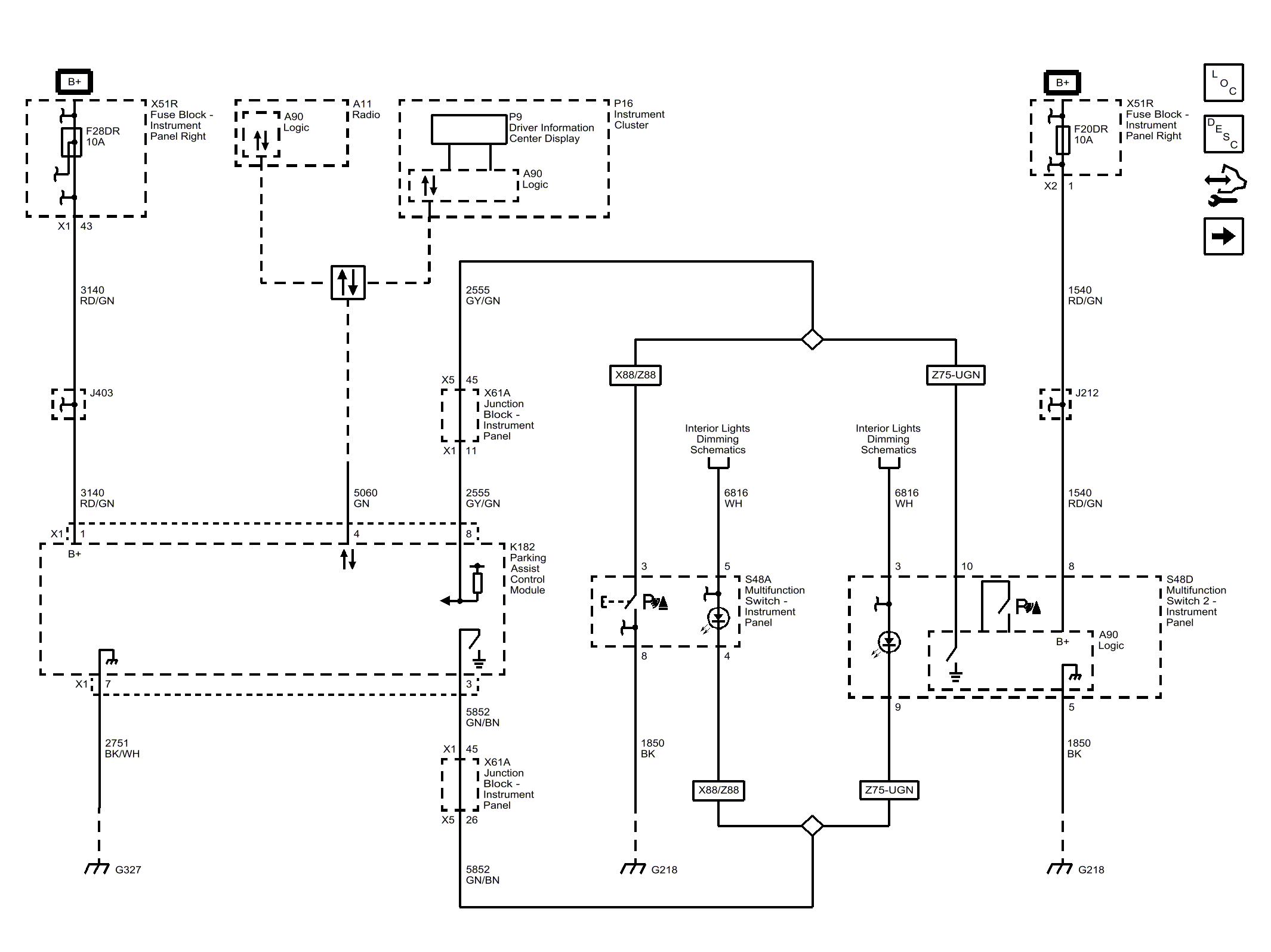

Fig 1: Park Assist - Power, Ground, and Serial Data (UD5/UD7/UKG)

GM4499965

Courtesy of GENERAL MOTORS COMPANY
