Front Seat Belt Latch Replacement

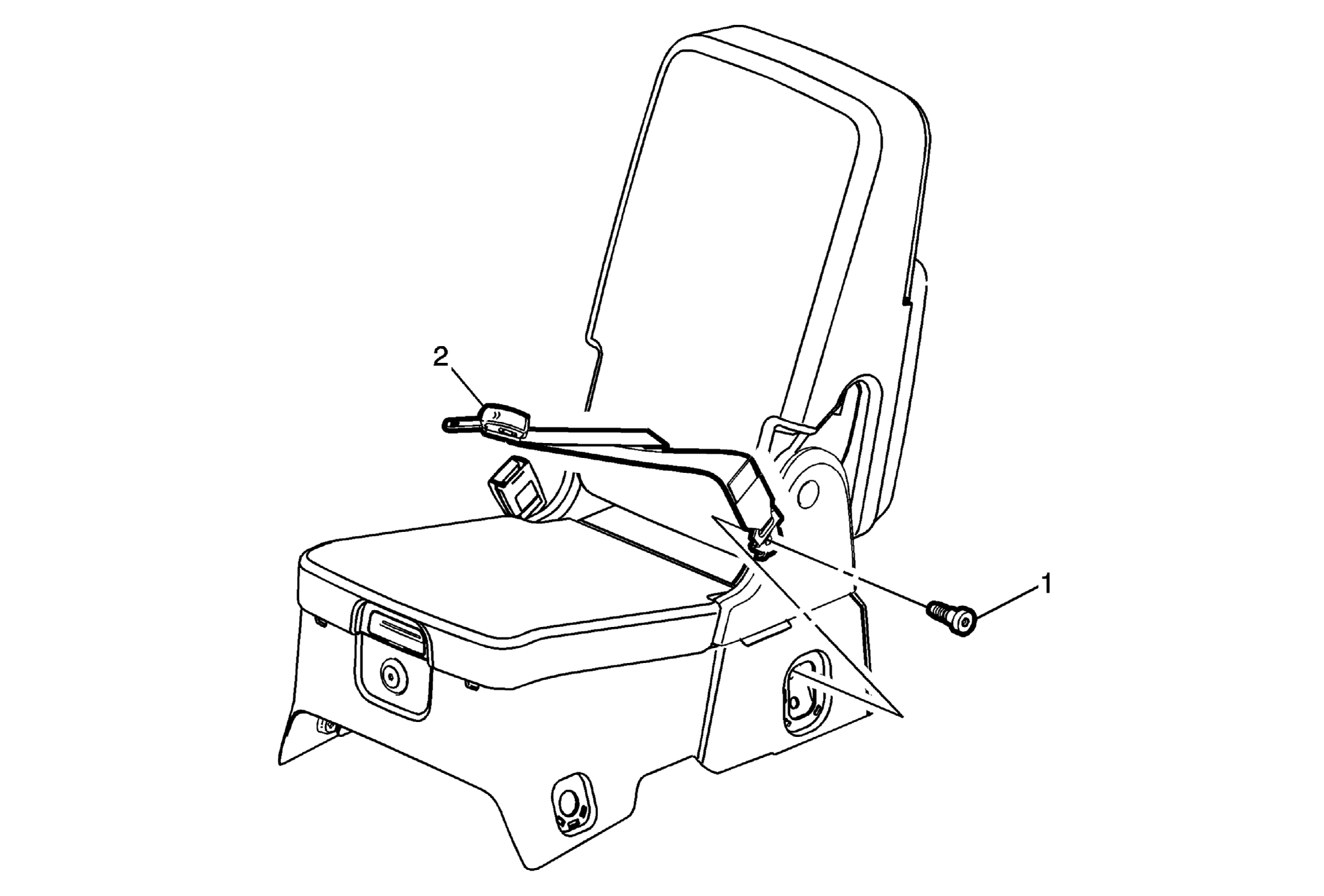

Fig 1: Front Seat Belt Latch (Center with AZ3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front center seat. Refer to Front Center Seat Removal and Installation .
1	Front Seat Belt Latch Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Latch Procedure Disconnect the electrical connector.
