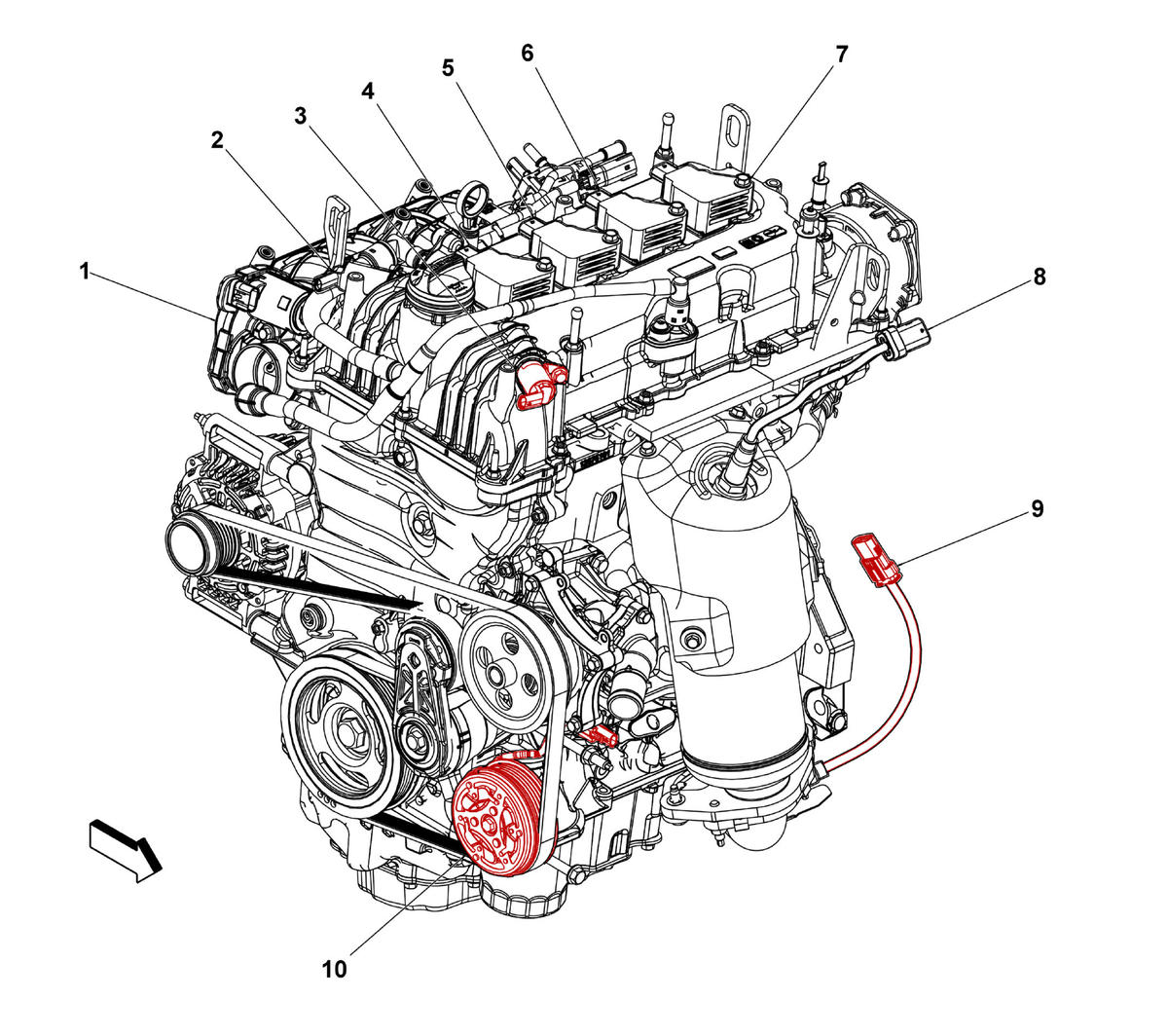

Engine Components - Right Front (LV7)
Engine Components - Right Front (LV7)
| Items |
|---|
| 1. Q38 Throttle Body Q38 Throttle Body |
| 2. Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 3. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 4. T8A Ignition Coil 1 (LQ5 or LV7) T8A Ignition Coil 1 (LV7) |
| 5. T8B Ignition Coil 2 (LQ5 or LV7) T8B Ignition Coil 2 (LV7) |
| 6. T8C Ignition Coil 3 (LQ5 or LV7) T8C Ignition Coil 3 (LV7) |
| 7. T8D Ignition Coil 4 (LV7) T8D Ignition Coil 4 (LV7) |
| 8. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 9. B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 10. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
