Engine Components - Lower Rear (L5Q)

Engine Components - Lower Rear (L5Q)

Items
1. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
2. B68 Knock Sensor (L5Q or LV7) B68 Knock Sensor (L5Q)B68 Knock Sensor (LV7)
3. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve
4. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor

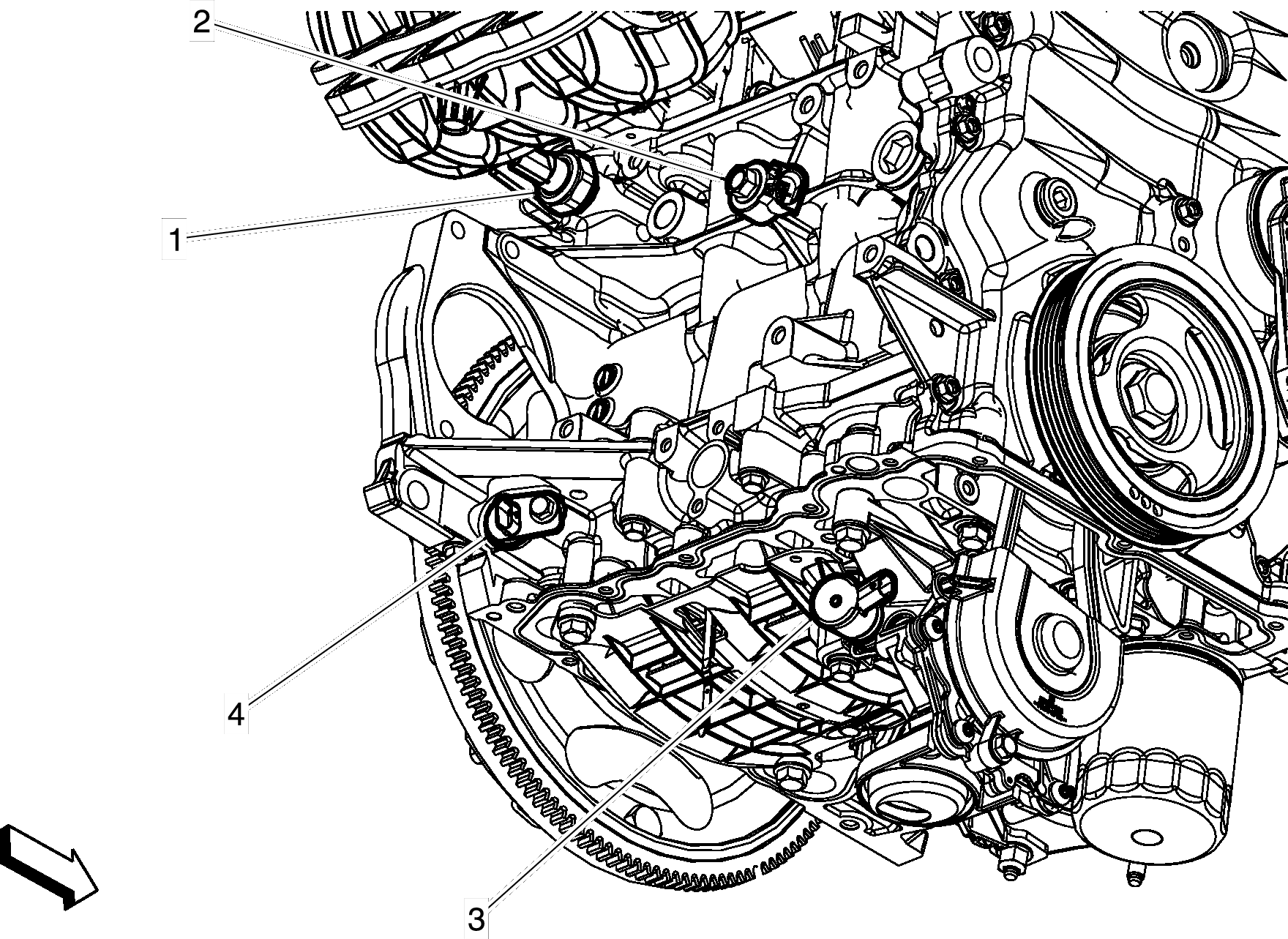

Fig 1: Engine Components - Lower Rear (L5Q)
GM4491018Courtesy of GENERAL MOTORS COMPANY
