Engine Components - Left Rear (L5Q)

Engine Components - Left Rear (L5Q)

Items
1. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor
2. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
3. B75C Multifunction Intake Air Sensor (L5Q or LV7) B75B Mass Air Flow/Intake Air Temperature Sensor
4. Q38 Throttle Body Q38 Throttle Body
5. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
6. G13 Generator G13 Generator X1G13 Generator X2
7. M64 Starter Motor M64 Starter Motor
8. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor

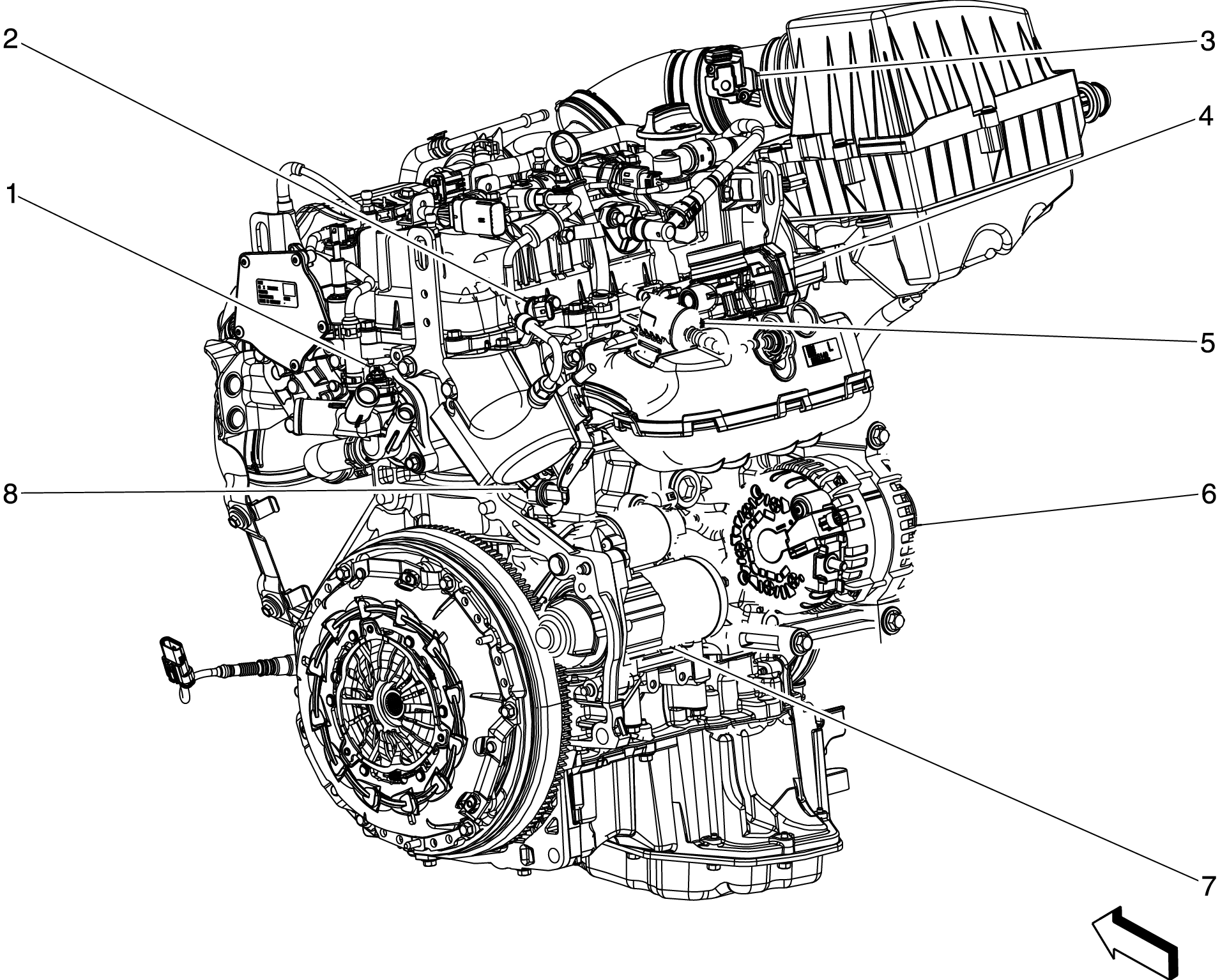

Fig 1: Engine Components - Left Rear (L5Q)
GM4496558Courtesy of GENERAL MOTORS COMPANY
