Digital Radio Receiver Bracket Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

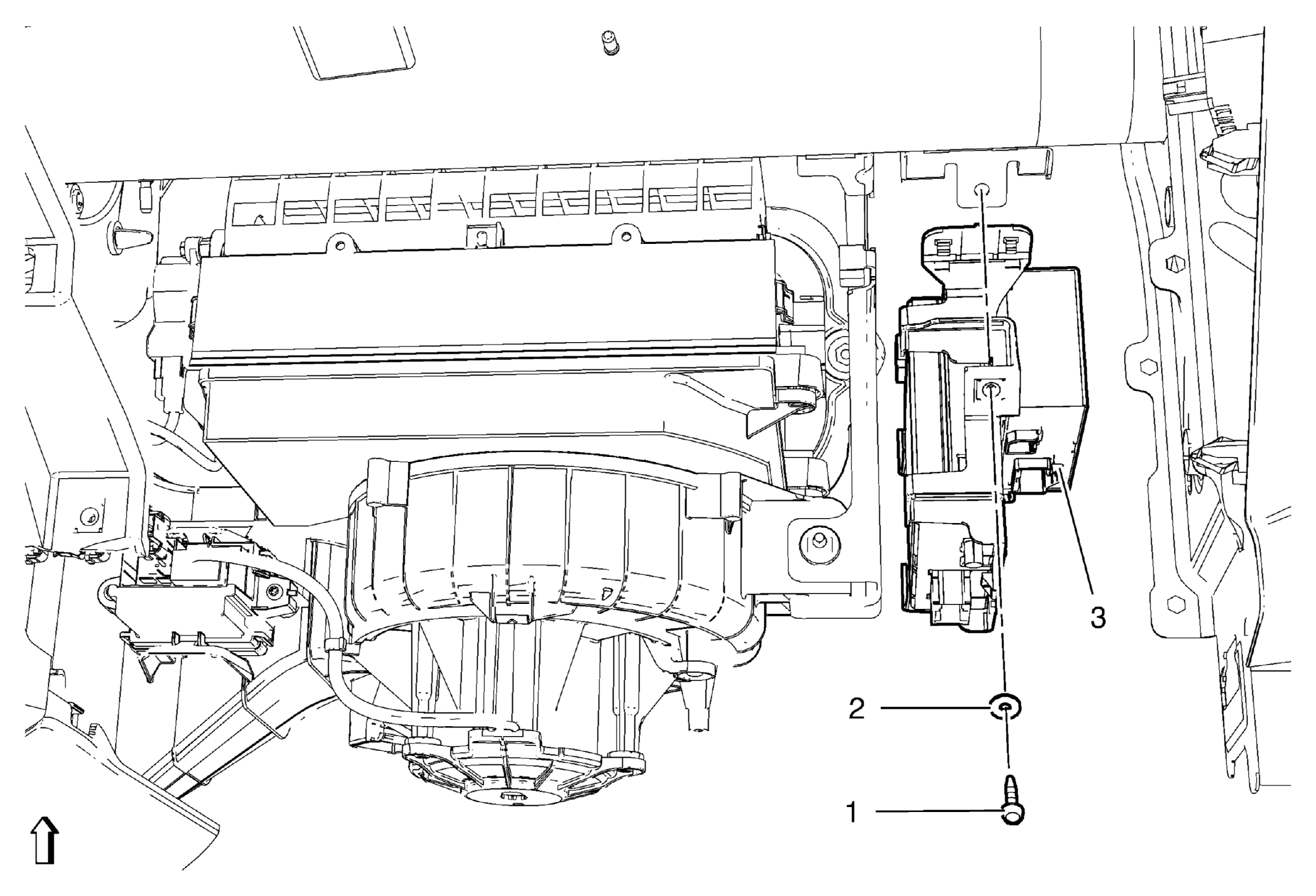

Callout	Component Name
Preliminary Procedure Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Digital Radio Receiver Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Digital Radio Receiver Bracket Washer
3	Digital Radio Receiver Bracket Procedure Remove digital radio receiver. Refer to Digital Radio Receiver Replacement . If equipped, remove multimedia player interface module. Refer to Multimedia Player Interface Module Replacement .
