Installation Procedure

Fuel Tank Heat Shield (2) - Install

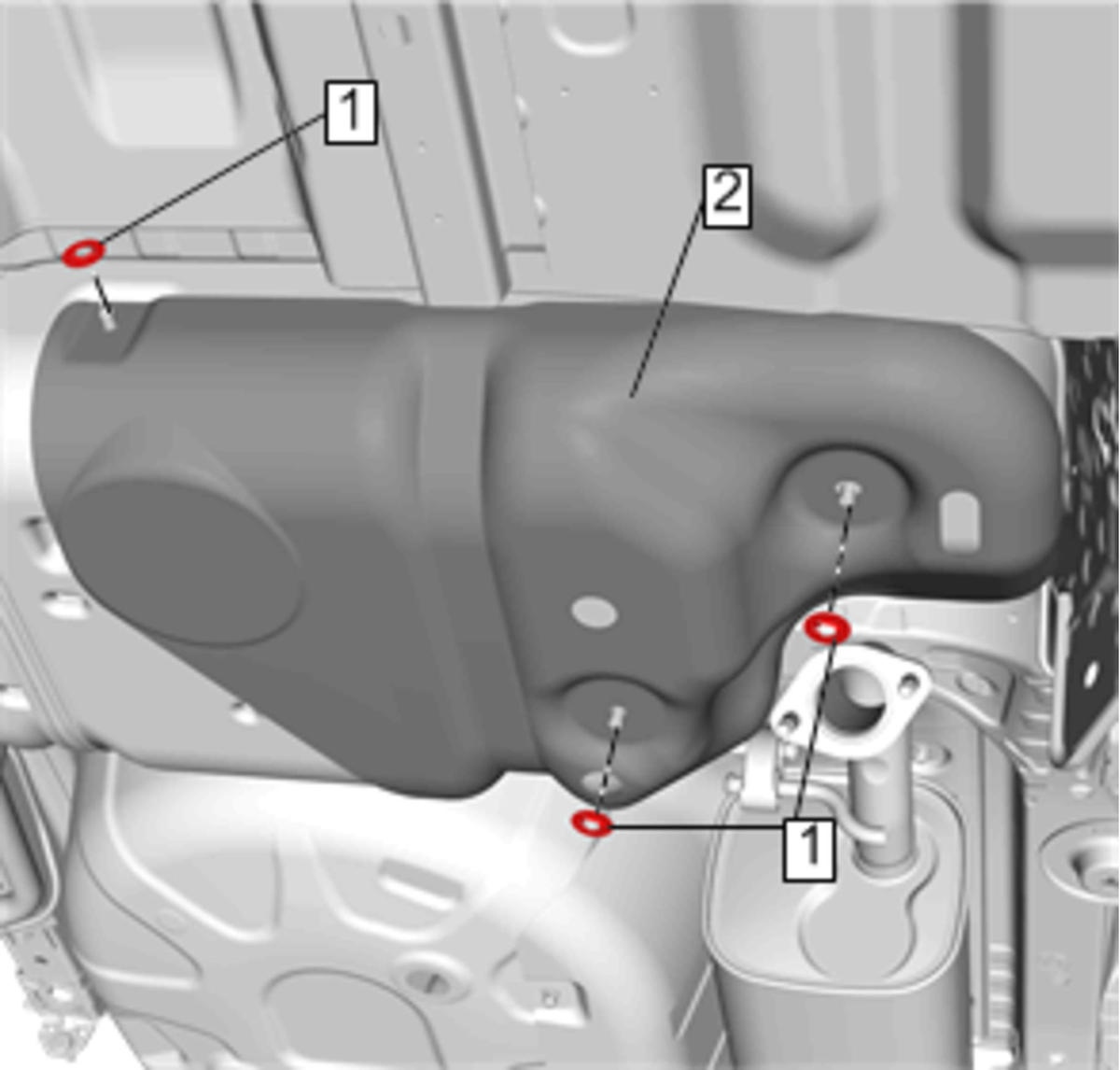

Fig 1: Fuel Tank Heat Shield And Retainer
Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Heat Shield Retainer (1) - Install [3x]
Fuel Tank Strap (2) - Install

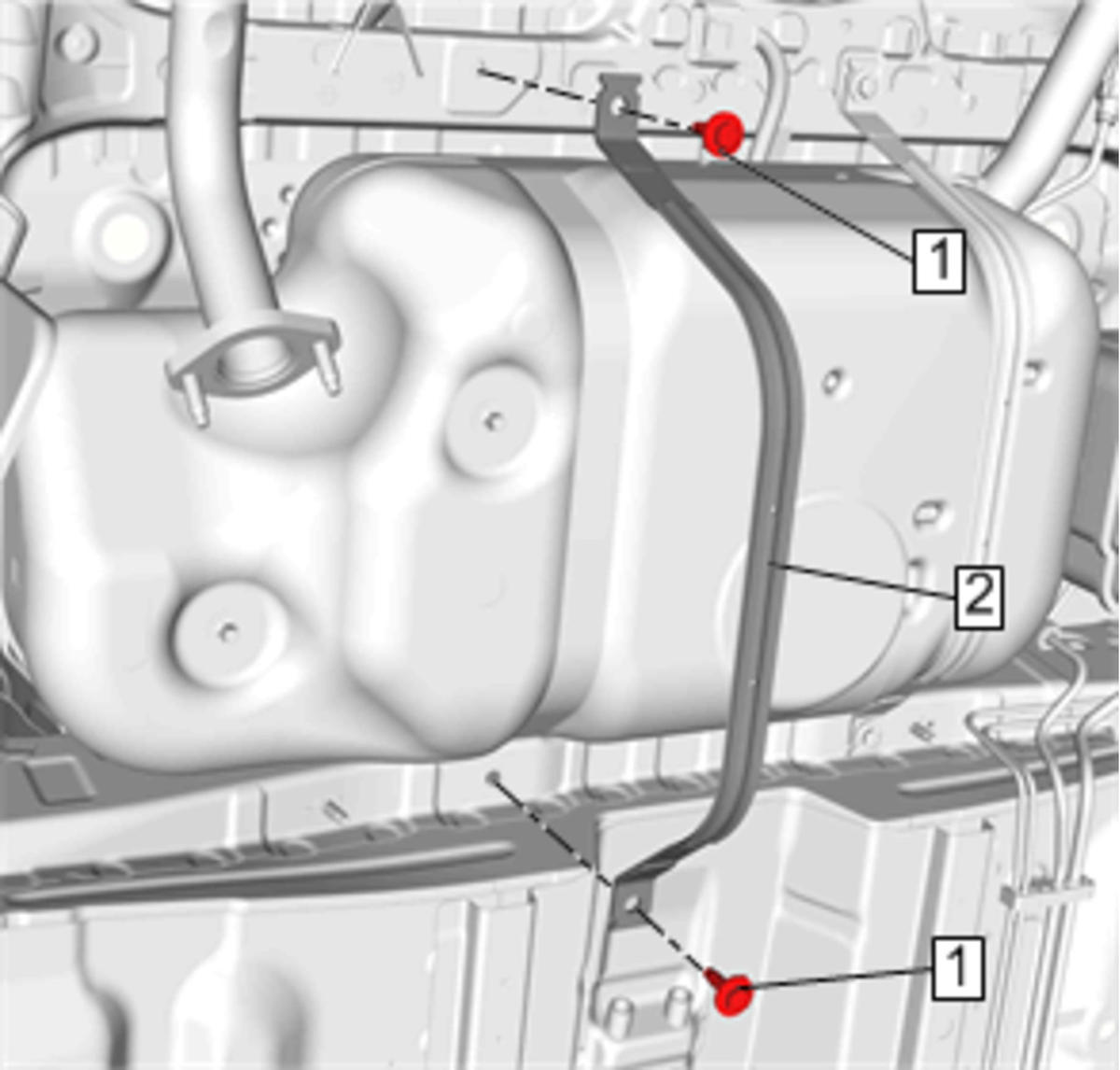

Fig 2: Fuel Tank Strap Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Fuel Tank Strap Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Exhaust Muffler - Install - Exhaust Muffler Replacement (L5Q) Exhaust Muffler Replacement (LV7)
Lower the vehicle. Refer to Lifting and Jacking the Vehicle
