Installation Procedure

  1. Exhaust Front Bracket (1) - Install

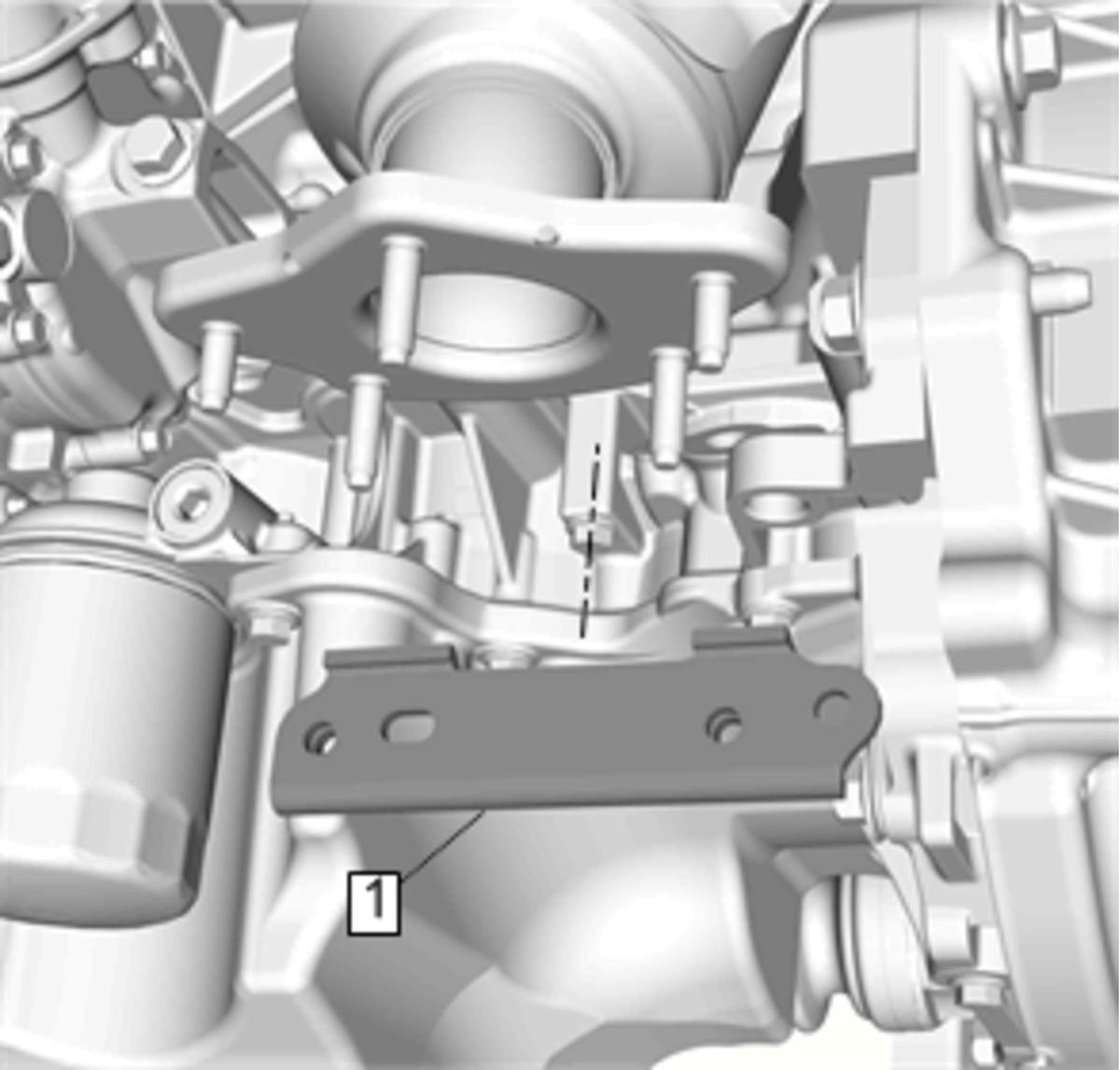

    Fig 1: Exhaust Front Bracket
    GM4748859Courtesy of GENERAL MOTORS COMPANY
  2. Exhaust Front Bracket Screw (1) - Install and tighten [2x] 22 N.m (16 lb ft)

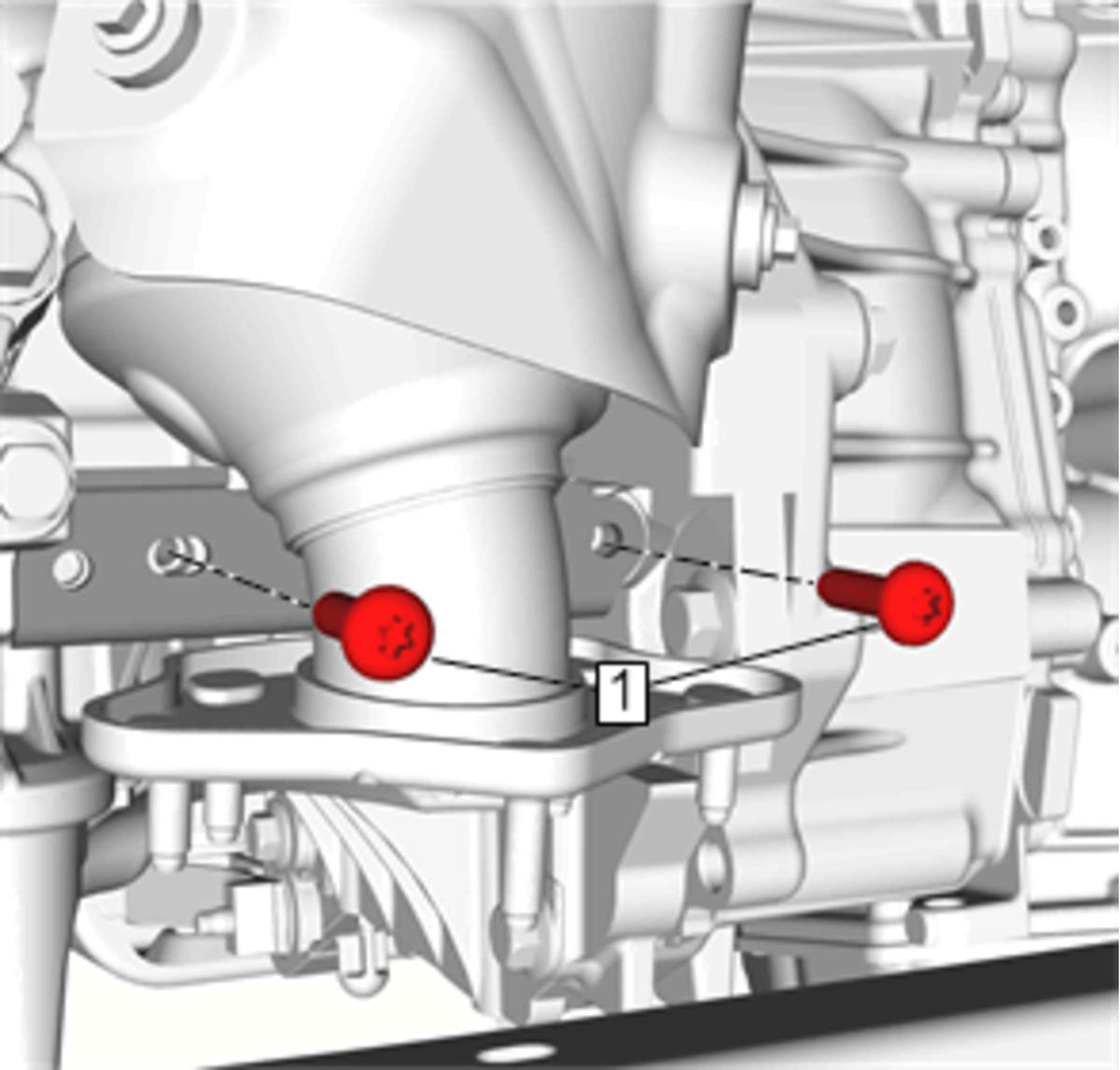

    Fig 2: Exhaust Front Bracket Screw
    GM4748858Courtesy of GENERAL MOTORS COMPANY
  3. Catalytic Converter Brace - Install - Catalytic Converter Brace Replacement
  4. Lower the vehicle. Refer to Lifting and Jacking the Vehicle
