Starter Replacement (without Start/Stop)

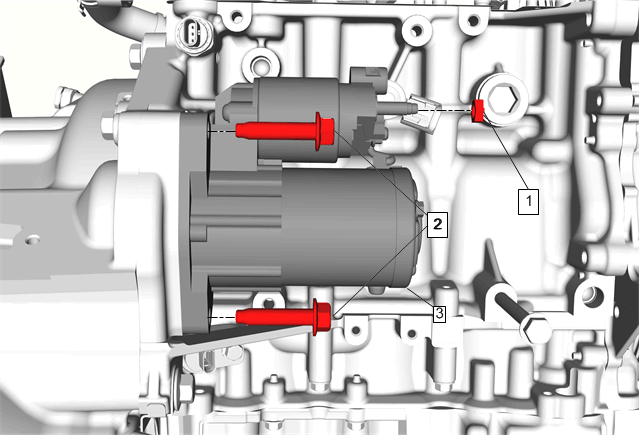

Fig 1: Starter (without Start/Stop)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q)Exhaust Muffler Replacement (LV7) . Disconnect the connector. Remove the generator B (+) Nut.
1	Starter Solenoid B (+) Nut CAUTION: Refer to Fastener Caution . Procedure Remove the starter solenoid B (+) nut. Tighten 12.5 N.m (111 lb in)
2	Starter Retaining Bolt (Qty: 2) Procedure Remove the starter retaining bolts. Tighten 58 N.m (43 lb ft)
3	Starter Procedure Transfer parts as necessary.
