Removal Procedure

  1. Remove the body wiring harness cable nut (1) and the body wiring harness cable (3).

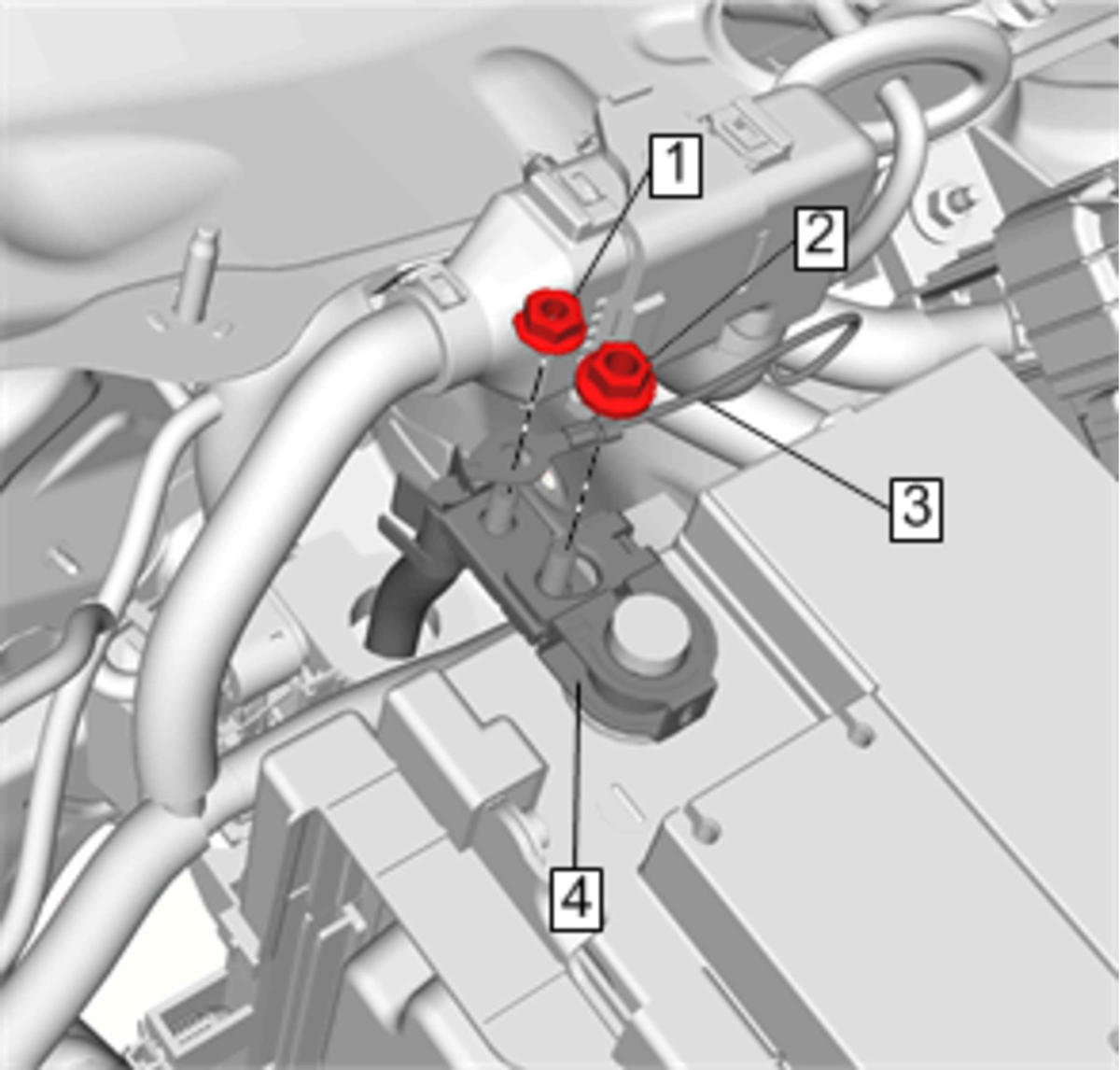

    Fig 1: Battery Negative Cable
    GM4009336Courtesy of GENERAL MOTORS COMPANY
    WARNING: Refer to Battery Disconnect Warning .
  2. Remove the battery negative cable nut (2) and the battery negative cable (4).
  3. Remove the battery. Refer to Battery Replacement .
  4. Disconnect the body harness connector (1) from the battery current sensor (2).
    Fig 2: Body Harness Connector And Battery Current Sensor
    GM4009328Courtesy of GENERAL MOTORS COMPANY
  5. Remove the battery negative and positive cable ground nut (3) and the battery negative cable from the frame rail.
  6. Remove the battery negative cable (1) from the battery current sensor (2).
    Fig 3: Battery Current Sensor And Battery Negative Cable
    GM4009329Courtesy of GENERAL MOTORS COMPANY
    NOTE: Note the orientation of the battery current sensor when removing.
