Installation Procedure

  1. Install the battery negative cable (2) to the battery.

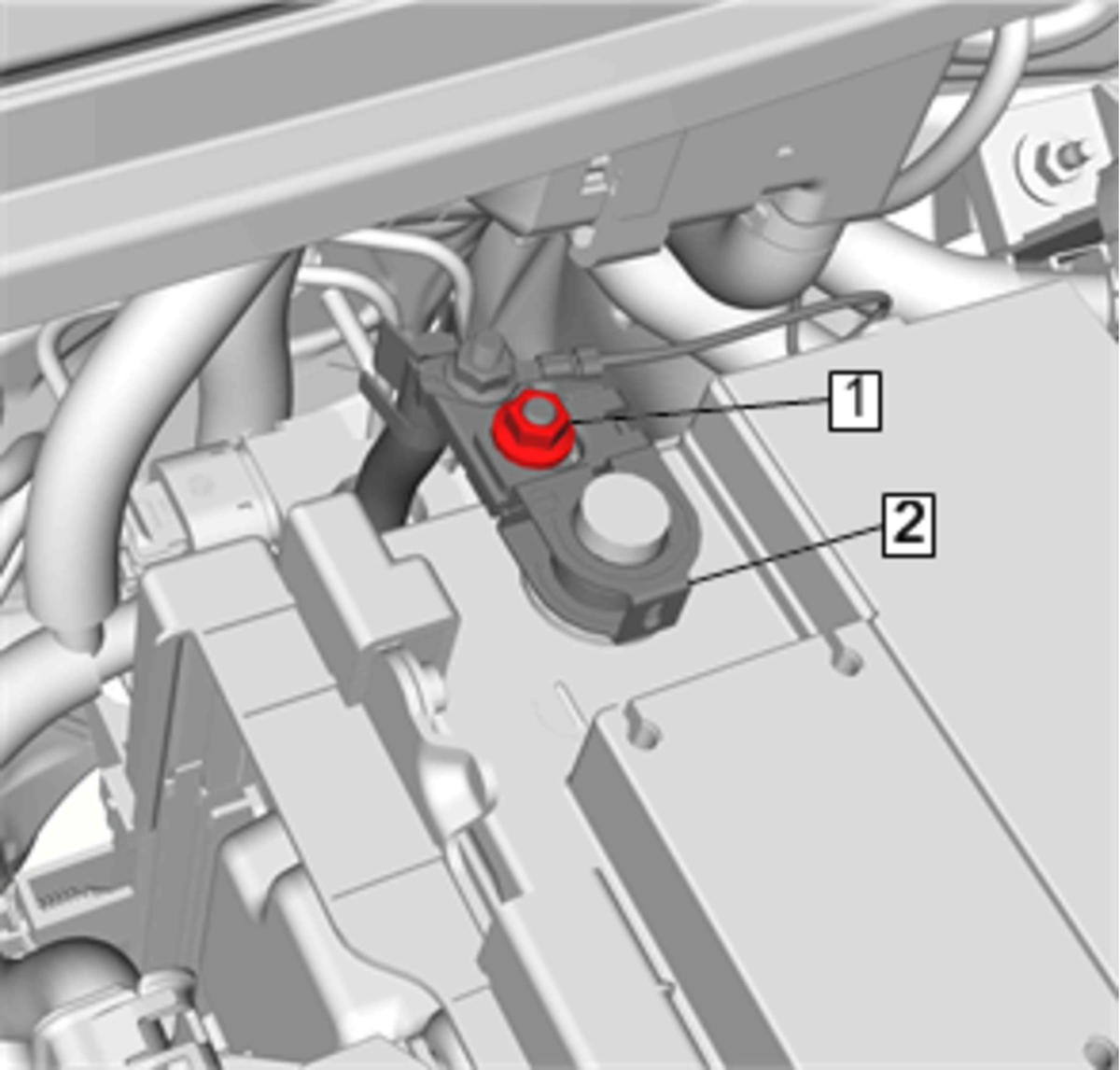

    Fig 1: Battery Negative Cable Nut
    GM4009334Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery negative cable nut (1) and tighten the nut to 6 N.m (53 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Insert the ignition key and turn the ignition to the ON position.
  4. Program all of the customer radio station presets and set the radio clock to the current time.
