Rear Side Door Window Switch Replacement

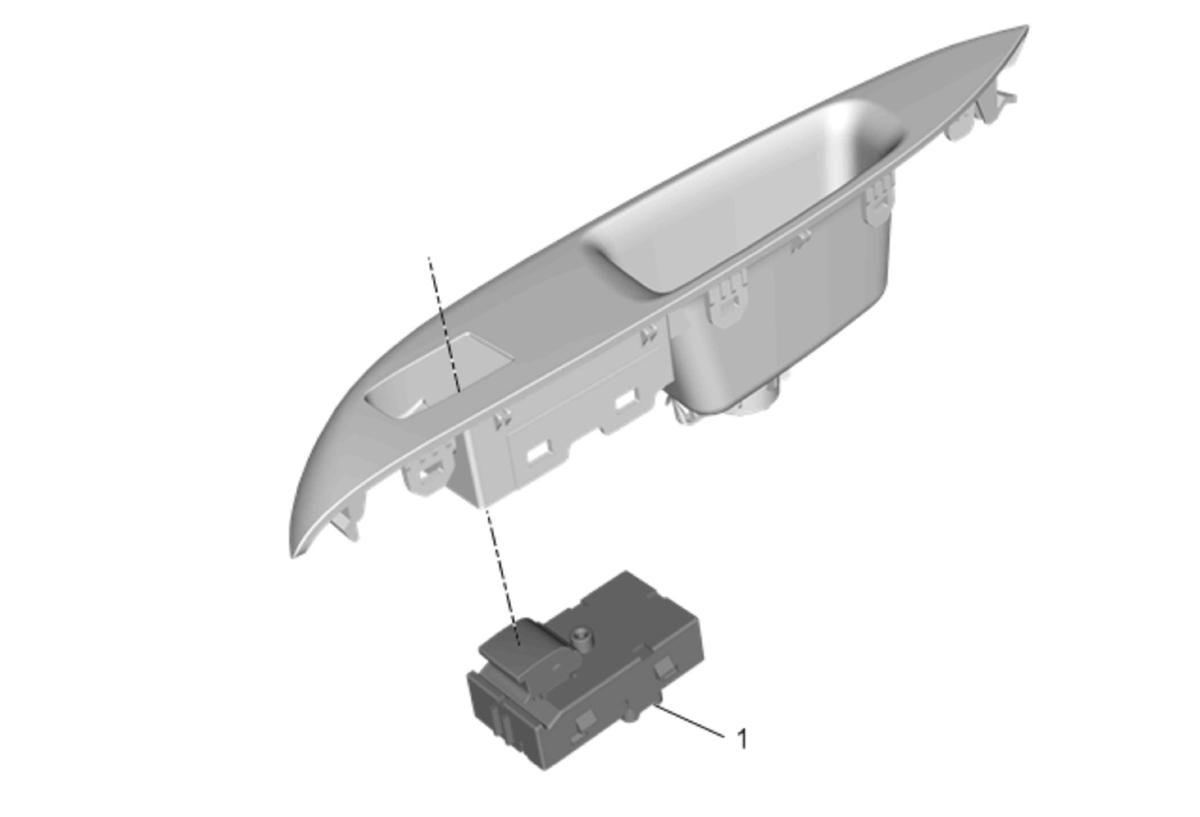

Fig 1: Rear Side Door Window Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the Rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the Rear side door armrest switch mount plate. Refer to Rear Side Door Armrest Switch Mount Plate Replacement .
1	Rear Side Door Window Switch Assembly Procedure Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the Rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the Rear side door armrest switch mount plate. Refer to Rear Side Door Armrest Switch Mount Plate Replacement .

Rear Side Door Window Switch Assembly
Procedure
Disconnect electrical connector.
