Installation Procedure

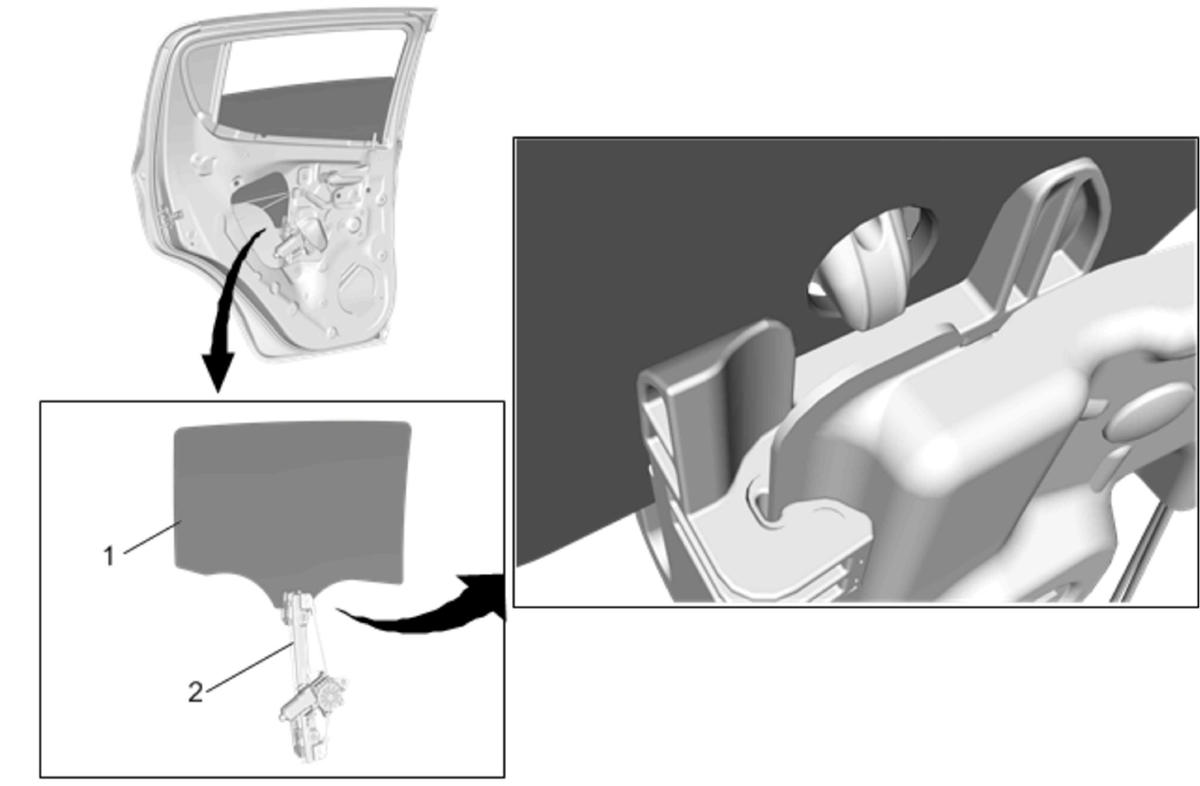

Insert the rear side door window to the rear side door and install the window (1) to the regulator (2).

Fig 1: Rear Side Door Window And Regulator
Courtesy of GENERAL MOTORS COMPANY

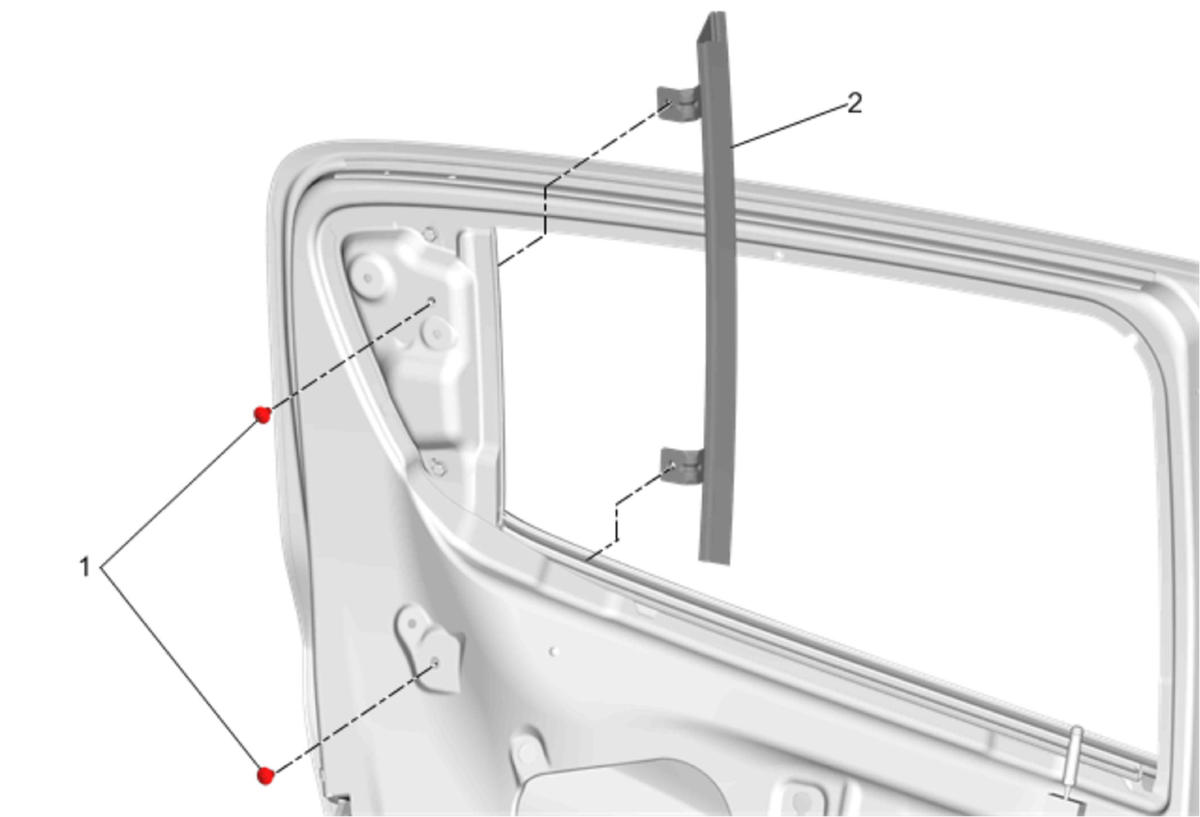

Install the rear side door window channel screw (1) and the rear side door window channel (2). Refer to Rear Side Door Window Channel Replacement .

Fig 2: Rear Side Door Window Channel And Screws
Courtesy of GENERAL MOTORS COMPANY

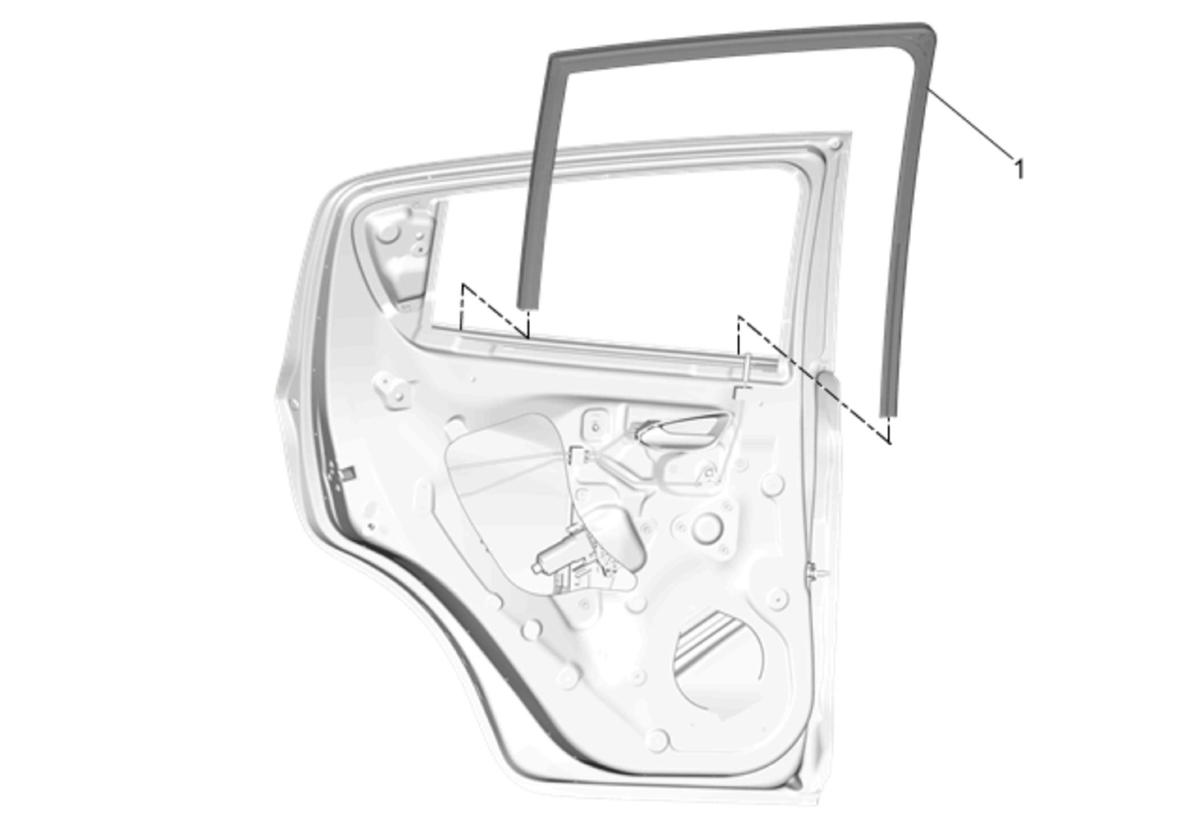

Install the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .

Fig 3: Rear Side Door Window Weatherstrip
Courtesy of GENERAL MOTORS COMPANY

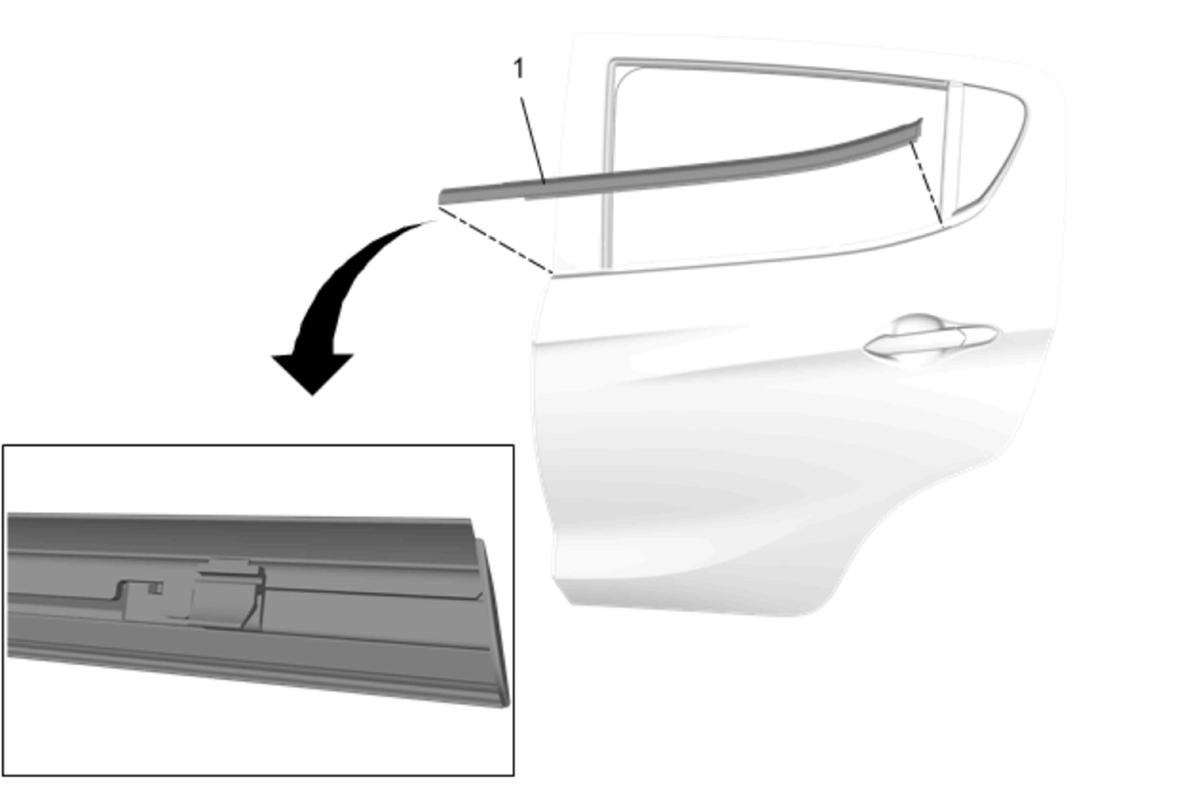

Install the rear side door window belt reveal molding (1). Refer to Rear Side Door Window Belt Reveal Molding Replacement .

Fig 4: Rear Side Door Window Belt Reveal Molding
Courtesy of GENERAL MOTORS COMPANY

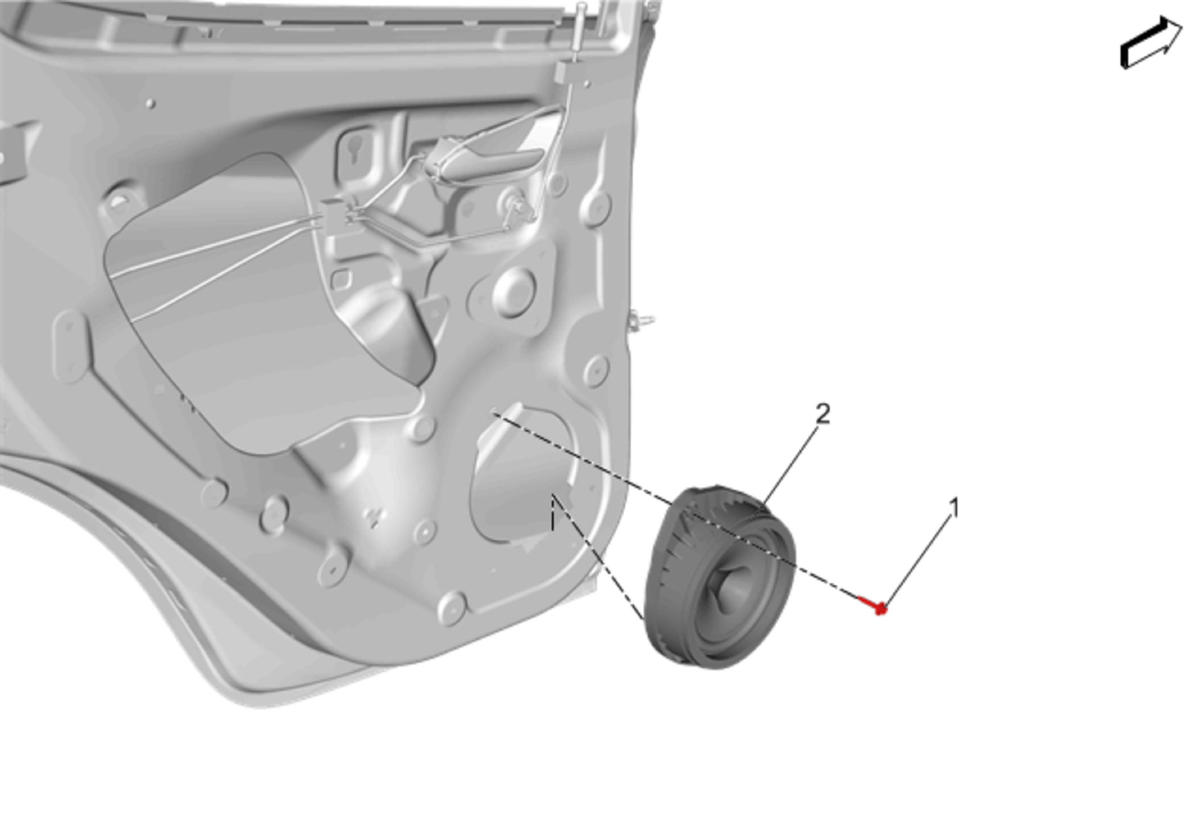

Install the radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement .

Fig 5: Radio Rear Side Door Speaker
Courtesy of GENERAL MOTORS COMPANY
Install the rear side door locking rod bellcrank rod (2) and locking rod (3). Refer to Rear Side Door Locking Rod Bellcrank Rod Replacement .

Fig 6: Rear Side Door Locking Rod Bellcrank Rod And Locking Rod
Courtesy of GENERAL MOTORS COMPANY

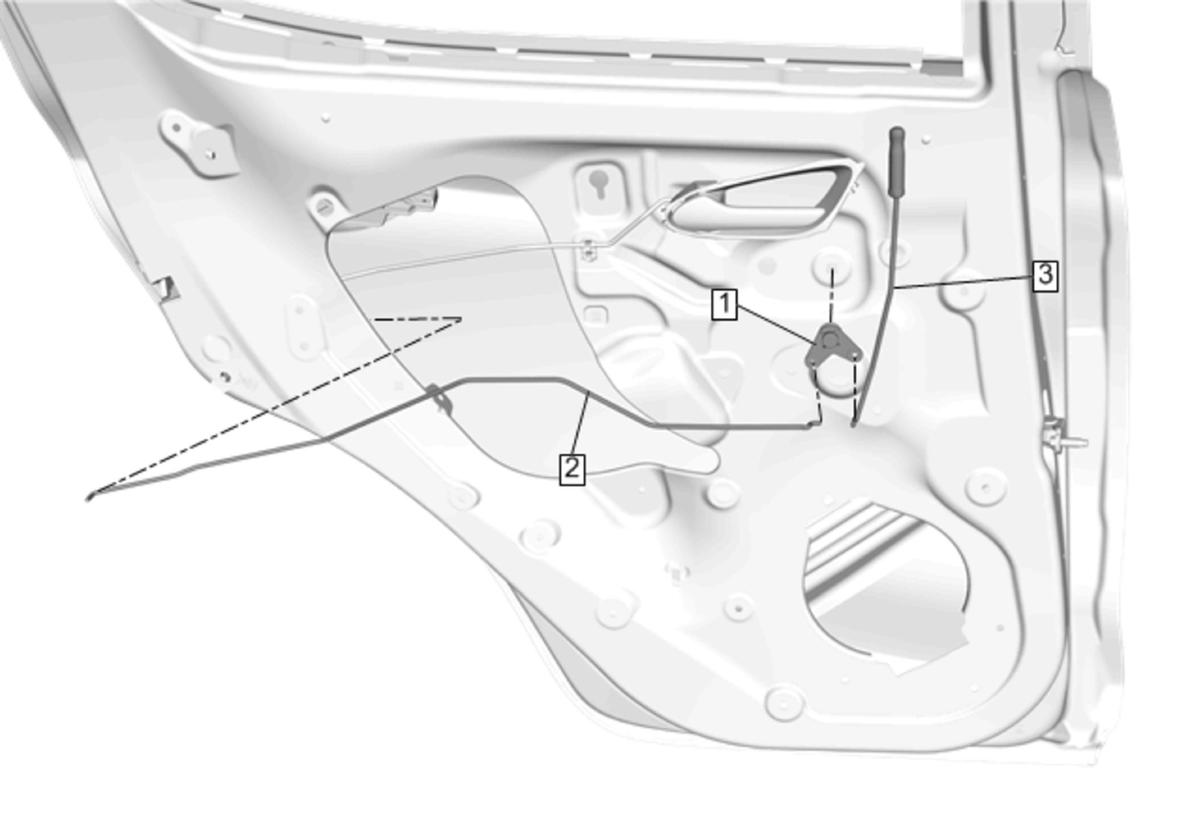

Remove the rear side door inside handle rod (1). Refer to Rear Side Door Inside Handle Rod Replacement .

Fig 7: Rear Side Door Inside Handle Rod
Courtesy of GENERAL MOTORS COMPANY

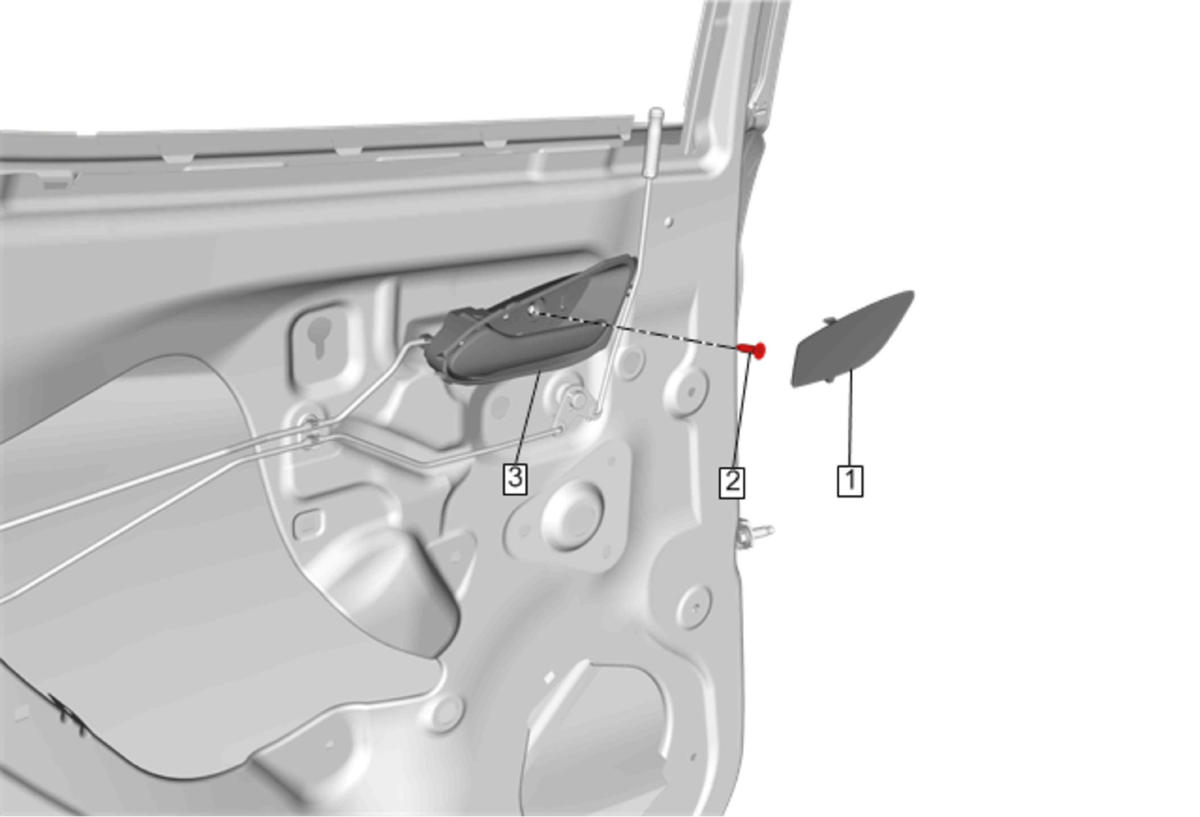

Install the rear side door inside handle (3). Refer to Rear Side Door Inside Handle Replacement .

Fig 8: Rear Side Door Inside Handle
Courtesy of GENERAL MOTORS COMPANY
Install the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Install the rear side door trim. Refer to Rear Side Door Trim Replacement .
Inspect the door window for proper operation before installing the door trim.
Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .
