Front Side Door Window Regulator Motor Replacement

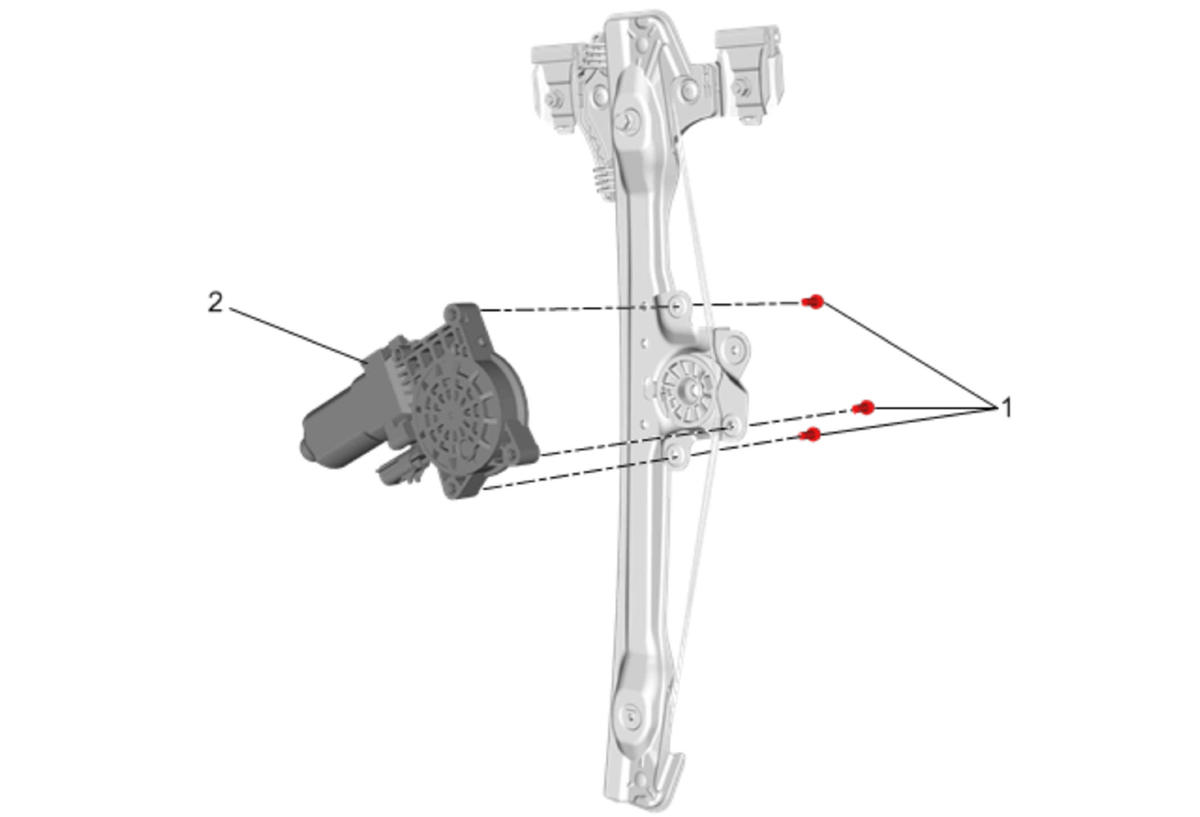

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement (Manual) Front Side Door Window Regulator Replacement (Power) .
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Front Side Door Window Regulator Motor Procedure Inspect the door window for proper operation before installing the door trim. Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .

Callout

Component Name

WARNING: Refer to Glass and Sheet Metal Handling Warning .

Front Side Door Window Regulator Motor Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Front Side Door Window Regulator Motor

Procedure

Inspect the door window for proper operation before installing the door trim.
Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .
