Outside Rearview Mirror Replacement

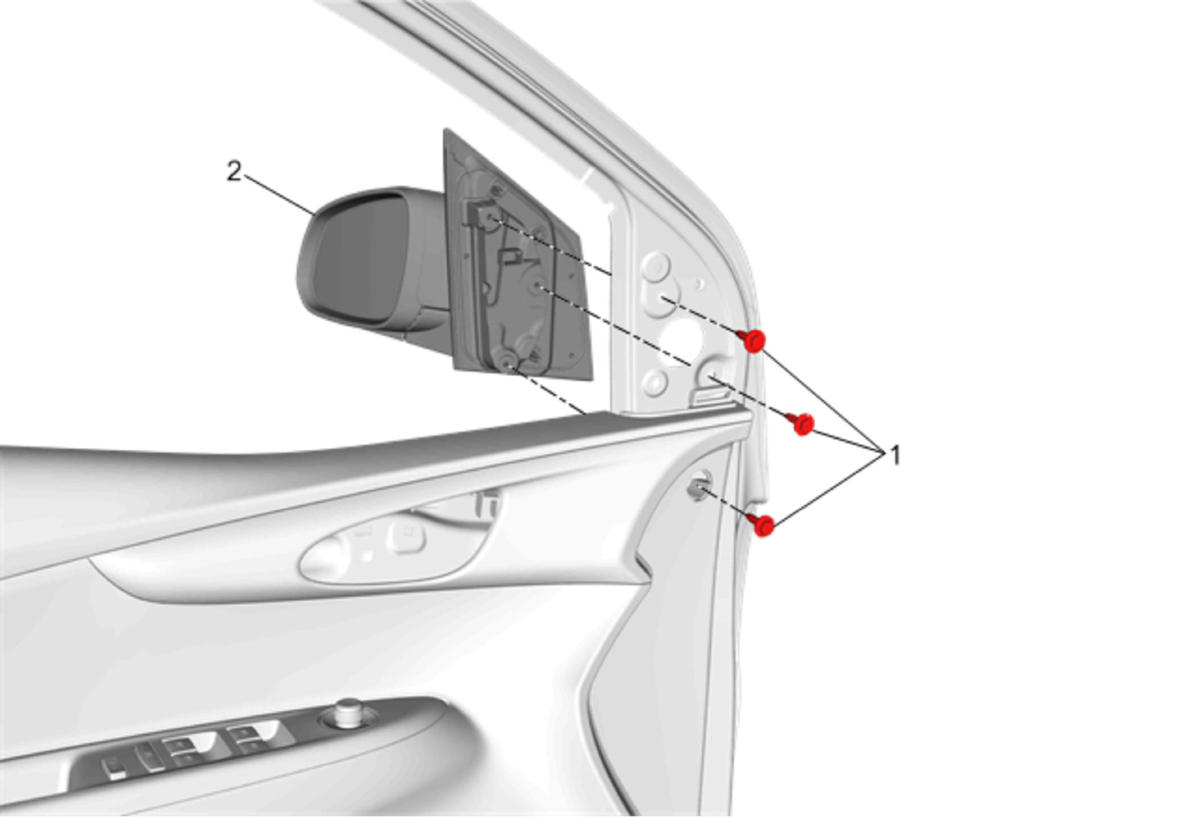

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door upper trim panel. Refer to Front Side Door Upper Trim Panel Replacement . Remove the outside rearview mirror bolt access hole cover on the front side door trim.
1	Outside Rearview Mirror Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure Inspect the outside mirror for proper operation before installing the front side door upper trim panel.

Callout

Component Name

Preliminary Procedures

Remove the front side door upper trim panel. Refer to Front Side Door Upper Trim Panel Replacement .
Remove the outside rearview mirror bolt access hole cover on the front side door trim.

Outside Rearview Mirror Fastener (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure
Disconnect the electrical connector.
Tighten
9 N.m (80 lb in)

Outside Rearview Mirror
Procedure
Inspect the outside mirror for proper operation before installing the front side door upper trim panel.
