Radio Replacement

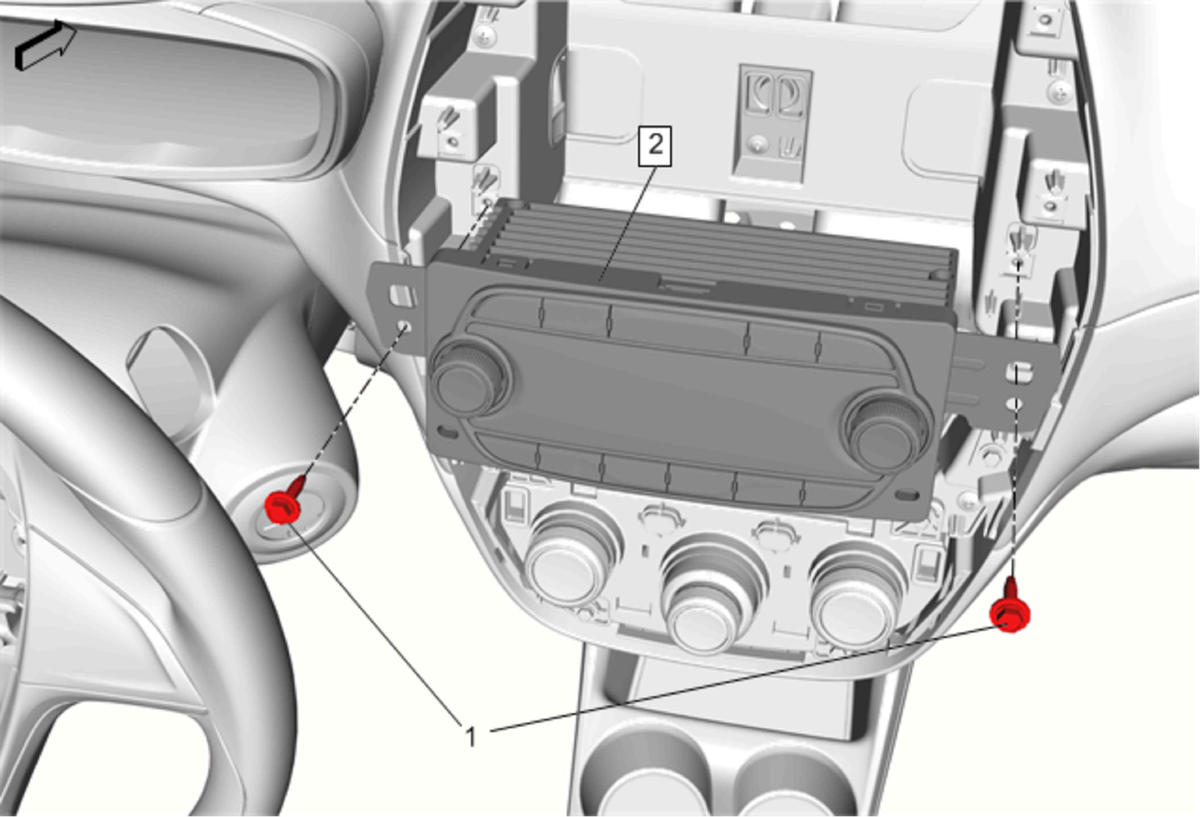

Fig 1: Radio

GM4115199

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

WARNING:

Refer to Battery Disconnect Warning .

Preliminary Procedures

Disconnect the battery negative cable.
Remove the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement .

1

Radio Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (23 lb in)

2

Radio Assembly

Procedure

Disconnect the electrical components.
After replacement, refer to Control Module References for programming and setup information.
